5.3.1.10 Preset Multiple Registers (Function code 0x10):
This function writes values in a number of output words (also ”Output register”). With a broadcast transmission the values are written in all slaves. The maximum register number per frame is 128.
Inquiry:
яюэьыъщэш The first point is addressed with 0. The Modicon address starts with 1 (0x01).
The inquiry message determines the registers to be set. The data is sent as 2 bytes per register.
The example shows how data is set in the two registers 0 and 1 in slave 11:
Field name |
Example |
RTU |
ASCII |
|
|
Start of frame |
- |
t1-t2-t3 |
”:” |
0x3a |
|
Slave address |
0x0B |
0x0B |
”0B” |
0x30, 0x42 |
|
Function code |
0x10 |
0x10 |
”10” |
0x31, 0x30 |
|
Starting address high |
0x00 |
0x00 |
”00” |
0x30, 0x30 |
|
Starting address low |
0x00 |
0x00 |
”00” |
0x30, 0x30 |
|
Number of register high |
0x00 |
0x00 |
”00” |
0x30, 0x30 |
|
Number of register low |
0x02 |
0x02 |
”02” |
0x30, 0x32 |
|
Byte Counter |
0x04 |
0x04 |
”04” |
0x30, 0x34 |
|
Data high |
(register 0) |
0x12 |
0x12 |
”12” |
0x31, 0x32 |
Data low |
(register 0) |
0x34 |
0x34 |
”34” |
0x33, 0x34 |
Data high |
(register 1) |
0x56 |
0x56 |
”56” |
0x35, 0x36 |
Data low |
(register 1) |
0x78 |
0x78 |
”78” |
0x37, 0x38 |
Error Check (LRC / CRC) |
- |
0xA9 |
”CB” |
0x43, 0x42 |
|
|
|
|
0x43 |
|
|
End of frame |
|
t1-t2-t3 |
- |
0xD, 0xA |
|
Table 5.46: Example inquiry, Preset Multiple Registers
Reply:
The reply returns the slave address, the function code, the start address and the number of the set register.
Field name |
Example |
RTU |
ASCII |
|
Start of frame |
- |
t1-t2-t3 |
”:” |
0x3a |
Slave address |
0x0B |
0x0B |
”0B” |
0x30, 0x42 |
Function code |
0x10 |
0x10 |
”10” |
0x31, 0x30 |
Starting address high |
0x00 |
0x00 |
”00” |
0x30, 0x30 |
Starting address low |
0x00 |
0x00 |
”00” |
0x30, 0x30 |
Number of register high |
0x00 |
0x00 |
”00” |
0x30, 0x30 |
Number of register low |
0x02 |
0x02 |
”02” |
0x30, 0x32 |
Error Check (LRC / CRC) |
- |
0x41 |
”E3” |
0x45, 0x33 |
|
|
0x62 |
|
|
End of frame |
|
t1-t2-t3 |
- |
0xD, 0xA |
Table 5.47: Example reply, Preset Multiple Registers
MODBUS / Configuration |
65 |
15.12.99
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
5.3.2 Watchdog - Fieldbus failure |
|
|
|
|
|
|
|
The watchdog serves for monitoring the data transfer between the higher ranking |
|
|
яюэьыъщэш |
|
|||||
|
|
controls and coupler/controller. For this the higher ranking controls cyclically actuate a |
|||||
|
|
|
|
|
|
||
|
|
|
|
|
|
time function (Time-out) in the coupler/controller. In the case of fault free |
|
|
|
|
|
|
|
communication this time cannot reach its end value, because prior to this it is restarted |
|
|
|
|
|
|
|
again and again. If this time has elapsed a fieldbus failure has occurred. |
|
|
|
|
|
|
|
The watchdog must be switched on so that it can be activated (see ‘coupler/settings’ or |
|
|
|
|
|
|
|
‘Controller/settings’). |
|
|
|
|
|
|
|
In the coupler/controller special registers are present for the selection and status inquiry |
|
|
|
|
|
|
|
of the watchdog by the higher ranking controls (Register addresses 0x1000 to 0x1008). |
|
|
|
|
|
|
|
After switching on the supply voltage the watchdog is not yet activated. First lay down |
|
|
|
|
|
|
|
the time-out value (Register 0x1000). The watchdog can be activated by writing a |
|
|
|
|
|
|
|
function code in the mask register (0x1001), which is unequal 0. A second activation |
|
|
|
|
|
|
|
possibility is to write a value in the toggle register (0x1003) deviating from 0. |
|
|
|
|
|
|
|
Reading the minimum trigger time (Register 0x1004) reveals whether the watchdog |
|
|
|
|
|
|
|
fault reaction was activated. If this time value is 0, a fieldbus failure is assumed. The |
|
|
|
|
|
|
|
watchdog can be restarted in accordance with the previously mentioned two possibilities |
|
|
|
|
|
|
|
or using the register 0x1007. |
|
If the watchdog is started once it can only be stopped by the user for safety reasons via a certain path (register 0x1005 or 0x1008).
66 |
MODBUS / Configuration |
15.12.99
Watchdog register:
The table below shows the registers for the Watchdog/Supervisor function.
|
Register |
Designation |
Access |
Length |
Default |
Description |
|
|
|
|
|
|
address |
|
|
|
|
||||||
|
|
|
(word) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0 x 1000 |
Watchdog/ |
read/ |
1 |
pu/co |
This register saves the value for time exceeded |
|||||
|
|
Supervisor |
write |
|
0x0000 |
(Time-out). To be able to start the watchdog default |
|||||
|
|
time |
|
|
|
value must have a value which is not equal to zero. |
|||||
|
|
WD_TIME |
|
|
|
The time is set as a multiple of 100 ms, 0x0009 |
|||||
|
|
|
|
|
|
means a time out time of 0.9 s. This value cannot be |
|||||
|
|
|
|
|
|
changed when the watchdog is running. |
|
||||
|
|
|
|
|
|
|
|||||
|
0 x 1001 |
Watchdog/ |
read/ |
1 |
pu/co |
Using this mask the function codes can be set to |
|||||
|
|
Supervisor |
write |
|
0x0000 |
trigger the watchdog function. The function code can |
|||||
|
|
Coding mask, |
|
|
|
be |
selected |
via |
a |
‘1’ |
to |
|
|
Function code 1...16, |
|
|
|
( = 2(Function code-1)+ ....) |
|
|
|
|
|
|
|
WDFCM_1_16 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Bit 1001.0 corresponds to function code1, |
|
||||
|
|
|
|
|
|
Bit 1001.1 corresponds to function code2... |
|
||||
|
|
|
|
|
|
The watchdog function is started if a value is not |
|||||
|
|
|
|
|
|
equal to zero. If only codes from non-supported |
|||||
|
|
|
|
|
|
functions are entered in the mask the watchdog will |
|||||
|
|
|
|
|
|
not start. An existing fault is reset and writing into the |
|||||
|
|
|
|
|
|
process illustration is possible. Also here changes |
|||||
|
|
|
|
|
|
cannot be made while the watchdog is running. |
|
||||
|
|
|
|
|
|
|
|
||||
|
0 x 1002 |
Watchdog function |
read/ |
1 |
pu/co |
Same function as above, however, |
with the function |
||||
|
|
Coding mask, |
write |
|
0x0000 |
codes 17 to 32. These codes are not supported, for |
|||||
|
|
Function code |
|
|
|
this reason the default value of this register should |
|||||
|
|
17...32, |
|
|
|
not be changed. It is not possible do modify this value |
|||||
|
|
WD_FCM_17_32 |
|
|
|
while the watchdog is running. |
|
|
|
||
|
|
|
|
|
|
|
|||||
|
0 x 1003 |
Watchdog trigger, |
read/ |
1 |
pu/co |
This register is used for an alternative trigger method. |
|||||
|
|
WD_TRIGGER |
write |
|
0x0000 |
The watchdog is triggered by writing different values |
|||||
|
|
|
|
|
|
in this register. Values following each other must |
|||||
|
|
|
|
|
|
differ in size. Writing of a value not equal to zero |
|||||
|
|
|
|
|
|
starts the watchdog. In case of a watchdog fault this |
|||||
|
|
|
|
|
|
register is reset to zero. |
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
0 x 1004 |
Minimal actual trigger |
read/ |
1 |
pu/co |
Using this value the current watchdog status can be |
|||||
|
|
time, |
write |
|
0xFFFF |
read. If the watchdog is triggered the saved value is |
|||||
|
|
WD_AC_TRG_TIME |
|
|
|
compared with the current value. If the current value |
|||||
|
|
|
|
|
|
is smaller than the saved value this is replaced by the |
|||||
|
|
|
|
|
|
current value. The unit is 100 ms/digit. The saved |
|||||
|
|
|
|
|
|
value is changed by writing new values, which does |
|||||
|
|
|
|
|
|
not affect the watchdog. 0x000 is not permissible. |
|
||||
|
|
|
|
|
|
|
|||||
|
0 x 1005 |
Stop watchdog, |
read/ |
1 |
pu/co |
The watchdog is stopped if here the value 0xAAAA is |
|||||
|
|
WD_AC_STOP_MASK |
write |
|
0x0000 |
written first, followed by 0x5555. The watchdog fault |
|||||
|
|
|
|
|
|
reaction is blocked. A watchdog fault is reset and |
|||||
|
|
|
|
|
|
writing on the process data is possible again. |
|
||||
|
|
|
|
|
|
|
|
|
|
||
|
0 x 1006 |
When watchdog is |
read |
1 |
pu |
Current watchdog status. |
|
|
|
||
|
|
running, |
|
|
0x0000 |
at 0x0: Watchdog not active, |
|
|
|
||
|
|
WD_RUNNING |
|
|
|
at 0x1: Watchdog active. |
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
0 x 1007 |
Restart watchdog, |
read/ |
1 |
pu |
Writing 0x1 into the register starts the watchdog |
|||||
|
|
WD_RESTART |
write |
|
0x001 |
again. |
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
0 x 1008 |
Simplified watchdog |
Read/ |
1 |
pu |
The watchdog is stopped by writing the value |
|||||
|
|
stop |
write |
|
0x0000 |
0x0AA55 or 0X55AA (as from V2.5), if it was already |
|||||
|
|
WD_AC_STOP_SIMPLE |
|
|
|
active. The watchdog fault reaction is deactivated. An |
|||||
|
|
|
|
|
|
existing watchdog fault is reset and it is possible to |
|||||
|
|
|
|
|
|
write in the watchdog register again. |
|
|
|||
|
|
|
|
|
|
|
|
||||
|
Table 5.48: Watchdog-Register |
|
|
|
|
pu: Default value when switching voltage on |
|||||
|
|
|
|
|
|
|
co: constant value ROM located |
|
|||
MODBUS / Configuration |
|
67 |
|
|
|
|
|
|
|
||
15.12.99
In all registers the length is 1, i.e. with each access only one word can be written or read.
Examples:
Setting the watchdog for a time overrun of more than 1 s:
1.Write 0x000A (=1000 ms / 100 ms) in the register for time overrun (0x1000).
2.Write 0x0010 (=2(5-1)) in the coding mask (register 0x1001) to start the watchdog.
3.Use the function ‘Force Single Coil’ to trigger the watchdog.
4.Read the register of the minimum current trigger time and compare this with zero to check whether a time overrun has occurred.
Repeat step 3 and Step 4.
Setting a watchdog a time overrun of more than 10 min:
1.Write 0x1770 (=10*60*1000 ms / 100 ms) in the register for time overrun (0x1000).
2.Write 0x0001 in the watchdog trigger register (0x1003) to start the watchdog.
3.Write 0x0001, 0x0000, 0x0001... or a counter value in the watchdog trigger register (0x1003) to trigger the watchdog.
4.Read the register of the minimum current trigger time and compare it with zero to check if a time overrun has occurred.
Repeat step 3 and Step 4.
68 |
MODBUS / Configuration |
15.12.99
Fieldbus failure on the coupler:
The evaluation of the watchdog register is made by the coupler firmware. The internal bus is interrupted. The digital outputs are set to 0 and the analog outputs are set to the minimum value (e.g. with 4...20 mA to 4 mA).
Fieldbus failure on controller:
The evaluation of the watchdog register is made using the function block ‘FBUS_ERROR_INFORMATION’ in the control program. The internal bus remains in function and the process illustrations are retained. The control program can be further processed independently.

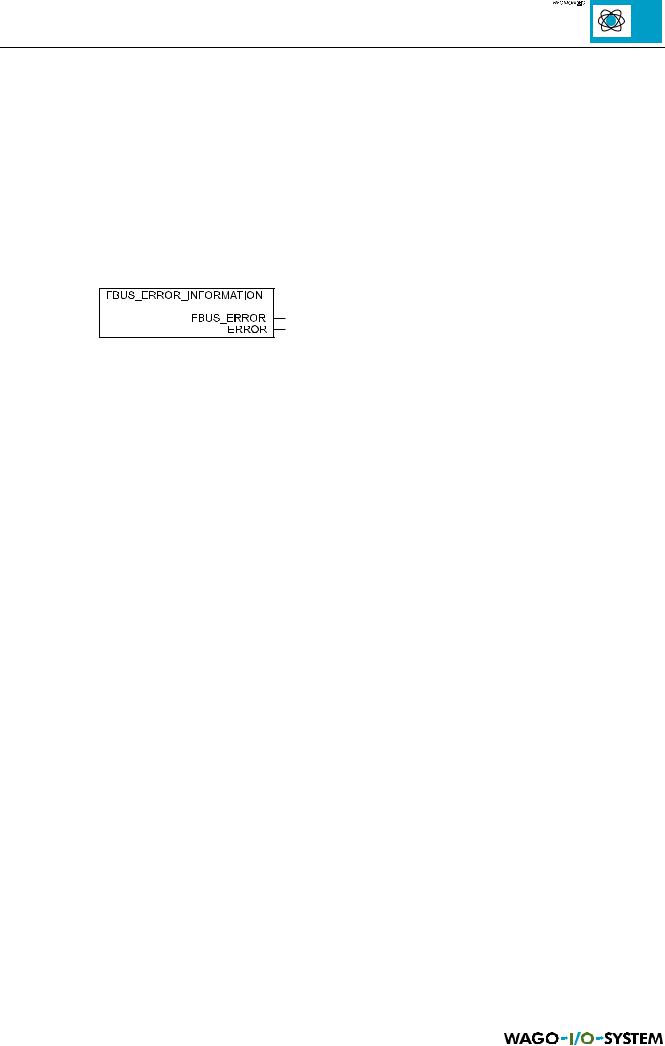

Fig. 5.15:Function block for determining a fieldbus failure
‘FBUS_ERROR’ (BOOL) |
= FALSE = no fault |
|
= TRUE = fieldbus failure |
‘ERROR’ (WORD) |
= 0 = no fault |
|
= 1 = fieldbus failure |
The nodes can set to a safe status in the case of a fieldbus failure using these outputs and a corresponding control program.
MODBUS / Configuration |
69 |
