2.5.9 Wire connection

All components have CAGE CLAMP® connections.

The WAGO CAGE CLAMP® connection is appropriate for solid, stranded and fine–stranded conductors. Each clamping unit accommodates one conductor.

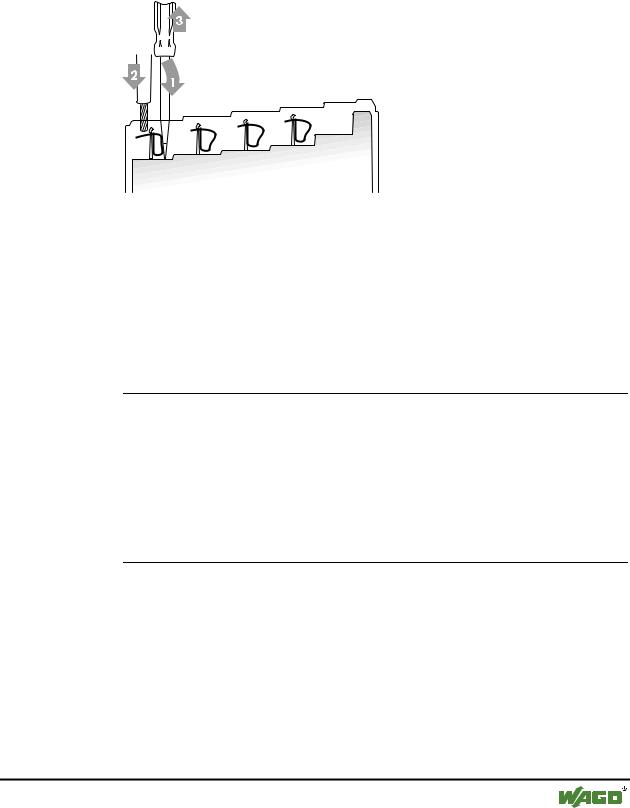

The operating tool is inserted into the opening above the connection. This opens the CAGE CLAMP®. Subsequently the conductor can be inserted into the opening. After removing the operating tool, the conductor is safely clamped.

More than one conductor per connection is not permissible. If several conductors have to be laid at a connection, then they should be laid in off-course wiring; e.g. together with WAGO transfer terminals.

Attention

If it is unavoidable to jointly connect 2 conductors, then a ferrule must be used.

Ferrule: Length

Nominal cross sectionmax.

WAGO Product

WAGO-I/O-SYSTEM 750

DeviceNet

22• The WAGO-I/O-SYSTEM 750

Power Supply

2.6 Power Supply

2.6.1 Isolation

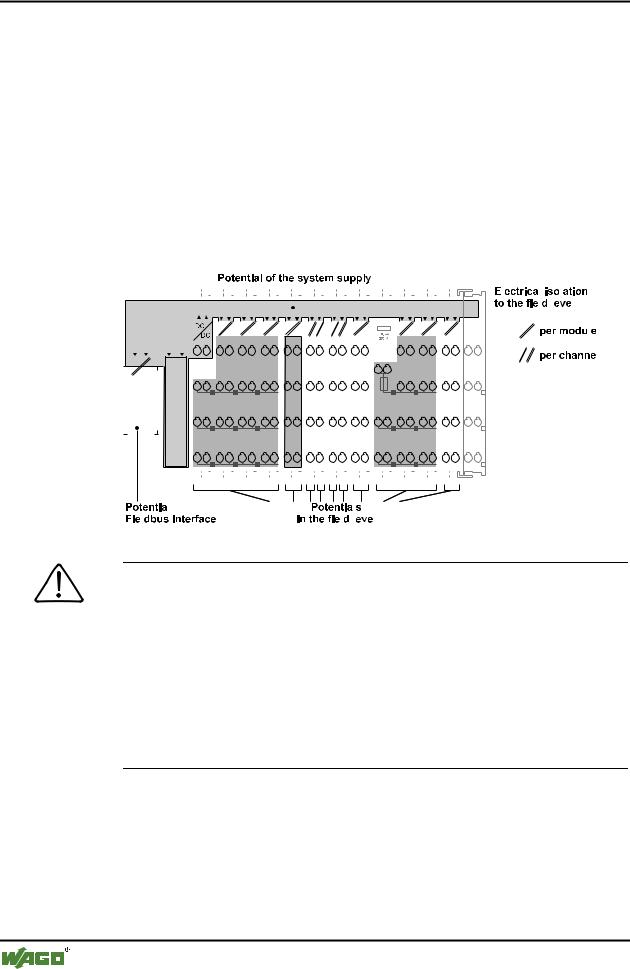

Within the fieldbus node, there are three electrically isolated potentials.

•Operational voltage for the fieldbus interface.

•Electronics of the couplers / controllers and the bus modules (internal bus).

•All bus modules have an electrical isolation between the electronics (internal bus, logic) and the field electronics. Some analogue input modules have each channel electrically isolated, please see catalogue.

Attention

The ground wire connection must be existent in each group. In order that all protective conductor functions are maintained under all circumstances, it is sensible to lay the connection at the beginning and end of a potential group. (ring format, please see chapter "2.7.3"). Thus, if a bus module comes loose from a composite during servicing, then the protective conductor connection is still guaranteed for all connected field devices.

When using a joint power supply unit for the 24 V system supply and the 24 V field supply, the electrical isolation between the internal bus and the field level is disregarded for the potential group.

WAGO-I/O-SYSTEM 750

DeviceNet

2.6.2 System Supply

2.6.2.1 Connection

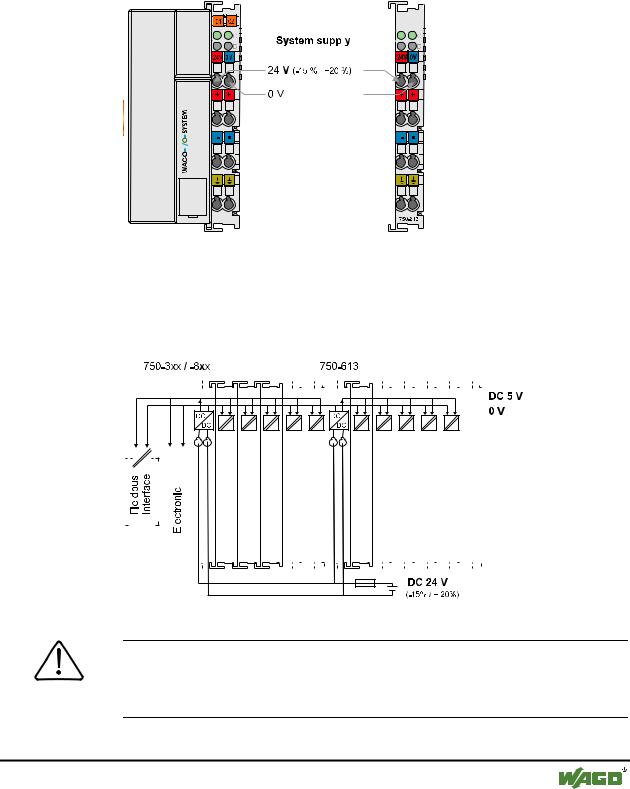

The WAGO-I/O-SYSTEM 750 requires a 24 V direct current system supply (-15% or +20 %). The power supply is provided via the coupler / controller and, if necessary, in addition via the internal system supply modules (750-613). The voltage supply is reverse voltage protected.

The direct current supplies all internal system components, e.g. coupler/controller electronics, fieldbus interface and bus modules via the internal bus (5 V system voltage). The 5 V system voltage is electrically connected to the 24 V system supply.

Attention

Resetting the system by switching on and off the system supply, must take place simultaneously for all supply modules (coupler / controller and 750-613).

WAGO-I/O-SYSTEM 750

DeviceNet

24• The WAGO-I/O-SYSTEM 750

Power Supply

2.6.2.2 Alignment

Recommendation

A stable network supply cannot be taken for granted always and everywhere. Therefore, regulated power supply units should be used in order to guarantee the quality of the supply voltage.

The supply capacity of the coupler/controller or the internal system supply module (750-613) can be taken from the technical data of the components.

Internal current consumption*) Current consumption via system voltage:

5 V for electronics of the bus modules and coupler / controller

Residual current for bus termi- Available current for the bus modules. Provided by nals*) the bus power supply unit. See coupler / controller

and internal system supply module (750-613)

*) cf. catalogue W3 Volume 3, manuals or Internet

The internal current consumption is indicated in the technical data for each bus terminal. In order to determine the overall requirement, add together the values of all bus modules in the node.

Attention

If the sum of the internal current consumption exceeds the residual current for bus modules, then an internal system supply module (750-613) must be placed before the module where the permissible residual current was exceeded.

Example: A node with a PROFIBUS Coupler 750-333 consists of 20 relay modules (750-517) and 20 digital input modules (750-405).

Current consumption: 20*105 mA = 2100 mA

The coupler can provide 1800 mA for the bus modules. Consequently, an internal system supply module (750-613), e.g. in the middle of the node, should be planned.

Recommendation

With the WAGO ProServe® Software smartDESIGNER, the assembly of a fieldbus node can be configured. The configuration can be tested via the integrated plausibility check.

WAGO-I/O-SYSTEM 750

DeviceNet

The maximum input current of the 24 V system supply amounts to 500 mA. The exact electrical consumption (I(24 V)) can be determined with the following formulas:

Note

If the electrical consumption of the power supply point for the 24 V-system supply exceeds 500 mA, then the cause may be an improperly aligned node or a defect.

During the test, all outputs, in particular those of the relay modules, must be active.

WAGO-I/O-SYSTEM 750

DeviceNet
