146 • Application in Explosive Environments

Identification

6.5Identification

6.5.1For Europe

According to CENELEC and IEC

Explosion protection group

Unit category

Community symbol for explosion protected electrical components

II 3 G



KEMA 01ATEX1024 X



EEx nA II T4

Temperature class

Approval body and/or number of the examination certificate

Explosion protection group

E = conforming with European standards Ex = explosion protected component

n = Type of ignition

Extended identification

ITEM-NO.:750-400

24V DC AWG 28-14 55°C max ambient

CL I DIV 2 Grp. A B C D op temp code T4A

LISTED 22ZA AND 22XM

-02----03

4246

1-

2

210



Hansastr. 27

2DI 24V DC 3.0ms



D-32423 Minden

0.08-2.5mm2

0V 24V DI1

Di2

PATENTS PENDING

II 3 G

KEMA 01ATEX1024 X EEx nA II T4

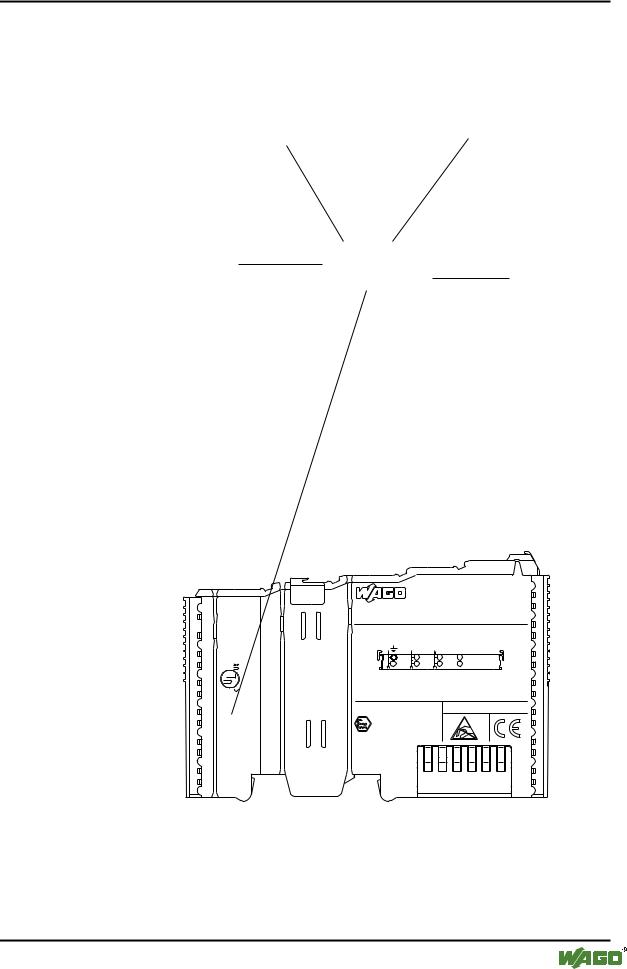

Fig. 6-1: Example for lateral labeling of bus modules



(750-400, 2 channel digital input module 24 V DC)

g01xx03e

WAGO-I/O-SYSTEM 750

DeviceNet

Application in Explosive Environments • 147

Identification

6.5.2 For America

According to NEC 500

Explosion protection group

Area of application (zone)

(condition of use category)



Explosion group

CL I DIV 2



Grp. ABCD



(gas group)



optemp code T4A

Temperature class



24V DC AWG 28-14 55°C max ambient

CL I DIV 2 Grp. A B C D op temp code T4A

LISTED 22ZA AND 22XM

-02----03

4246

0-

2

410





ITEM-NO.:750-400

Hansastr. 27

2DI 24V DC 3.0ms



D-32423 Minden

0.08-2.5mm2

0V 24V DI1

Di2

PATENTS PENDING

II 3 G

KEMA 01ATEX1024 X EEx nA II T4

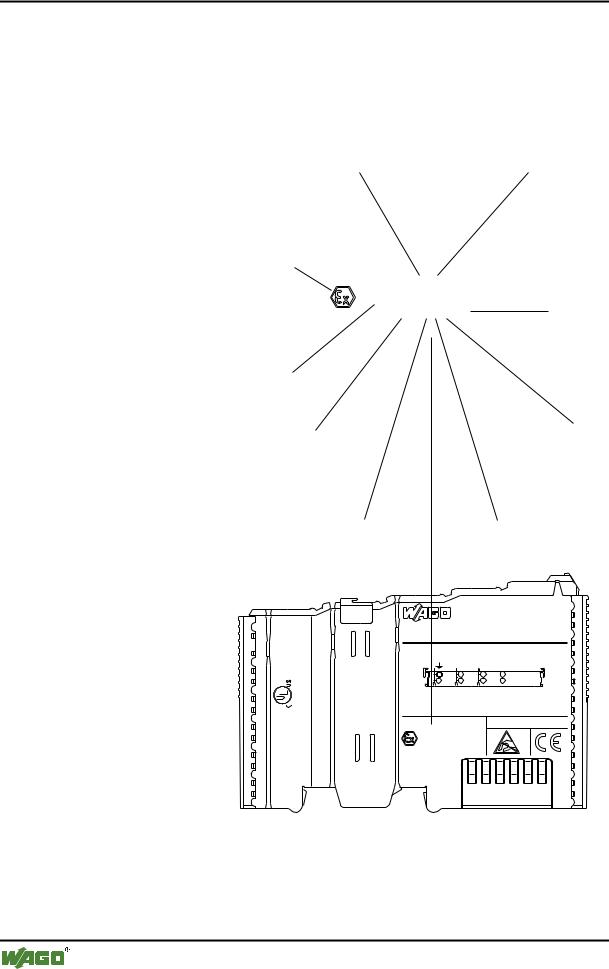

Fig. 6-2: Example for lateral labeling of bus modules



(750-400, 2 channel digital input module 24 V DC)

g01xx04e

WAGO-I/O-SYSTEM 750

DeviceNet

148 • Application in Explosive Environments

Installation Regulations

6.6 Installation Regulations

In the Federal Republic of Germany, various national regulations for the installation in explosive areas must be taken into consideration. The basis being the ElexV complemented by the installation regulation DIN VDE 0165/2.91. The following are excerpts from additional VDE regulations:

DIN VDE 0100 Installation in power plants with rated voltages up to 1000 V

DIN VDE 0101 Installation in power plants with rated voltages above 1 kV

DIN VDE 0800 Installation and operation in telecommunication plants including information processing equipment

DIN VDE 0185 lightning protection systems

The USA and Canada have their own regulations. The following are excerpts from these regulations:

NFPA 70

National Electrical Code Art. 500 Hazardous Locations





ANSI/ISA-RP

Recommended Practice

12.6-1987







C22.1

Canadian Electrical Code





Danger

For the use of WAGO-I/O SYSTEM 750 (electrical operating means) with Ex approval the observance of the following points is mandatory:

•The electrical operating means are exclusively suitable for applications in explosion endangered areas (Europe Group II, Zone 2 or America: Class I, Division 2, Group A, B, C, D) or in non-explosion endangered areas!

•Ensure that only approved modules of the electrical operating means will be used. Replacement of components can jeopardize the suitability of the system in explosion endangered zones!

•Only disconnect and/or connect electrical operating means when the voltage supply is isolated or when a non-explosive atmosphere has been ascertained!

•Adhere to the specified data regarding voltage supply and fusing. (See data on the fuse holder)!

WAGO-I/O-SYSTEM 750

DeviceNet

Application in Explosive Environments • 149

Installation Regulations

Further Information

Proof of certification is available on request.

Also take note of the information given on the module technical information sheet.

WAGO-I/O-SYSTEM 750

DeviceNet

150 • Glossary

7 Glossary

Bit

Smallest information unit. Its value can either be 1 or



0.

Bitrate

Number of bits transmitted within a time unit.

Bootstrap

Operating mode of the fieldbus Coupler / Controllers.



Device expects a firmware upload.

Bus

A structure used to transmit data. There are two



types, serial and parallel. A serial bus transmits data



bit by bit, whereas a parallel bus transmits many bits



at one time.

Byte

Binary Yoked Transfer Element. A byte generally



contains 8 bits.

Data bus

see Bus.

Fieldbus

System for serial information transmission between



devices of automation technology in the process-



related field area.

Hardware

Operating system

Segment

Electronic, electrical and mechanic components of a module/subassembly.

Software which links the application programs to the hardware.

Typically, a network is divided up into different physical network segments by way of routers or repeaters.

Server

Device providing services within a client/server sys-



tem. The service is requested by the Client.

Subnet

A portion of a network that shares the same network



address as the other portions. These subnets are dis-



tinguished through the subnet mask.

WAGO-I/O-SYSTEM 750

DeviceNet
