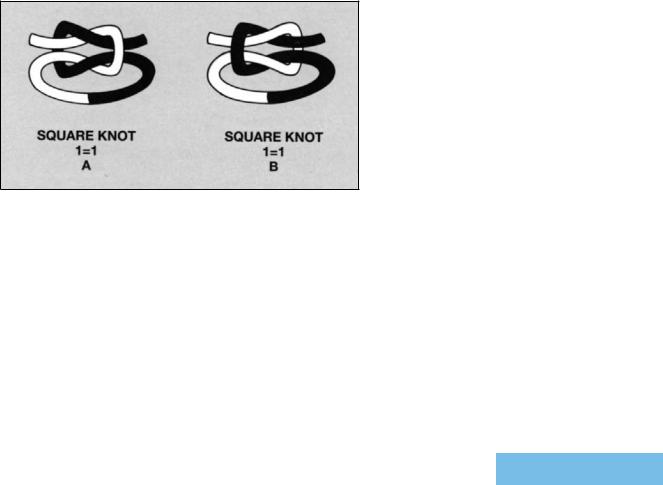

Figure 8. Square knot (1=1) (A) is formed by first passing the free suture end up through the suture loop to create the first throw. The second throw is formed by passing the free suture end down through the suture loop. Square knot (1=1) (B)

is formed by passing the free suture end down through the suture loop to create the first throw. The second throw is formed by passing the free suture end up through the suture loop.

During surgery, knot construction involves two distinct steps. The purpose of the first step is to secure precise approximation of the wound edges by advancing either a one-throw or a two-throw knot to the wound surface. Once the throw or throws contact the wound, the surgeon will have a preview of the ultimate apposition of the wound edges. Ideally, the knotted suture loop should reapproximate the divided wound edges without strangulating the tissue encircled by the suture loop. If there is some separation of the wound edges, the onethrow or two-throw knot can be advanced to reduce the size of the suture loop and thereby bring the wound edges closer together.

When the surgeon forms a double-wrap throw, the first throw of the surgeon’s knot square (2=1) can maintain apposition of the wound edged by “locking” or temporarily securing it in place by reversing the direction of pull on its “ears.” The “locked” double throw is not

37

VI. tying techniques (cont’d)

a reliable means of maintaining wound apposition because any tension applied to the “ears” from the patient’s side of the knot will unlock the knot. The addition of the second throw to the surgeon’s knot square (2=1) will provide additional resistance to wound disruption, but this knot will not advance by slippage, limiting the surgeon’s ability to secure meticulous coaptation of the wound edges.24

In contrast, two-throw square (1=1) or granny (1x1) knots can be advanced to the wound surface to secure precise wound edge apposition. These two-throw square (1=1) or granny (1x1) knots can be easily converted into their respective slip knots by applying tension to only one “ear” in a direction that is perpendicular to that of the tissue surface. Square (S=S) or granny (SxS) slip knots require lower knot rundown force for knot advancement than either the square (1=1) or granny (1x1) knots, but will never reach knot security even with 5 throws. 9 The risk of tying slip knots can be obviated by applying tensions to both “ears” in horizontal planes parallel to the tissue surface. The second step in knot construction is the addition of a sufficient number of throws to the knot so that it does not fail by slippage. The magnitude of knot breakage force is always greater than that for knot slippage force of a comparable suture, ensuring optimal protection against wound dehiscence. The magnitude of knot breakage force is significantly influenced by the rate of application of forces to the

knot. When constant force is applied slowly to the knot “ears,” the knot breakage force is significantly greater than that for knots in which the same constant force is applied rapidly to the “ears.”

38

instrument tie

Knot construction can be accomplished by either an instrument or hand tie. An instrument tie occurs by the formation of suture loop over an instrument, usually a needle holder. The right hand holds the needle holder, while the left hand loops the fixed suture end around the instrument. The position of the instrument in relation to the suture ends during knot construction will determine the type of knot. When the instrument is placed above the fixed suture end during the first and second throws, a square-type knot will develop. In contrast, a granny-type knot will first result when the instrument is placed above the fixed suture end for the first throw and then below the fixed suture end for the second throw. By repeating this positioning, the instrument tie is a reliable and easy method to produce multiple throw granny knots (1x1x1), a circumstance not encountered in hand ties. Granny knots with more than two throws cannot be constructed by either the one-hand or two-hand technique, without releasing hold of both suture ends.

Instrument tying is accomplished primarily by the surgeon’s left hand, which holds the fixed suture end. Initially the length of the fixed suture end held by the left hand is long (17 in.), making it difficult to form knots without injuring the attending assistant. This assault can be avoided by shortening the length of the fixed suture end held by the left hand. Preferably, the fixed suture end should be coiled into loops, which are held between the tips of the thumb and index finger.

39

instrument tie

(cont’d)

This maneuver is accomplished by first grasping the fixed suture end with the small and ring fingers, while it is being pinched between the tips of the index finger and thumb. By pronating the wrist, a loop forms around the grasped fingers, and the top of the loop must again be grasped between the tips of the thumb and index fingers. The small and ring fingers are then withdrawn from the loop before coiling more suture. The rasped suture can be easily lengthened by releasing the coils held between the tips of the thumb and index finger.

When tying knots with an instrument, it is difficult to apply continuous tension to the suture ends. Consequently, widening of the suture loop due to slippage is frequently encountered in wounds subjected to strong tension. This technique, however, is ideally suited for closing a wound which is subjected to weak tensions. In this circumstance, instrument ties can be accomplished more rapidly and accurately than hand ties, while conserving considerably more suture. By using this technique, the parsimonious surgeon can complete 10 interrupted suture loops from one suture measuring 18 inches in length. This feat would be impossible if the knots had been tied by hand.

The value of instrument ties has become readily apparent in special situations in which hand ties are impractical or impossible. In microsurgical procedures, an instrument tie provides the most reliable and easiest method of knot construction. When employing suture in the recesses of the body (e.g. mouth, vagina, etc.) or during endoscopic surgery, instruments can also form knots in sites to which the hand could never gain access.
