Technical Data:

Series 750

Encoder connections

Current consumption (internal)

Power supply

Sensor power supply

Baud rate

Data field width

Signal output (clock)

Signal input (positional)

Output data format

Bit width

Configuration

Signal isolation

Temperature range

Wire connection

Dimensions (mm) WxHxL

Default Configuration

































































630

630/000-001

630/000-006



Data Input: D+; D-; Clock Output: CI+; CI-

85mA typ.

24V DC (-15%/+20%)

24V DC via power jumper contacts

max. 1 MHz

32 Bit

differential RS 422

differential RS 422

Graycode / Dualcode

32 Bit: Data; 8 Bit: Control/Status

none, optional via software parameter

500 V system/power supply

0°C....+55°C

CAGE CLAMP; 0.08 x 2.5mm2

AWG 28-14

12 x 64* x 100 (*from upper edge of carrier rail)

125 kHz

125 kHz

250 kHz

Graycode

Binary

Graycode

24 Bit Data

24 Bit Data

24 Bit Data

Resolution

Resolution

Resolution

SSI encoder 750-630

2

:$*2Ç, 2Ç6<67(0

Terminal Configuration:

Input

Type

Function

Signal D+ and Signal D-

Input, RS422

Positional data from encoder, Graycode.

Signal Cl+ and Signal CL-

Output, RS422

Clock signal output for communications interface.

+24 V DC

Input

24 V DC supply voltage to module, field connection.

0 V DC

Input

0 V DC supply voltage return to module, field





connection.

The use of this module in conjunction with a SSI encoder provides direct positional information rather than the type of data resultant from incremental type encoders. Absolute encoders are comprised of several data disks which generate a data

word which is unique through out the 360 degrees of rotation. The data format is a modified binary pattern in either Graycode or Dualcode.

The resolution of the sensor depends upon the configuration of the sensor and the physical number of revolutions in the motion profile. Since the basis of the encoder is to provide absolute positional information based upon a mechanical configuration limited to one revolution or less. The maximum resolution of this module is 24 bit.

The frequency of the data signal input to the SSI module is maintained at 125 kHz. Listed below are the recommended cable lengths for the various clock signal Baud rates.

Baud rate

100 kHz

200 kHz

300 kHz

400 kHz

Maximum cable length

400 meters

200 meters

100 meters

50 meters

SSI encoder 750-630

3

:$*2Ç, 2Ç6<67(0

Organization of the inand output data for ModBus

The module is seen like an analog input with 2 x 16 Bit input data.

Inputs:

Word

Data Word Designation



D0

(Bit 0-15)

Positional data,

Positional data,





Input byte 1

Input byte 0

D1

(Bit 16-31)

Positional data,

Positional data,





Input byte 3

Input byte 2

SSI encoder 750-630

4

:$*2Ç, 2Ç6<67(0

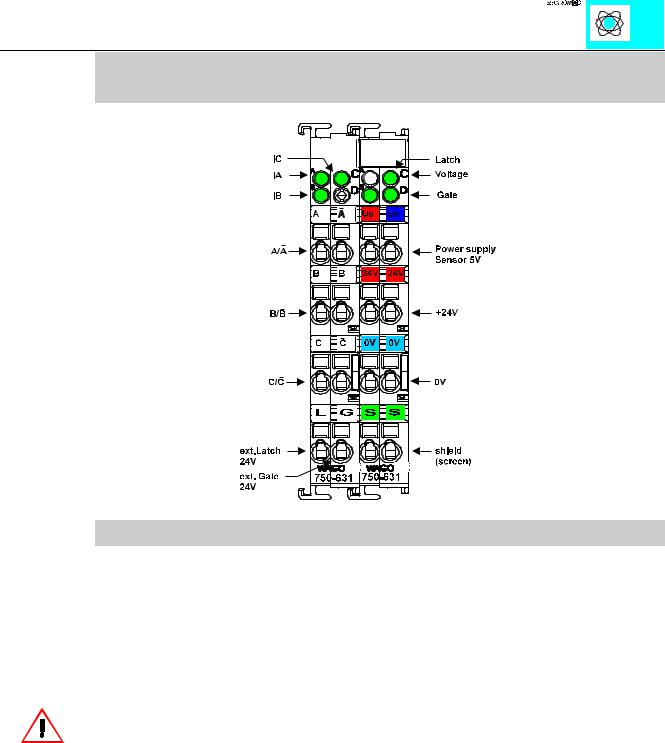

Quadrature Encoder Interface

PN 750-631, 750-631/000-001

Technical Description:

This technical description is only valid for hardware and software versions X X X X 2 B 0 1----. The product series number is printed on the right side of the module.

The described operational mode is 4 times or quadrature sampling.

The following description is preliminary and is applicable to the factory configuration.

Attention:

The lowest power jumper contact is not carried out for some modules (e.g. 4-channel)! A module which needs all contacts (e.g. 2 channel digital) may not be connected to the right hand side of modules which do not have 3 power jumper contacts (e.g. 4 channel modules).

The Quadrature Encoder Interface is able to run with all WAGOÇI/OÇSYSTEM buscouplers (except for the economy type).

Quadrature Encoder 750-631

1

:$*2Ç, 2Ç6<67(0

Technical Data:

Series 750-

Encoder connections

Current consumption (internal)

Sensor supply voltage

Data word

Maximum frequency

Counter modes

Data latch word

Commands

Supply voltage

Current consumption

Sensor

Bit width

Configuration

Operational temperature

Wire connection

Dimensions (mm) WxHxL

Default configuration

























































631

631/000-001





A, A(inv.); B, B(inv.); Index, Index(inv.)

25 mA

5 V DC

16 Bit Binary

1 MHz

1-2-4 times sampling

16 Bit

read, reset, start

24 V DC (-15%/+20%)

85mA Field (without sensor)

0.1 A (without sensor load)

1 x 32 Bit: Data; 8 Bit:Control/Status

none, optional via software parameter

0°C....+55°C

CAGE CLAMP; 0.08 x 2.5mm2

AWG 28-14

24 x 64* x 100 (*from upper edge of the carrier rail)

4 times sampling

1 time sampling

Quadrature Encoder 750-631

2

:$*2Ç, 2Ç6<67(0
