I/O modules • 127

Digital Inputs 750-412

Technical Data:

Item-No.:

Number of inputs

Input filter

Voltage via power jumper contacts

Signal voltage (0)

Signal voltage (1)

Input current (internal)

Input current (field side)

Isolation

Internal bit width

Configuration

Operating temperature

Wire connection

Dimensions (mm) WxHxL

750-412 750-412/000-001

2

3 ms

DC 48 V (-15% / +20%)

-





DC -6 V...+10 V

DC 34 V...60 V

5 mA max.

3.5 mA typ.

500 V System/power supply

2

no address or configuration adjustment

0°C....+55°C

CAGE CLAMP ; 0.08 mm2 - 2.5 mm2, AWG 28 – 14, 8 – 9 mm Stripped length

12 x 64* x 100 (*from upper edge of carrier rail)

Modular I/O System

ETHERNET TCP/IP

128 • I/O modules Digital Inputs 750-414

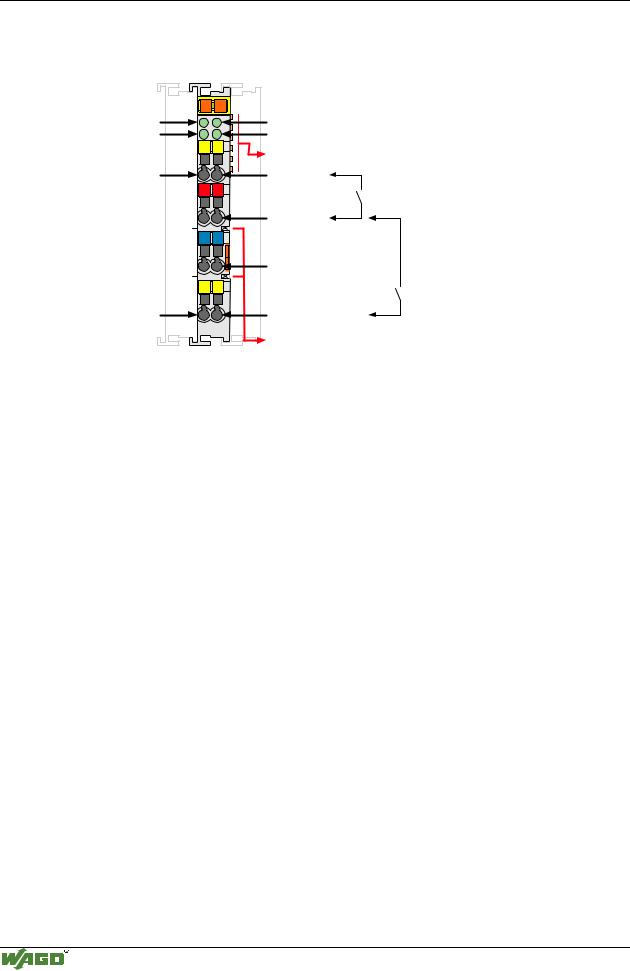

4.2.1.1.14 4 Channel Digital Inputs

(DC 5 V, 0.2 ms)

750-414

Status

13

14

A







DI 1

B

C





DI 3



D



13

14

DI 1







+

+



-

-



15

16

DI 3







750-414

Status

DI 2

DI 4

Data contacts

DI 2

5V

0V

DI 4

Power jumper contacts

Technical description

The power supply is connected to the power jumper contacts on each I/O module for the respective operating voltage. Power connections are made automatically from module to module when snapped onto the DIN rail, with power supplied through a kpower feed module.

The 4-channel digital inputs are suitable for the direct connection of two 3- conductor sensors (V+, 0V, signal). The power distribution module 750-614 is available for the connection of more sensors to V+ and 0V.

RC filters are series-connected for noise rejection and switch debouncing. They are available with time constants of 0.2 ms.

The positions of the different I/O modules in the configured node/station are selectable by the user. A block type configuration is not necessary.

These input module can operate with all buscouplers of the WAGO-I/O-SYSTEM.

Modular I/O System

ETHERNET TCP/IP

I/O modules • 129 Digital Inputs 750-414

Technical Data:

Item-No.:

Number of inputs

Input filter/Conversion time

Voltage via power jumper contacts

Signal voltage (0)

Signal voltage (1)

Input current (internal)

Input current (field side)

Isolation

Internal bit width

Configuration

Operating temperature

Wire connection

Dimensions (mm) WxHxL

414

4

0.2 ms

DC 5 V

DC 0 V...0.8 V

DC 2.4...5 V

5 mA

50 µA typ.

500 V System/power supply

4

no address or configuration adjustment

0°C....+55°C

CAGE CLAMP ; 0.08 mm2 - 2.5 mm2, AWG 28 – 14, 8 – 9 mm Stripped length

12 x 64* x 100 (*from upper edge of carrier rail)

Modular I/O System

ETHERNET TCP/IP

130 • I/O modules

Digital Inputs 750-415

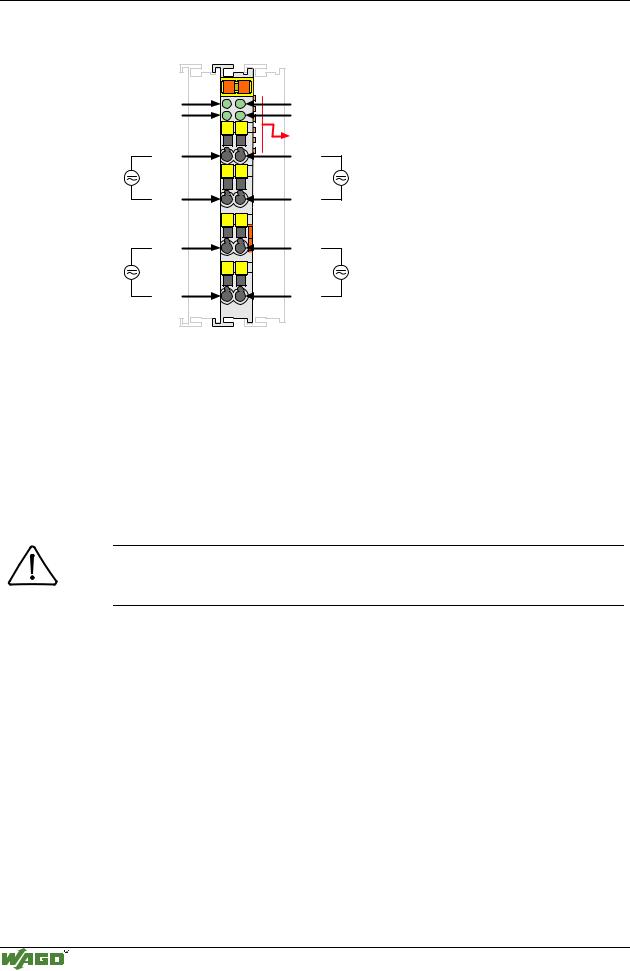

4.2.1.1.154 Channel Digital Inputs (AC/DC 24V, 20 ms) 750-415

Status

13

14

A



DI 1



B

C

DI 3





D



E1

E2

DI 1







E1

E2

DI 1







E3

E4

DI 3







E3

E4

DI 3







750-415

Status

DI 2

DI 4

Data contacts

DI 2

DI 2

DI 4

DI 4

Technical description

The digital input module reads 24V AC/DC values from the field using the differential inputs and transmits, depending on these values, binary control signals to the higher ranking controls via the fieldbus coupler.The 4 channel digital input module is designed for a 2 conductor connection. The input signals are processed via the signal input connections E1 and E1 or E2 and E2, E3 and E3 or E4 and E4.

Warning

The module has no power contacts. For field supply to downstream I/O modules, use a supply module.

RC filters are series-connected for noise rejection and switch debouncing. They are available with time constants of 20 ms.

The positions of the different I/O modules in the configured node/station are selectable by the user. A block type configuration is not necessary.

These input module can operate with all buscouplers of the WAGO-I/O-SYSTEM.

Modular I/O System

ETHERNET TCP/IP

I/O modules • 131

Digital Inputs 750-415

Technical Data:

Item-No.:

Number of inputs

Input filter/Conversion time

Signal voltage (0)

Signal voltage (1)

Input current (internal)

Input current (field side)

Isolation

Internal bit width

Configuration

Operating temperature

Wire connection

Dimensions (mm) WxHxL

750-415

4

20 ms

DC -3 V...+5 V

AC 0 V ... +5 V

DC 11 V ... 30 V

AC 10 V...27 V

10 mA

DC 7.5 mA

AC 9.5 mA

500 V System/power supply

50 V Channel / Channel

4

no address or configuration adjustment

0°C....+55°C

CAGE CLAMP ; 0.08 mm2 - 2.5 mm2, AWG 28 – 14, 8 – 9 mm Stripped length

12 x 64* x 100 (*from upper edge of carrier rail)

Modular I/O System

ETHERNET TCP/IP
