I/O modules • 97 |
|||
|
|
|
|
|
|
Review |
||
|
|
|
|
|
|
|
|
|
|
|
Supply and End modules |
start on page 217 |
|||||
|
|
Item- |
|
|
|
On |
|
|
|
|
No: |
|
Name |
|
page |
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
750-600 |
|
End module |
|
218 |
|
|
|
|
|
|
|
|
|
|
|
|
|
750-601 |
|
Supply modules with fuse holder (DC 24 V) |
|
219 |
|
|
|
|
|
|
|
|
|
|
|
|
|
750-602 |
|
Supply modules, passive (DC 24 V) |
|
220 |
|
|
|
|
|
|
|
|
|
|
|
|
|
750-609 |
|
Supply modules with fuse holder (AC 230 V) |
|
219 |
|
|
|
|
|
|
|
|
|
|
|
|
|
750-610 |
|
Supply modules with fuse holder, with diagn. (DC 24 V) |
|
221 |
|
|
|
|
|
|
|
|
|
|
|
|
|
750-611 |
|
Supply modules with fuse holder, with diagn. (AC 230 V) |
|
221 |
|
|
|
|
|
|
|
|
|
|
|
|
|
750-612 |
|
Supply modules, passive (AC/DC 230 V) |
|
223 |
|
|
|
|
|
|
|
|
|
|
|
|
|
750-613 |
|
Supply modules with DC-DC Converter (DC 24 V) |
|
224 |
|
|
|
|
|
|
|
|
|
|
|
|
|
750-614 |
|
Potential multiplication modules (AC/DC 24 V-230 V) |
|
225 |
|
|
|
|
|
|
|
|
|
|
|
|
|
750-615 |
|
Supply modules with fuse holder (AC 120 V) |
|
219 |
|
|
|
|
|
|
|
|
|
|
|
|
|
750-616 |
|
Separation modules |
|
226 |
|
|
|
|
|
|
|
|
|
|
|
|
750-622 |
|
Binary spacer modules |
|
227 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Terminal blocks for encoder and resolvers |
start on page 229 |
|||||
|
|
Item- |
|
|
|
On |
|
|
|
|
No: |
|
Name |
|
page |
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
750-630 |
|
SSI transmitter interface 24Bit 125 kHz |
|
230 |
|
|
|
|
|
|
|
|
|
|
|
|
750-631 |
|
Incremental encoder interface |
|
233 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Special terminal blocks |
start on page 238 |
|||||
|
|
Item- |
|
|
|
On |
|
|
|
|
No: |
|
Name |
|
page |
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
750-650 |
|
RS232 (Full duplex) |
|
239 |
|
|
|
|
|
|
|
|
|
|
|
|
|
750-651 |
|
TTY-, 20 mA Current Loop |
|
245 |
|
|
|
|
|
|
|
|
|
|
|
|
|
750-653 |
|
RS485 Interface (Full duplex) |
|
251 |
|
|
|
|
|
|
|
|
|
|
|
|
750-654 |
|
Data exchange module |
|
257 |
|
|
|
|
|
|
|
|
|
|
|
|
Modular I/O System
ETHERNET TCP/IP
98 • I/O modules Digital Inputs - Review
4.2 Digital Inputs
750-400 (2 Channel DI, DC 24 V, 3.0 ms) |
|
750-401 (2 Channel DI, DC 24 V, 0.2 ms) |
page 99 |
|
|
|
|
750-402 (4 Channel DI, DC 24 V, 3.0 ms) |
|
750-403 (4 Channel DI, DC 24 V, 0.2 ms) |
page 101 |
|
|
|
|
750-404 (U/D Counter) |
|
|
page 103 |
|
|
|
|
750-405 (2 Channel Digital Input, AC 230 V) |
|
|
page 118 |
|
|
|
|
750-406 (2 Channel Digital Input, AC 120 V) |
|
|
page 120 |
|
|
|
|
750-408 (4 Channel Digital Input, DC 24 V, 3.0 ms) |
|
750-409 (4 Channel Digital Input, DC 24 V, 0.2 ms) |
page 122 |
|
|
|
|
750-410 (2 Channel Digital Input, DC 24 V, 3.0 ms) |
|
750-411 (2 Channel Digital Input, DC 24 V, 0.2 ms) |
page 124 |
|
|
|
|
750-412 (2 Channel Digital Input, DC 48 V, 3.0 ms) |
|
|
page 126 |
|
|
|
|
750-414 (4 Channel Digital Input, DC 5 V, 0.2 ms) |
|
|
page 128 |
|
|
|
|
750-415 (4 Channel Digital Input, AC/DC 24 V, 20 ms) |
|
|
page 130 |
|
|
|
|
Modular I/O System
ETHERNET TCP/IP
I/O modules • 99
Digital Inputs 750-400, -401

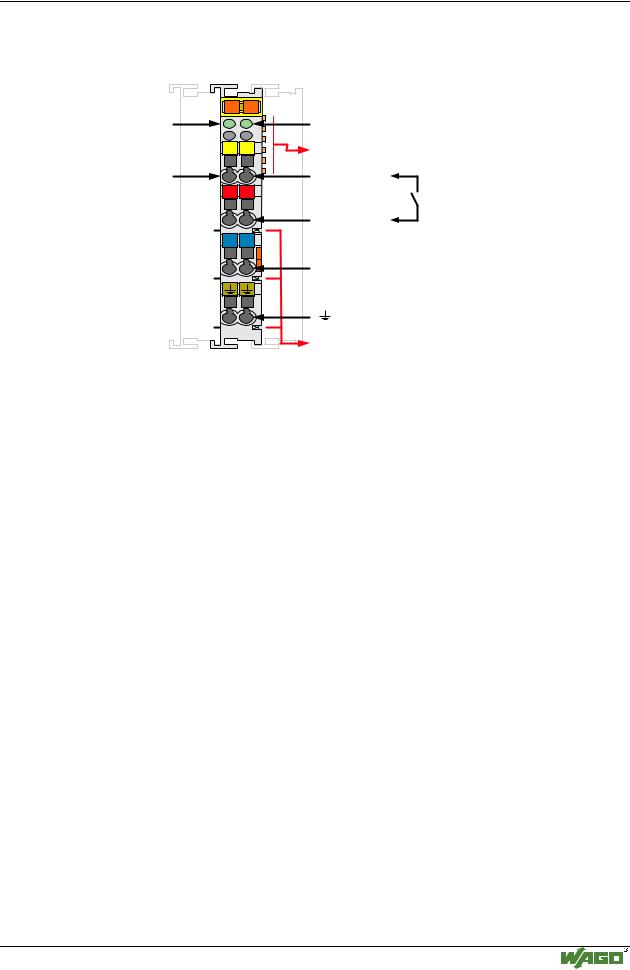

4.2.1.1.1 2 Channel Digital Inputs
(DC 24V, 3.0 ms / 0.2 ms) 750-400, -401
Status |
13 |
14 |
A |
|
|
|
|
|
DI 1 |
B |
C |
|
|
|
|
|
D |
|
13 |
14 |
DI 1 |
|
|
|
+ |
+ |
|
- |
- |
750-400
Status
DI 2
Data contacts
DI 2
24V
0V
Power jumper contacts
Technical description
The power supply is connected to the power jumper contacts on each I/O module for the respective operating voltage. Power connections are made automatically from module to module when snapped onto the DIN rail, with power supplied through a powerfeed module.
All 2-channel digital inputs are 4-conductor devices allowing the direct connection of 4-conductor sensors with the terminations V+, 0V, ground and signal.
The power distribution module 750-614 is available for the connection of more sensors to V+ and 0V, but does not continue the grounding contact.
RC filters are series-connected for noise rejection and relay switch debouncing. They are available with time constants of 3.0 ms and 0.2 ms.
The positions of the different I/O modules in the configured node/station are selectable by the user. A block type configuration is not necessary.
These input modules can operate with all buscouplers of the WAGO-I/O-SYSTEM.
Modular I/O System
ETHERNET TCP/IP
100 • I/O modules
Digital Inputs 750-400, -401
Technical Data:
Item-No.: |
750-400 |
750-401 |
Number of inputs
Input filter
Voltage via power jumper contacts
Signal voltage (0)
Signal voltage (1)
Input current (internal)
Input current (field side)
Isolation
Internal bit width
Configuration
Operating temperature
Wire connection
Dimensions (mm) WxHxL
|
2 |
3 ms |
0.2 ms |
DC 24V (-15% / +20%)
DC -3 V...+5 V (std. EN 61131 Type 1)
DC 15 V...30 V (std. EN 61131 Type 1)
2.5 mA max.
5 mA typ.
500 V System/power supply
2
no address or configuration adjustment
0°C....+55°C
CAGE CLAMP ; 0.08 mm2 - 2.5 mm2, AWG 28 – 14, 8 – 9 mm Stripped length
12 x 64* x 100 (*from upper edge of carrier rail)
Modular I/O System
ETHERNET TCP/IP
I/O modules • 101
Digital Inputs 750-402, -403

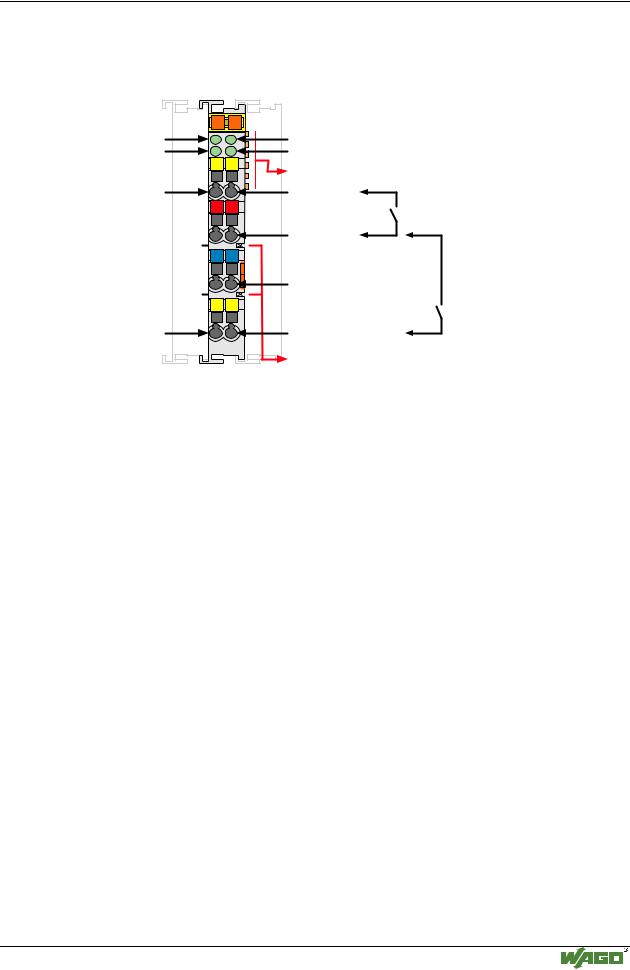

4.2.1.1.2 4 Channel Digital Inputs
(DC 24V, 3.0 ms / 0.2 ms) 750-402, -403
Status |
13 |
14 |
|
|
|
DI 1 |
A |
|
|
C |
|
DI 3 |
B |
|
|
D |
|
|
13 |
14 |
DI 1 |
|
|
|
+ |
+ |
|
- |
- |
|
15 |
16 |
DI 3 |
|
|
|
750-402 |
|
Technical description
Status
DI 2
DI 4
Data contacts
DI 2
24V
0V
DI 4
Power jumper contacts
The power supply is connected to the power jumper contacts on each I/O module for the respective operating voltage. Power connections are made automatically from module to module when snapped onto the DIN rail, with power supplied through a powerfeed module.
The 4-channel digital inputs are suitable for the direct connection of two 3- conductor sensors (V+, 0V, signal).
The power distribution module 750-614 is available for the connection of more sensors to V+ and 0V.
RC filters are series-connected for noise rejection and switch debouncing. They are available with time constants of 3.0 ms and 0.2 ms.
The positions of the different I/O modules in the configured node/station are selectable by the user. A block type configuration is not necessary.
These input modules can operate with all buscouplers of the WAGO-I/O-SYSTEM.
