j.​ the position within a set of sequentially related Volumetric Presentation States​ k.​animation of the view​

l.​ reference to an image depicting the view described by the Volumetric Presentation State​

The Volume Rendering Volumetric Presentation State IOD is used in three SOP Classes as defined in PS3.4:​ •​one SOP Class allowing a single input volume and excluding segmentation cropping​

•​one SOP Class allowing a single input volume with multiple input segmentations each with a distinct classification map​ •​one SOP Class allowing multiple input volumes, segmentations, and classification maps​

A.80.2.2 Volume Rendering Volumetric Presentation State IOD Entity-Relationship​

Model​

This IOD uses the E-R Model in Section A.1.2, with only the Presentation State IE below the Series IE.​

A.80.2.3 Volume Rendering Volumetric Presentation State IOD Module Table​

Table A.80.2.3-1 specifies the Modules of the Volume Rendering Volumetric Presentation State IOD.​

Table A.80.2.3-1. Volume Rendering Volumetric Presentation State IOD Modules​

- Standard -​

A.80.2.4 Volume Rendering Volumetric Presentation State IOD Content Constraints​

A.80.2.4.1 Presentation Input Restrictions​

Presentation Input Type (0070,1202) shall have a value of VOLUME.​

See Section B.5.1.24 “Volume Rendering Volumetric Presentation State Storage SOP Classes” in PS3.4 for SOP Class-specific​ Presentation Input Restrictions.​

A.80.2.4.2 Graphic Annotation Module​

The values of the following Attributes, if present, shall be DISPLAY:​

•​Bounding Box Annotation Units (0070,0003)​

•​Anchor Point Annotation Units (0070,0004)​

•​Graphic Annotation Units (0070,0005)​

•​Compound Graphics Units (0070,0282)​

Note​

The specified annotation is associated with the specified View and not with the input data, and may have clinical relevance​ only to the specified View. Therefore, if an application alters the View from that defined by the Presentation State, annotation​ may no longer be clinically correct.​

A.80.2.4.3 Render Shading Module​

If the Render Shading Module is omitted for a rendered view, an unshaded volume rendering shall be performed.​

A.80.2.4.4 Volumetric Presentation State Reference Coordinate System​

All SOP Instances referenced in the Volumetric Presentation State Relationship Module shall be registered to the Volumetric​ Presentation State Reference Coordinate System. See C.11.23.3.​

A.81 Content Assessment Results IOD​

A.81.1 Content Assessment Results IOD Description​

This IOD represents the results of an assessment of the content of one or more SOP Instance(s). The assessment may be performed​ automatically without human intervention. There is no provision for encoding verification or approval by a human, although a human​ maybeinvolvedindeterminingwhetherthecontentsmeetcertaincriteria.ThisIODisnotintendedtocommunicateapprovaltoproceed​ with the clinical workflow.​

The Content Assessment Results SOP Instance is not required to be part of the same Study as the assessed SOP Instances.​

- Standard -​

A.81.2 Content Assessment Results IOD Entity-Relationship Model​

The Content Assessment Results IOD uses the E-R Model in A.1.2, with only the Content Assessment Results IE below the Series​ IE. The Frame of Reference IE is not a component of this IOD.​

A.81.3 Content Assessment Results IOD Module Table​

Table A.81.3-1 specifies the Modules of the Content Assessment Results IOD.​

Table A.81.3-1. Content Assessment Results IOD Modules​

A.81.4 Content Assessment Results IOD Content Constraints​

A.81.4.1 Modality​

The value of Modality (0008,0060) shall be ASMT.​

A.82 Procedure Protocol Information Object Definitions​

Procedure Protocol Information Object Definitions (IODs) encode the details of procedure protocols.​

SeparateIODsaredefinedfordifferenttypesofProcedureProtocol,suchasaCTimageacquistionProcedureProtocol.ACTPerformed​ Procedure Protocol IOD encodes the details of a procedure that has been performed, and a CT Defined Procedure Protocol IOD​ specifies details of a procedure that may be used for one or more Procedure Protocols to be peformed in the future.​

A.82.1 CT Performed Procedure Protocol IOD​

A.82.1.1 CT Performed Procedure Protocol IOD Description​

TheCTPerformedProcedureProtocolIODdescribesacquisitionandreconstructionprotocolparametervaluesusedduringaspecific​ performed CT procedure.​

A.82.1.2 CT Performed Procedure Protocol IOD Entity-Relationship Model​

This IOD uses the E-R Model in Section A.1.2, with only the Procedure Protocol IE below the Series IE.​

- Standard -​

DICOM PS3.3 2020a - Information Object Definitions​ Page 419​

A.82.1.3 CT Performed Procedure Protocol IOD Module Table​

Table A.82.1.3-1. Table CT Performed Procedure Protocol IOD Modules​

A.82.2 CT Defined Procedure Protocol IOD​

A.82.2.1 CT Defined Procedure Protocol IOD Description​

The CT Defined Procedure Protocol IOD describes acquisition protocol parameters and related details for a defined CT procedure.​

See Annex AAAA “Protocol Storage Examples and Concepts (informative)” in PS3.17 for explanatory information and examples.​

A.82.2.2 CT Defined Procedure Protocol IOD Entity-Relationship Model​

The Procedure Protocol in a CT Defined Procedure Protocol IOD is not associated with a specific Patient, however it is associated​ with the equipment that created the instance.​

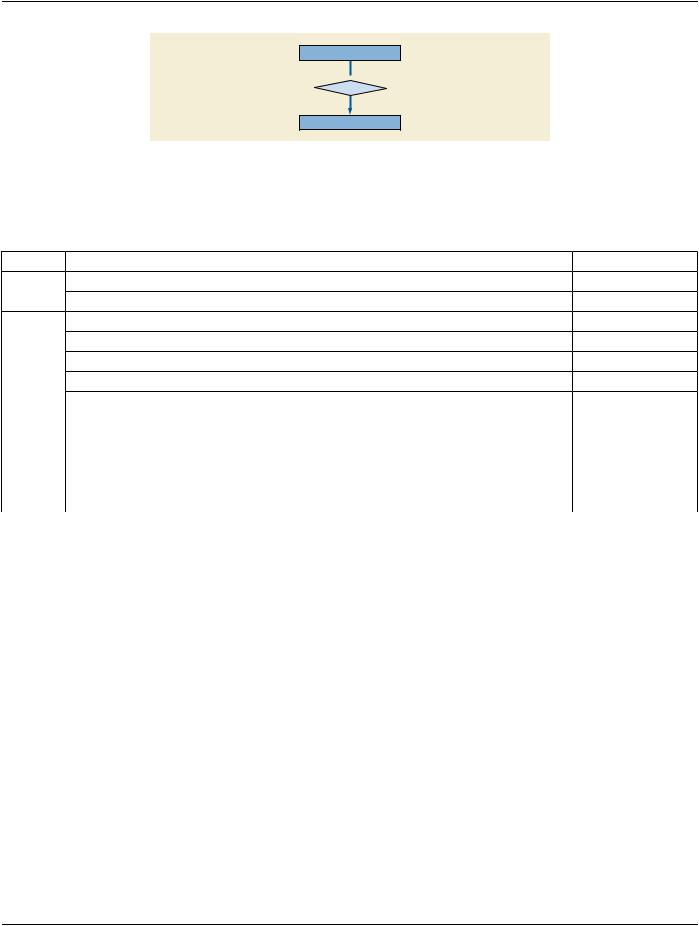

The E-R model for the CT Defined Procedure Protocol IOD is shown in Figure A.82.2.2-1.​

- Standard -​

Equipment

1 creates

1-n

Procedure Protocol

Figure A.82.2.2-1. CT Defined Procedure Protocol IOD E-R Model​

A.82.2.3 CT Defined Procedure Protocol IOD Module Table​

Table A.82.2.3-1. CT Defined Procedure Protocol IOD Modules​

A.82.2.3.1 CT Defined Procedure Protocol IOD Content Constraints​

A.82.2.3.1.1 Equipment Modality Attribute​

The value of Equipment Modality (0008,0221) shall be CT.​

Note​

An application can query for Protocols by matching on the modality-specific Defined Protocol SOP Class.​

A.82.3 Protocol Approval Information Object Definitions​

Protocol Approval Information Object Definitions (IODs) record the details of an approval of DICOM instances that contain protocols.​

A.82.3.1 Protocol Approval IOD​

A.82.3.1.1 Protocol Approval IOD Description​

The Protocol Approval IOD describes approval-related Assertions made by people, organizations and devices about Instances.​

A.82.3.1.2 Protocol Approval IOD Entity-Relationship Model​

The E-R model for the Protocol Approval IOD is shown in Figure A.82.3.3.2-1.​
