Page 1396​

DICOM PS3.3 2020a - Information Object Definitions​

Attribute name​

Tag​

Attribute Description​

Film Destination​

(2000,0040)​

BIN_i​

the exposed film is deposited in a sorter bin where "I"​

representsthebinnumber.FilmsorterBINsshallbenumbered​

sequentially starting from 1 and no maximum is placed on the​

number of BINs. The encoding of the BIN number shall not​

contain leading zeros.​

Film Session Label​

(2000,0050)​

Memory Allocation​

(2000,0060)​

Owner ID​

(2100,0160)​

Attribute Name​

Tag​

Attribute Description​

Image Display Format​

(2010,0010)​ Type of image display format.​

Enumerated Values:​

STANDARD\C,R​

film contains equal size rectangular image boxes with R rows​

of image boxes and C columns of image boxes; C and R are​

integers​

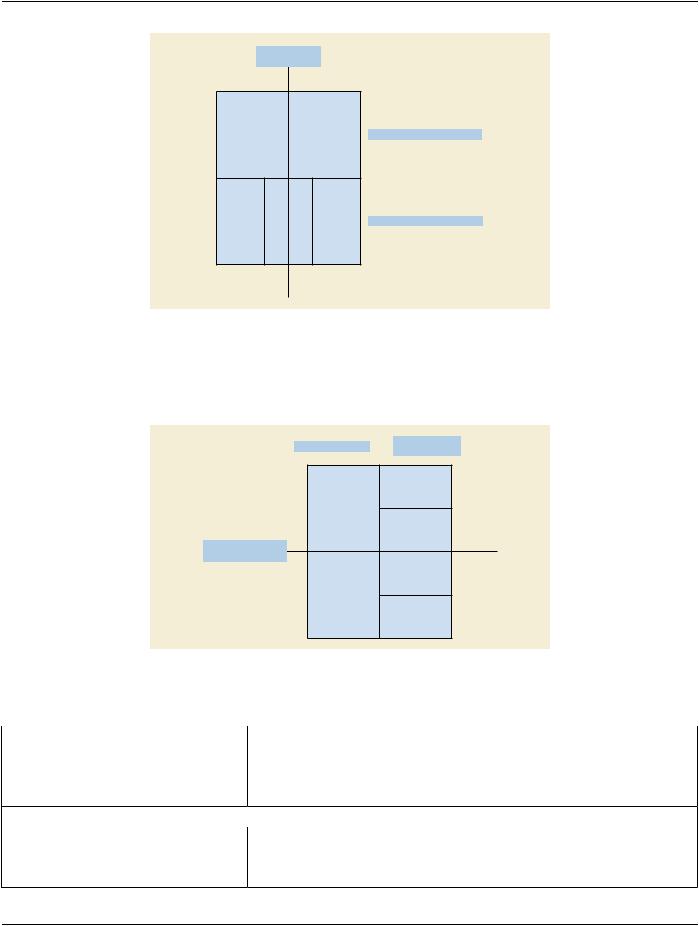

ROW\R1,R2,R3, etc.​

film contains rows with equal size rectangular image boxes​

with R1 image boxes in the first row, R2 image boxes in​

second row, R3 image boxes in third row, etc.; R1, R2, R3,​

etc. are integers​

COL\C1,C2,C3, etc.​

filmcontainscolumnswithequalsizerectangularimageboxes​

with C1 image boxes in the first column, C2 image boxes in​

secondcolumn,C3imageboxesinthirdcolumn,etc.;C1,C2,​

C3, etc. are integers​

SLIDE​

filmcontains35mmslides;thenumberofslidesforaparticular​

film size is configuration dependent​

SUPERSLIDE​

filmcontains40mmslides;thenumberofslidesforaparticular​

film size is configuration dependent​

CUSTOM\i​

film contains a customized ordering of rectangular image​

boxes; i identifies the image display format; the definition of​

the image display formats is defined in the Conformance​

Statement; i is an integer​

Annotation Display​

(2010,0030)​ Identificationofannotationdisplayformat.Thedefinitionoftheannotationdisplayformats​

Format ID​

and the annotation box position Sequence are defined in the Conformance Statement​

Film Orientation​

(2010,0040)​

Film orientation.​

Enumerated Values:​

PORTRAIT​ vertical film position​

LANDSCAPE​horizontal film position​

Film Size ID​

(2010,0050)​

Film size identification.​

Defined Terms:​

Page 1398​

DICOM PS3.3 2020a - Information Object Definitions​

Attribute Name​

Tag​

Attribute Description​

Magnification Type​

(2010,0060)​ Interpolation type by which the printer magnifies or decimates the image in order to fit​

the image in the image box on film.​

Defined Terms:​

REPLICATE​

BILINEAR​

CUBIC​

NONE​

Smoothing Type​

(2010,0080)​ Furtherspecifiesthetypeoftheinterpolationfunction.ValuesaredefinedinConformance​

Statement. Only valid for Magnification Type (2010,0060) = CUBIC​

Border Density​

(2010,0100)​ Density of the film areas surrounding and between images on the film.​

Defined Terms:​

BLACK​

WHITE​

i where i represents the desired density in hundredths of OD (e.g., 150 corresponds with​

1.5 OD)​

Empty Image Density​

(2010,0110)​ Density of the image box area on the film that contains no image.​

Defined Terms:​

BLACK​

WHITE​

i where i represents the desired density in hundredths of OD (e.g., 150 corresponds with​

1.5 OD)​

Min Density​

(2010,0120)​ Minimumdensityoftheimagesonthefilm,expressedinhundredthsofOD.IfMinDensity​

is lower than minimum printer density than Min Density is set to minimum printer density.​

Max Density​

(2010,0130)​ Maximum density of the images on the film, expressed in hundredths of OD. If Max​

Density is higher than maximum printer density than Max Density is set to maximum​

printer density.​

Trim​

(2010,0140)​ Specifies whether a trim box shall be printed surrounding each image on the film.​

Enumerated Values:​

YES​

NO​

Configuration​

(2010,0150)​ Character string that contains either the ID of the printer configuration table that contains​

Information​

a set of values for implementation specific print parameters (e.g., perception LUT related​

parameters) or one or more configuration data values, encoded as characters. If there​

are multiple configuration data values encoded in the string, they shall be separated by​

backslashes. The definition of values shall be contained in the SCP's Conformance​

Statement.​

Defined Terms:​

CS000-CS999​Implementation specific curve type.​

Note​

It is recommended that for SCPs, CS000 represent the lowest contrast and​

CS999 the highest contrast levels available.​

Illumination​

(2010,015E)​ Luminanceoflightboxilluminatingapieceoftransmissivefilm,orforthecaseofreflective​

media,luminanceobtainablefromdiffusereflectionoftheilluminationpresent.Expressed​

as L0, in candelas per square meter (cd/m2).​

Page 1399​

Attribute Name​

Attribute Description​

Reflected Ambient​

Light​

Requested Resolution​

ID​

Approximately twice the resolution of STANDARD.​

ICC Profile​
