Page 1136​

DICOM PS3.3 2020a - Information Object Definitions​

Attribute Name​

Tag​

Type​

Attribute Description​

Recognizable Visual​

(0028,0302)​

3​

Indicates whether or not the image contains sufficiently​

Features​





recognizable visual features to allow the image or a​







reconstruction from a set of images to identify the patient.​







Enumerated Values:​







YES​







NO​







IfthisAttributeisabsent,thentheimagemayormaynotcontain​







recognizable visual features.​

Icon Image Sequence​

(0088,0200)​

3​

This icon image is representative of the image.​







Only a single Item is permitted in this Sequence.​

>Include Table C.7-11b “Image Pixel Macro Attributes”​



See Section C.7.6.1.1.6 for further explanation.​

Transducer Data​

(0018,5010)​

3​

Manufacturer defined code or description​

Transducer Scan Pattern​

(0018,9809)​

1​

The scan pattern the transducer is capable of.​

Code Sequence​





Only a single Item shall be included in this Sequence.​













See Section C.8.24.3.4 for further explanation.​

>Include Table 8.8-1 “Code Sequence Macro Attributes”​

DCID 12032 “Transducer Scan Pattern”.​

Transducer GeometryCode​

(0018,980D)​

1​

Geometric structure of the transducer.​

Sequence​





Only a single Item shall be included in this Sequence.​













See Section C.8.24.3.4 for further explanation.​

>Include Table 8.8-1 “Code Sequence Macro Attributes”​

DCID 12033 “Ultrasound Transducer Geometry”.​

Transducer Beam Steering​

(0018,980E)​

1​

Technique used by the transducer for beam steering.​

Code Sequence​





One or more Items shall be included in this Sequence.​













If more than one Item is present, the order is significant from​







plane-forming technique to volume-forming technique.​







See Section C.8.24.3.4 for further explanation.​

>Include Table 8.8-1 “Code Sequence Macro Attributes”​

DCID 12034 “Ultrasound Transducer Beam Steering”.​

Transducer Application​

(0018,980F)​

1​

The primary clinical application of the transducer.​

Code Sequence​





Only a single Item shall be included in this Sequence.​













See Section C.8.24.3.4 for further explanation.​

>Include Table 8.8-1 “Code Sequence Macro Attributes”​

DCID 12035 “Ultrasound Transducer Application”.​

Processing Function​

(0018,5020)​

3​

Manufacturer defined description of processing of echo​







information.Datamayincludecodeordescriptionofgain(initial,​







overall, TGC, dynamic range, etc.), pre-processing,​







post-processing, Doppler processing parameters, e.g., cutoff​







filters, etc., as used in generating a given image.​

Mechanical Index​

(0018,5022)​

1​

See Section C.8.5.6.1.8 for Description.​

Bone Thermal Index​

(0018,5024)​

1​

See Section C.8.5.6.1.8 for Description.​

Cranial Thermal Index​

(0018,5026)​

1​

See Section C.8.5.6.1.8 for Description.​

Soft Tissue Thermal Index​

(0018,5027)​

1​

See Section C.8.5.6.1.8 for Description.​

- Standard -​



DICOM PS3.3 2020a - Information Object Definitions​

Page 1137​

Attribute Name​

Tag​

Type​

Attribute Description​



Depth(s) of Focus​

(0018,9801)​

1​

The depth or depths from the transducer face, of the​







manufacturer defined beam focus points used for the image, in​







mm.​



Depth of Scan Field​

(0018,5050)​

1​

The depth, in mm, from the transducer face to the deepest point​







included in the imagethe field of view.​



C.8.24.3.1 Pixel Representation​

Pixel Representation (0028,0103) is specified to be Type 1 with the constraint that VR for all the pixel data will always be unsigned​ (US) and not signed (SS).​

Enumerated Values:​

0000H​unsigned integer​

Note​

Thereal-worldvaluesthatareinherentlysigned(e.g.,FlowVelocity,TissueVelocity,Variance)arerepresentedasunsigned,​ unitless pixel values and may be mapped to signed real-world quantities via the Real World Value Mapping Macro.​

C.8.24.3.2 Image Type​

C.8.24.3.2.1 Pixel Data Characteristics​

Value 1 of Image Type (0008,0008) and Frame Type (0008,9007) is discussed in Section C.8.16.1.1. No additional requirements or​ Enumerated Values.​

C.8.24.3.2.2 Patient Examination Characteristics​

Value 2 of Image Type (0008,0008) and Frame Type (0008,9007) is discussed in Section C.8.16.1.2. No additional requirements or​ Enumerated Values.​

C.8.24.3.2.3 Image Flavor​

Value 3 of Image Type (0008,0008) and Frame Type (0008,9007) is discussed in Section C.8.16.1.3. No additional requirements or​ Defined Terms.​

C.8.24.3.2.4 Derived Pixel Contrast​

Value 4 of Image Type (0008,0008) and Frame Type (0008,9007) is discussed in Section C.8.16.1.4. No additional requirements or​ Defined Terms.​

C.8.24.3.3 Dimension Organization Type​

Dimension Organization Type (0020,9311) specifies the general structure of the image. The concept of "multi-frame dimensions" as​ specifiedbytheDimensionIndexSequence(0020,9222)andper-frameDimensionIndexValues(0020,9157)shallbeusedtospecify​ the relationships of frames within that general structure.​

If Dimension Organization Type (0020,9311) has values of 3D or 3D_TEMPORAL, then the Dimension Index Sequence (0020,9222)​ shall have exactly three Items, with the dimension values described in Table C.8.24.3.3-1.​

Table C.8.24.3.3-1. Dimension Definition for US Acquisition 3D Images​

Item​

Attribute​

Tag​

Value​

Dimension Index Sequence​

(0020,9222)​



1st​

>Dimension Index Pointer​

(0020,9165)​

Tag of Attribute specifying temporal position of​







frames​



>Functional Group Pointer​

(0020,9167)​

Tag of Sequence containing above Attribute​

- Standard -​

Page 1138​

DICOM PS3.3 2020a - Information Object Definitions​



Item​

Attribute​

Tag​



Value​



…​







2nd​

>Dimension Index Pointer​

(0020,9165)​

(0020,9301)

Image Position (Volume)​



>Functional Group Pointer​

(0020,9167)​

(0020,930E)PlanePosition(Volume)Sequence​



…​







3rd​

>Dimension Index Pointer​

(0020,9165)​

(0018,9808)

Data Type​



>Functional Group Pointer​

(0020,9167)​

(0018,9807)

Image Data Type Sequence​



…​







The Dimension Index Values (0020,9157) corresponding to these dimension variables positively associate frames with different Data​ Type values at the same spatial and temporal position. Figure C.8.24.3.3-1 illustrates the use of Dimensions to associate frames with​ temporal, spatial, and Data Type dimensions.​

These Dimension values shall be used even if there is only one possible value for a Dimension.​

Note​

For example, if Dimension Organization Type (0020,9311) has the value 3D, the temporal position dimension is present and​ the dimension index of the temporal Attribute is the same in every frame of the image. Similarly, if the Data Type Attribute​ isintheSharedFunctionalGroupandallframesintheobjectareofDataTypeTISSUE_INTENSITY,theDataTypedimension​ is present and the dimension index of the Data Type dimension is the same in every frame of the image.​

Each plane in the volume consists of one or more frames each with a distinct value of Data Type (0018,9808). Adjacent planes in the​ volume shall be equally spaced in the Z direction.​

Each frame comprising a volume shall have the same value of the temporal dimension Attribute. Any appropriate physiological event​ temporal Attribute may be used to specify the temporal position. If there is no specific physiological event to which the temporal pos-​ ition of frames is referenced, then Temporal Position Time Offset (0020,930D) in the Temporal Position Sequence (0020,9310) may​ beusedasthetemporaldimensionAttribute.Ifallframesareatthesametemporalposition,anytemporalAttributemaybereferenced.​

Note​

For example, the Attribute specifying temporal position of frames may be any appropriate temporal Attribute, such as Nom-​ inalCardiacTriggerDelayTime(0020,9153)orNominalPercentageofCardiacPhase(0020,9241)intheCardiacSynchron-​ ization Sequence (0018,9118) if the temporal position of frames is referenced to the cardiac R-wave, or Nominal Respiratory​ TriggerDelayTime(0020,9255)orNominalPercentageofRespiratoryPhase(0020,9245)intheRespiratorySynchronization​ Sequence (0020,9253) if the temporal position of frames is referenced to the latest inspiration maximum.​

- Standard -​

DICOM PS3.3 2020a - Information Object Definitions​

Page 1139​

Temporal Position

Temporal Position

Temporal Position



Time Offset = 0.0

Time Offset = 0.t

Time Offset = 0.67



(0020, xx0D)

(0020, xx0D)

(0020, xx0D)















Image Position (0020,xx01)





n



...

Image Position = +10.0mm



2

k/n/1



1



Data Type:





Tissue Intensity





k/n/2





Data Type:





Flow Velocity

Image Position (0020,xx01)



Image Position = -15.0mm





n

Image Position = +10.0mm

k/1/1

...

Data Type:



2

1/n/1

Tissue Intensity

1



Data Type:

k/1/2



Tissue Intensity



Data Type:







1/n/2

Flow Velocity







Data Type:





Flow Velocity





Image Position = -15.0mm

Dimension Index Values = i/j/k



1/1/1





Data Type:





Tissue Intensity





1/1/2





Data Type:





Flow Velocity



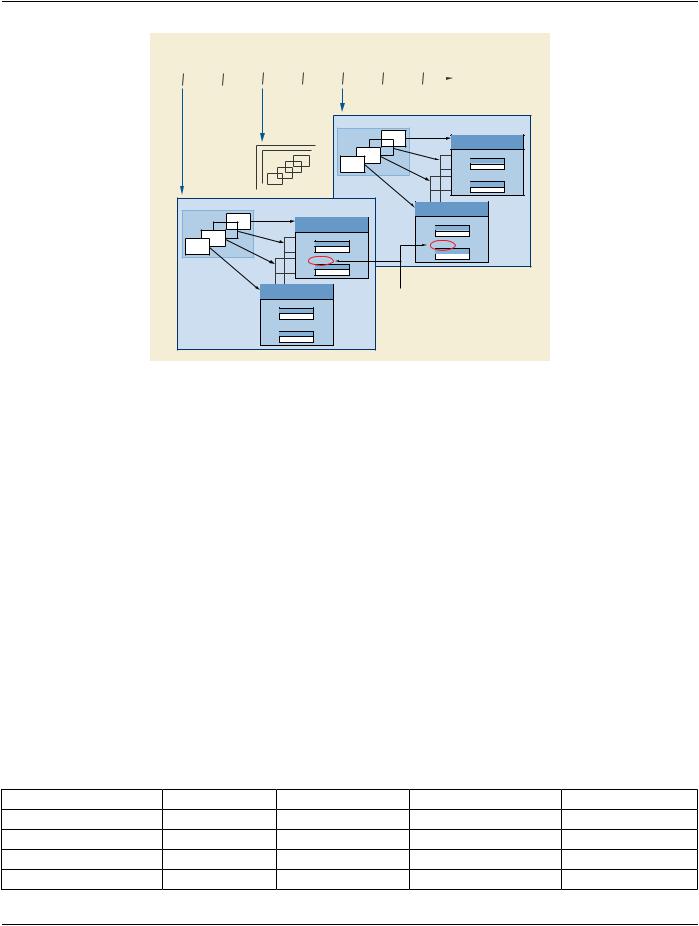

Figure C.8.24.3.3-1. Dimension Organization Type Frame Relationships​

C.8.24.3.4 Transducer Description​

Thefollowingelementstogetherdescribethetypeoftransducerusedtoacquiretheimage.Thesearecharacteristicsofthetransducer​ itself rather than its specific use in the acquisition of this image. In other words, these Attribute values are determined from the con-​ struction and design of the transducer and a given transducer generally has the same values of these Attributes in every image it is​ used to create.​

•​Transducer Scan Pattern Code Sequence (0018,9809)​

The shape of the acoustic scan field the transducer is capable of.​

•​Transducer Geometry Code Sequence (0018,980D)​

The physical scan aperture from which acoustic pulses are emitted and received.​

•​Transducer Beam Steering Code Sequence (0018,980E)​

The method used to steer acoustic beam.​

•​Transducer Application Code Sequence (0018,980F)​

The placement on the subject for which the transducer is designed.​

EachprobemodelhasauniquesetofvaluesoftheseAttributes.Forexample,thesesampleprobeshavethefollowingcharacteristics,​ which are encoded in the Attributes above:​

Table C.8.24.3.4-1. Sample Transducer Characteristics​

Model​

Scan Pattern​

Geometry​

Beam Steering​

Application​

Pedoff CW​

Line​

NonImaging​

Fixed direction​

External​

Phased array sector probe​

Plane​

Sector​

Phased​

External​

Steerable TEE​

Plane​

Sector​

Phased, Mechanical​

Transesophogeal​

Curved Linear Abdominal​

Plane​

Curved Linear​

Phased​

External​

- Standard -​

Page 1140​

DICOM PS3.3 2020a - Information Object Definitions​



Model​

Scan Pattern​

Geometry​

Beam Steering​

Application​

Endovaginal​

Plane​

Curved Linear​

Phased​

Endovaginal​

Mechanical 3D​

Volume​

Sector​



Phased, Mechanical​

External​

Phased 3D​

Volume​

Sector​



Phased​

External​

Endovaginal 3D​

Volume​

Curved Linear​

Phased, Mechanical​

Endovaginal​

C.8.24.4 IVUS Image Module​









Table C.8.24.4-1 specifies the Attributes of an IVUS Module.​









Table C.8.24.4-1. IVUS Image Module Attributes​



Attribute Name​

Tag​

Type​



Attribute Description​

IVUS Acquisition​

(0018,3100)​

1​

Defined Terms:​









MOTOR_PULLBACK​









MANUAL_PULLBACK​









SELECTIVE​









GATED_PULLBACK​









See Section C.8.5.6.1.21​



IVUS Pullback Rate​

(0018,3101)​

1C​

Required if IVUS Acquisition (0018,3100) value is​







MOTOR_PULLBACK. Specified in units of mm/sec.​







See Section C.8.5.6.1.22​



IVUS Gated Rate​

(0018,3102)​

1C​

Required if IVUS Acquisition (0018,3100) value is​







GATED_PULLBACK. Specified in units of mm/beat.​







See Section C.8.5.6.1.23​



IVUS Pullback Start Frame​

(0018,3103)​

1C​

Required if IVUS Acquisition (0018,3100) value is​

Number​





MOTOR_PULLBACK or GATED_PULLBACK.​







See Section C.8.5.6.1.24​



IVUS Pullback Stop Frame​

(0018,3104)​

1C​

Required if IVUS Acquisition (0018,3100) value is​

Number​





MOTOR_PULLBACK or GATED_PULLBACK.​

See Section C.8.5.6.1.25​

C.8.24.5 Excluded Intervals Module​

The Excluded Intervals Module indicates those periods within Acquisition Duration (0018,9073) during which no volume acquisition​ takes place. It provides information not available at the frame level or image level, since individual frames of the volume may have​ been built-up over a time period within which some intervals were excluded from acquisition. Further, it provides information that is​ not specific to associated waveform objects since the fact that volume acquisition was excluded during these intervals is a character-​ istic of the volume, not the associated waveform(s), see Figure C.8.24.5-1. Table C.8.24.5-1 specifies the Attributes of the Excluded​ Intervals Module.​

Note​

For example, if the imaging device performing a gated volume acquisition excludes volume data acquired during an ectopic​ beat, the Excluded Intervals Attributes would be used to mark this interval in an associated physio waveform display.​

- Standard -​
