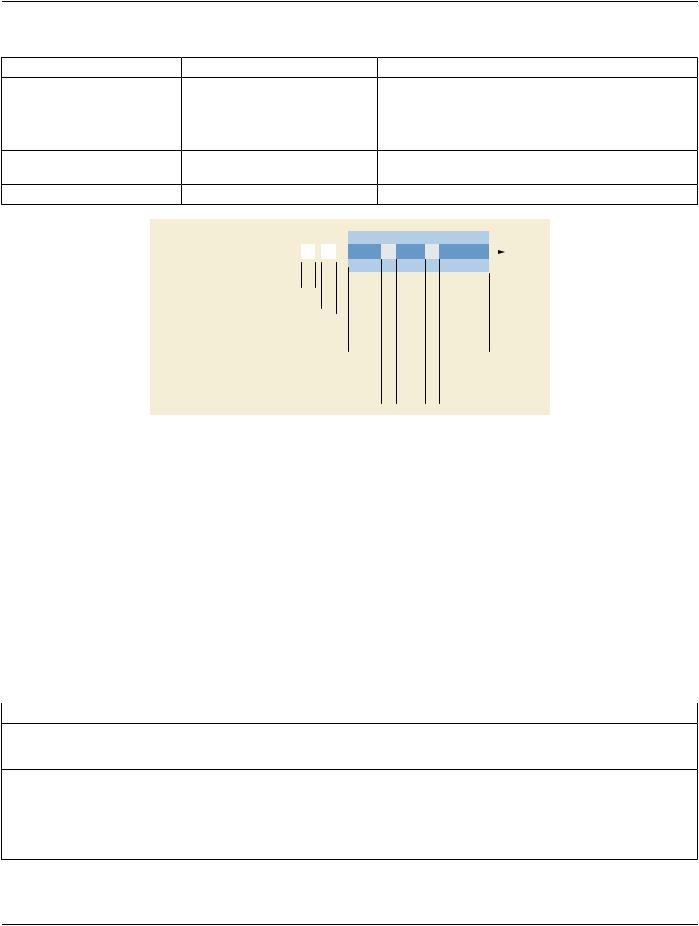

DICOM PS3.3 2020a - Information Object Definitions​ Page 1141​

Table C.8.24.5-1. Excluded Intervals Module Attributes​

Figure C.8.24.5-1. Relationship of Timing Related Attributes​

C.8.24.6 Enhanced US Volume Functional Group Macros​

The following sections contain Functional Group Macros specific to the Enhanced US Volume IOD.​

Note​

The Attribute descriptions in the Functional Group Macros are written as if they were applicable to a single frame (i.e., the​ Macro is part of the Per-frame Functional Groups Sequence). If an Attribute is applicable to all frames (i.e., the Macro is part​ of the Shared Functional Groups Sequence) the phrase "this frame" in the Attribute description shall be interpreted to mean​ " for all frames".​

C.8.24.6.1 US Image Description Macro​

Table C.8.24.6.1-1 specifies the Attributes of the US Image Description Functional Group Macro.​

Table C.8.24.6.1-1. US Image Description Macro Attributes​

Enumerated Values and Defined Terms are the same as those for the​ four values of Image Type (0008,0008), except that the value MIXED​ is not allowed. See Section C.8.24.3.2.​

- Standard -​

If Volumetric Properties (0008,9206) is VOLUME and Volume Based Calculation Technique (0008,9207) is NONE, all frames in the​ frame set shall be spaced the same Z-distance from adjacent frames (i.e., spacing between slices is constant).​

C.8.25 Ophthalmic Refractive Measurements Modules​

C.8.25.1 Lensometry Measurements Series Module​

The Lensometry Measurements IODs use the General Series Module, specialized by the Lensometry Measurements Series Module,​ todescribetheDICOMSeriesEntitydescribedinSectionA.1.2.3,andtodefinewhatconstitutesaSeriesforthecontextofOphthalmic​ device.​

Table C.8.25.1-1 specifies the Attributes that identify and describe general information about the Lensometry Measurements Series.​

Table C.8.25.1-1. Lensometry Measurements Series Module Attributes​

Only a single Item shall be included in this Sequence.​

Required if a Performed Procedure Step SOP Class was​ involved in the creation of this Series.​

>Include Table 10-11 “SOP Instance Reference Macro Attributes”​

C.8.25.2 Autorefraction Measurements Series Module​

The Autorefraction Measurements IODs use the General Series Module, specialized by the Autorefraction Measurements Series​ Module, to describe the DICOM Series Entity described in Section A.1.2.3, and to define what constitutes a Series for the context of​ Ophthalmic device.​

TableC.8.25.2-1specifiestheAttributesthatidentifyanddescribegeneralinformationabouttheAutorefractionMeasurementsSeries.​

- Standard -​

DICOM PS3.3 2020a - Information Object Definitions​ Page 1143​

Table C.8.25.2-1. Autorefraction Measurements Series Module Attributes​

Only a single Item shall be included in this Sequence.​

Required if a Performed Procedure Step SOP Class was​ involved in the creation of this Series.​

>Include Table 10-11 “SOP Instance Reference Macro Attributes”​

C.8.25.3 Keratometry Measurements Series Module​

TheKeratometryMeasurementsIODsusetheGeneralSeriesModule,specializedbytheKeratometryMeasurementsSeriesModule,​ todescribetheDICOMSeriesEntitydescribedinSectionA.1.2.3,andtodefinewhatconstitutesaSeriesforthecontextofOphthalmic​ device.​

Table C.8.25.3-1 specifies the Attributes that identify and describe general information about the Keratometry Measurements Series.​

Table C.8.25.3-1. Keratometry Measurements Series Module Attributes​

Only a single Item shall be included in this Sequence.​

Required if a Performed Procedure Step SOP Class was​ involved in the creation of this Series.​

>Include Table 10-11 “SOP Instance Reference Macro Attributes”​

C.8.25.4 Subjective Refraction Measurements Series Module​

TheSubjectiveRefractionMeasurementsIODsusetheGeneralSeriesModule,specializedbytheSubjectiveRefractionMeasurements​ Series Module, to describe the DICOM Series Entity described in Section A.1.2.3, and to define what constitutes a Series for the​ context of Ophthalmic device.​

TableC.8.25.4-1specifiestheAttributesthatidentifyanddescribegeneralinformationabouttheSubjectiveRefractionMeasurements​

Series.​

- Standard -​

Page 1144​ DICOM PS3.3 2020a - Information Object Definitions​

Table C.8.25.4-1. Subjective Refraction Measurements Series Module Attributes​

Only a single Item shall be included in this Sequence.​

Required if a Performed Procedure Step SOP Class was​ involved in the creation of this Series.​

>Include Table 10-11 “SOP Instance Reference Macro Attributes”​

C.8.25.5 Visual Acuity Measurements Series Module​

TheVisualAcuityMeasurementsIODsusetheGeneralSeriesModule,specializedbytheVisualAcuityMeasurementsSeriesModule,​ todescribetheDICOMSeriesEntitydescribedinSectionA.1.2.3,andtodefinewhatconstitutesaSeriesforthecontextofOphthalmic​ device.​

Table C.8.25.5-1 specifies the Attributes that identify and describe general information about the Visual Acuity Measurements Series.​

Table C.8.25.5-1. Visual Acuity Measurements Series Module Attributes​

Only a single Item shall be included in this Sequence.​

Required if a Performed Procedure Step SOP Class was​ involved in the creation of this Series.​

>Include Table 10-11 “SOP Instance Reference Macro Attributes”​

C.8.25.6 General Ophthalmic Refractive Macros​

C.8.25.6.1 Cylinder Sequence Macro​

Table C.8.25.6.1-1 describes the Attributes for the Cylinder Sequence Macro​

- Standard -​

DICOM PS3.3 2020a - Information Object Definitions​ Page 1145​

Table C.8.25.6.1-1. Cylinder Sequence Macro Attributes​

C.8.25.6.2 Prism Sequence Macro​

Table C.8.25.6.2-1 describes the Attributes for the Prism Sequence Macro​

Table C.8.25.6.2-1. Prism Sequence Macro Attributes​
