222 • I/O modules

Supply modules 750-610, -611

Technical Data:

Item-No.:

Number of inputs

Current consumption

Internal bit width

Voltage

Current via contacts

Fuse

Operating temperature

Wire connection

Dimensions (mm) WxHxL

750-610

750-611

2

5mA 2

DC 24 V

AC 230 V





max. 6.3 A

5 x 20, 6.3 A

0 °C ... + 55 °C

CAGE CLAMP ; 0.08 mm2 - 2.5 mm2, AWG 28 – 14, 8 – 9 mm Stripped length

12 x 64 x 100, (from upper edge of carrier rail)

Modular I/O System

ETHERNET TCP/IP

I/O modules

Supply modules 750-612 • 223

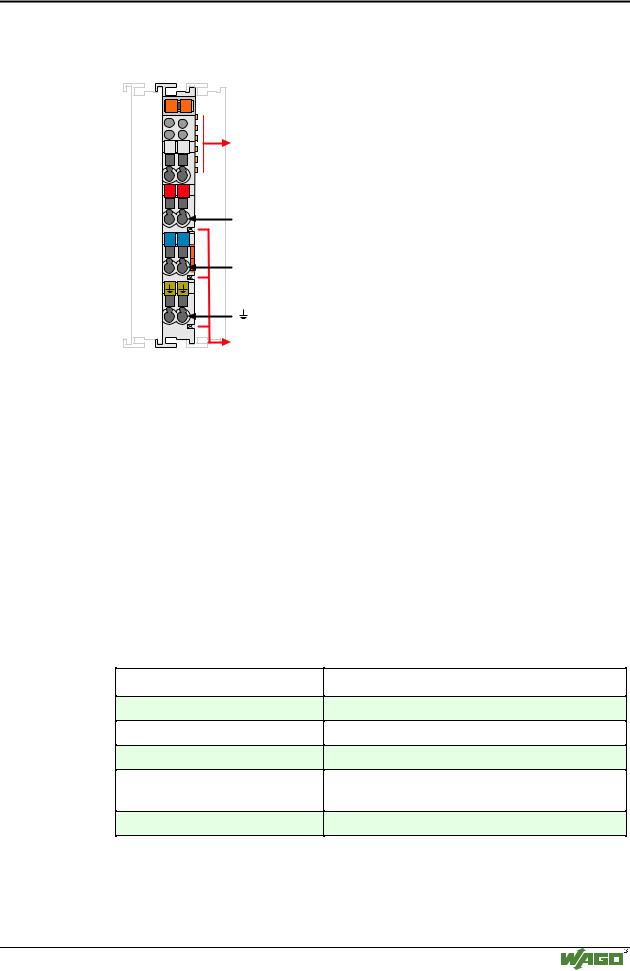

4.6.1.1.5 Supply modules



(AC/DC 230V passive)

750-612

13

14

A





C

B





D

+

+

-

-

750-612

Data contacts

Supply via power jumper contacts 0-230V

0V

Power jumper contacts

Technical description

The supply module feeds field power through the power jumper contacts.

Maximum current supply to all connected modules is 10 A.

Should more current be needed,additional supply modules may be added in the assembly.

Make sure the proper voltage is applied to the supply module. Use caution when changing voltage potential within a node. All modules following the supply module will be powered at the new potential. The following table shows the voltage rating for the supply module.

Technical Data:

Item-No.:

Voltage

Current via contacts

Operating temperature

Wire connection

Dimensions (mm) WxHxL

750-612

AC/DC 0 - 230 V

max. DC 10 A

0 °C ... + 55 °C

CAGE CLAMP ; 0.08 mm2 - 2.5 mm2, AWG 28 – 14, 8 – 9 mm Stripped length

12 x 64 x 100, (from upper edge of carrier rail)

Modular I/O System

ETHERNET TCP/IP

224 • I/O modules

Supply modules 750-613

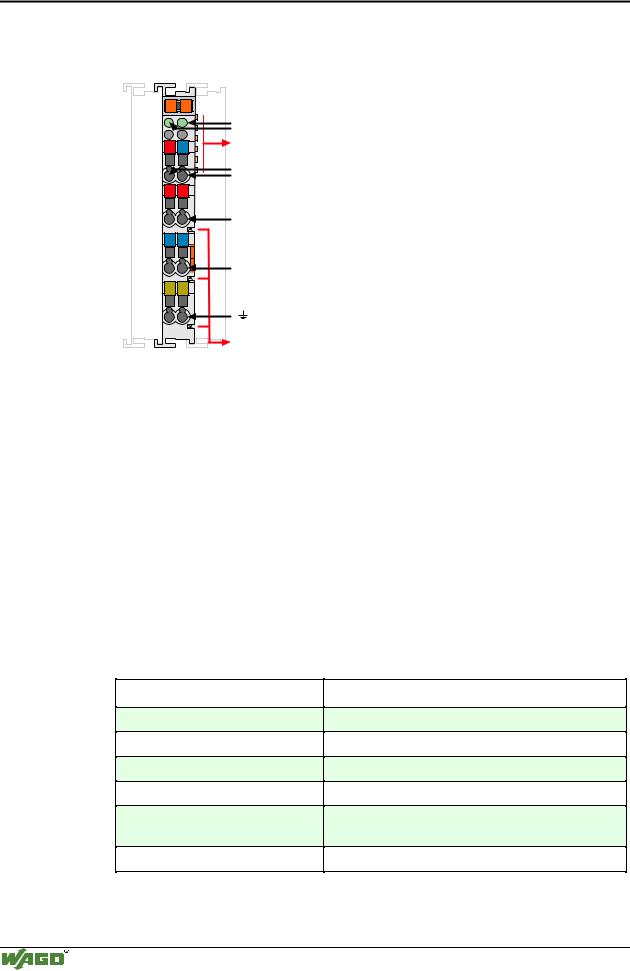

4.6.1.1.6 Supply modules

(DC 24V with DC-DC converter) 750-613

13

14

A





C

B





D

24V 0V

+

+

-

-

PE

PE

750-613

Status voltage supply -Power jumper contacts -System

Data contacts

Supply 24V 0V

Supply via power jumper contacts 24V

0V

Power jumper contacts

Technical description

The supply module feeds field power through the power jumper contacts.

Maximum current supply to all connected modules is 10 A.

Should more current be needed, additional supply modules may be added in the assembly.

The 750-613 supplies voltage to the field side and the internal data bus. It can supply 2A max to the internal data bus. If the sum of the internal data bus current consumption exceeds 2 A, an additional supply module must be added.

Make sure the proper voltage is applied to the supply module. The following table shows the voltage rating for the supply module.

Technical Data:

Item-No.:

Voltage

Current via contacts

Current via internal data bus

Operating temperature

Wire connection

Dimensions (mm) WxHxL

750-613

DC 24 V (-15%/+20%)

max. DC 10 A

max. 2 A

0 °C ... + 55 °C

CAGE CLAMP ; 0.08 mm2 - 2.5 mm2, AWG 28 – 14, 8 – 9 mm Stripped length

12 x 64* x 100, (*from upper edge of carrier rail)

Modular I/O System

ETHERNET TCP/IP

I/O modules

Potential multiplication modules 750-614 • 225

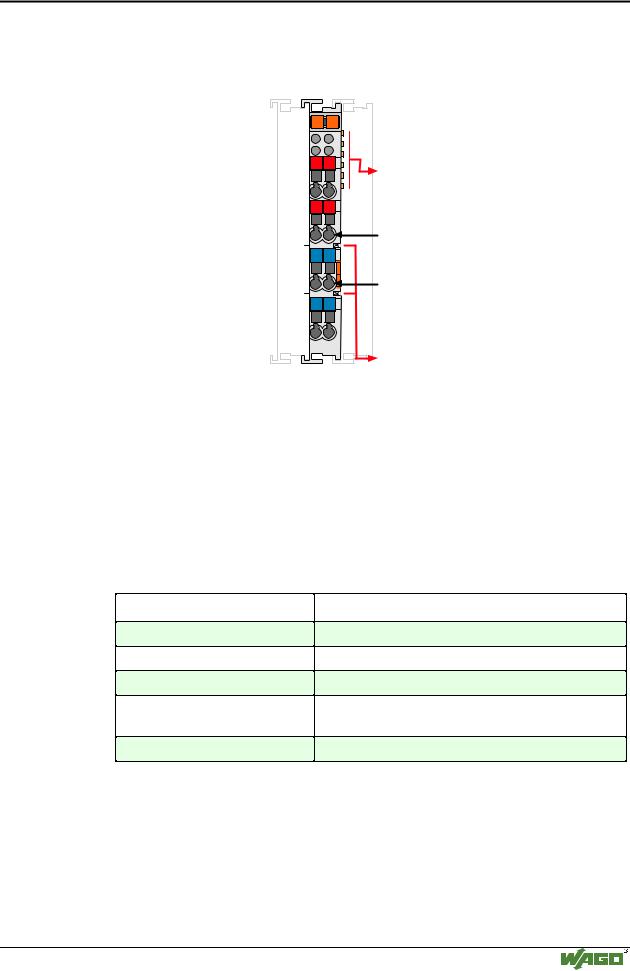

4.6.1.1.7 Potential multiplication modules 750-614

13

14

A





C

B





D

+

+

+

+

-

-

-

-

750-614

Data contacts

0-230V

0V

Power jumper contacts

Technical description

The potential multiplication module allows additional + and - voltage connection points (up to 4 additional). This eliminates the need for external terminal blocks.

Technical Data:

Item-No.:

Voltage

Current via contacts

Operating temperature

Wire connection

Dimensions (mm) WxHxL

750-614

AC/DC 24 V - 230 V

max. 10 A

0 °C ... + 55 °C

CAGE CLAMP ; 0.08 mm2 - 2.5 mm2, AWG 28 – 14, 8 – 9 mm Stripped length

12 x 64 x 100, (from upper edge of carrier rail)

Modular I/O System

ETHERNET TCP/IP

226 • I/O modules

Separation modules 750-616

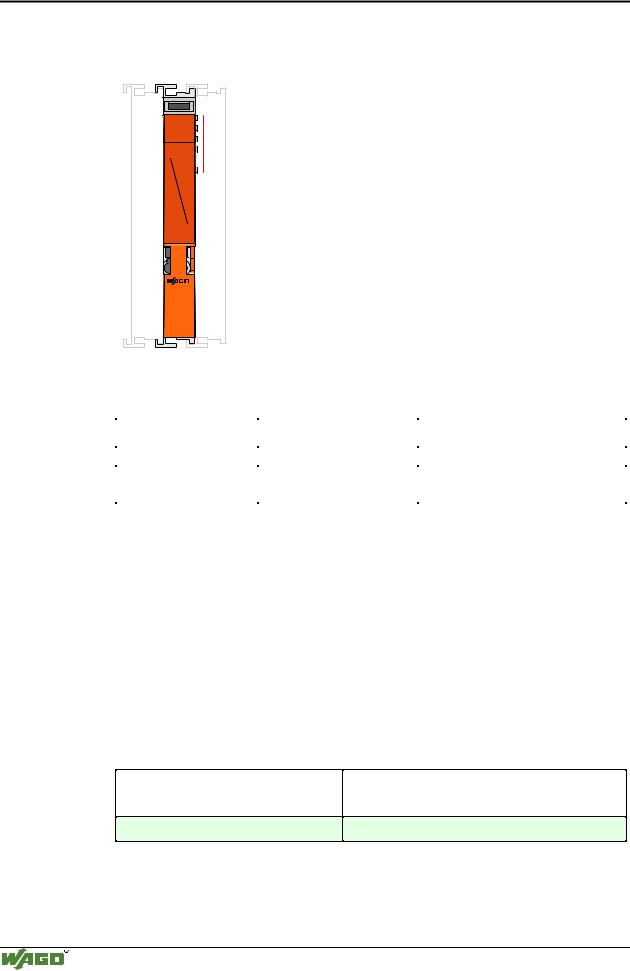

4.6.1.1.8 Separation modules 750-616

Data contacts ACV 230

V 24 DC

750-616/

030-000

I/O modules and variations









Item-No.:

Description

Name

750-616

Separation modules

Separation modules

750-616/030-000

Separation modules

Separation modules



"24 V DC/230 V AC"

"24 V DC /230 V AC"

Technical description

This module allows increased airand creepage distances between different field voltages within a node.

There are two different separation modules. The 750-616 module does not have printing. The 750-616/030-000 has "24 V DC /230 V AC" printed on the front.

Technical Data:

Item-No.:

Dimensions (mm) WxHxL

750-616, 616/030-000

12 x 64* x 100 (*from upper edge of carrier rail)

Modular I/O System

ETHERNET TCP/IP
