192 • I/O modules

Analog Inputs 750-467, (-487)

750-467

Input voltage	Value
0-10V	Binary	Hex.	Dec.	Status
> 10	0111 1111 1111 1111	7F FF	32767	42
10	0111 1111 1111 1XXX	7F F8	32760	0
5	0100 0000 0000 0XXX	40 00	16384	0
2.5	0010 0000 0000 0XXX	20 00	8192	0
1.25	0001 0000 0000 0XXX	10 00	4096	0
0.0781	0000 0001 0000 0XXX	01 00	256	0
0.0049	0000 0000 0001 0XXX	00 10	16	0
0.0024	0000 0000 0000 1XXX	00 08	8	0
0	0000 0000 0000 0XXX	00 07	7	0
0	0000 0000 0000 0XXX	0	0	0

Numerical format for Siemens function blocks

For fieldbus masters with the ability to evaluate the status information within the data word, i.e. Siemens format

The status information is contained in Bit B0 .. B2.

The digitized input is placed at the position Bit B3 .. B15.

750-467/000-200

Input voltage	Value	X E O*)
0-10V	Binary		Hex.	Dec.	Status
>10	0101 0000 0000 0	0 0 1	50 01	20481	42

10	0101 0000 0000 0	0 0 0	50 00	20480	0

5	0011 0000 0000 0	0 0 0	30 00	12288	0

2.5	0010 0000 0000 0	0 0 0	20 00	8192	0

1.25	0001 1000 0000 0	0 0 0	18 00	6144	0

0.0049	0001 0000 0000 1	0 0 0	10 08	4104	0

0	0001 0000 0000 0	0 0 0	10 00	4096	0

*) X : without meaning, E : short circuit or open circuit, O : overflow

Status byte

Bit 7

Bit 6

Bit

Bit 1

Bit

Error

Overrange

Modular I/O System

ETHERNET TCP/IP

I/O modules • 193

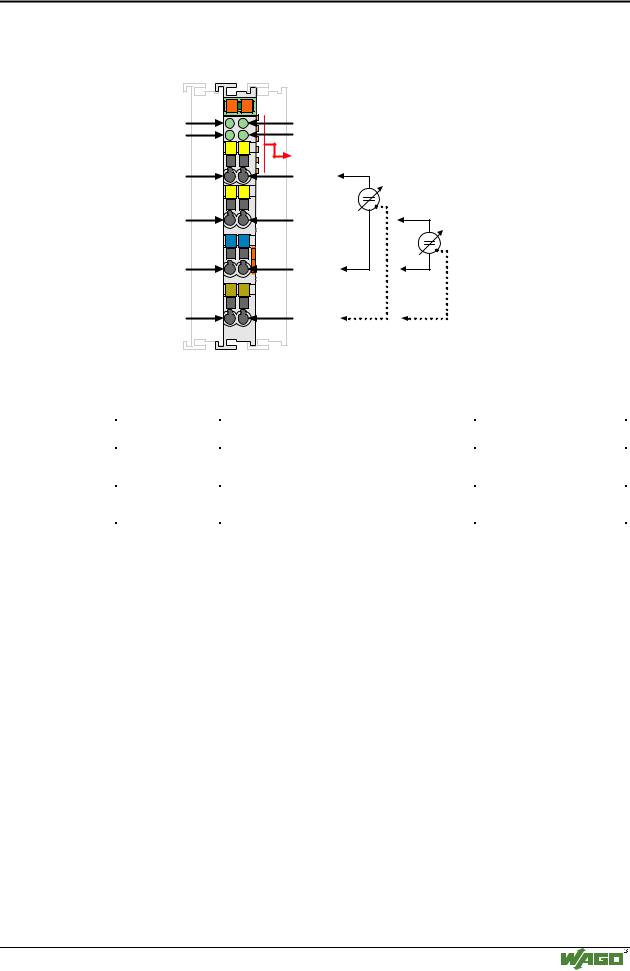

Analog Inputs 750-468, (-488)

4.4.1.1.74 Channel Analog Inputs

0-10V (single-ended)750-468, (-488)

Function AI 1

Function AI 3

AI 1

AI 3

Common

(ground)

Shield (screen)

13	14
A
	C
B
	D
E1	E2
E3	E4
M	M
S	S
750-468

Function AI 2

Function AI 4

Data contacts

AI 2

AI 4

Common (ground)

Shield (screen)

I/O modules and variations

Item-No.:	Description:	Name
750-468	4 Channel Analog Input	4AI 0-10V DC s.e.
	0-10V single-ended
750-468/000-200	4 Channel Analog Input 0-10V single-ended	4AI 0-10V DC s.e.
(formerly 488)	with status information within the data word	(Siemens)

Technical description

This description is only intended for hardware version X X X X 2 A 0 0 - - - -.

The serial number can be found on the right side of the module.

The input channels are single ended and they have a common ground potential.

The inputs are connected to +I and ground. The shield is connected to "S". The connection is made automatically when snapped onto the DIN rail.

These I/O modules are not provided with integrated power jumper contacts. The power supply is made by the data contacts with a DC-DC converter.

The input module can operate with all buscouplers of the

WAGO-I/O-SYSTEM (except for the economy type).

Modular I/O System

ETHERNET TCP/IP

194 • I/O modules

Analog Inputs 750-468, (-488)

Technical Data:

Item-No.:

Number of inputs

Nominal voltage

Input current (internal)

Overvoltage protection

Input signal

Resistance

Resolution

Isolation

Conversion time

Bit width per channel

Configuration

Operating temperature

Wire connection

Dimensions (mm) WxHxL

750-468

via system voltage (DC DC converter)

60 mA

35 V max.

0-10 V

133 kΩ typ.

12 Bit

500V System/power supply

2 ms typ.

16 Bit: Data; optional 8 Bit: Control/Status

None, or via software with the consent of WAGO

0°C....+55°C

CAGE CLAMP ; 0.08 mm2 - 2.5 mm2, AWG 28 – 14, 8 – 9 mm Stripped length

12 x 64* x 100 (*from upper edge of carrier rail)

Numerical format

All analog values will be shown in a unit numerical format. The resolution is 12 Bits.

The following table will explain the numerical format. (750-467, 468). The 3 LSBs are not significant.

750-468

Input voltage	Value
0-10V	Binary	Hex.	Dec.	Status
> 10	0111 1111 1111 1111	7F FF	32767	42

10	0111 1111 1111 1XXX	7F F8	32760	0

5	0100 0000 0000 0XXX	40 00	16384	0

2.5	0010 0000 0000 0XXX	20 00	8192	0

1.25	0001 0000 0000 0XXX	10 00	4096	0

0.0781	0000 0001 0000 0XXX	01 00	256	0

0.0049	0000 0000 0001 0XXX	00 10	16	0

0.0024	0000 0000 0000 1XXX	00 08	8	0

0	0000 0000 0000 0XXX	00 07	7	0

0	0000 0000 0000 0XXX	0	0	0

Modular I/O System

ETHERNET TCP/IP

I/O modules • 195

Analog Inputs 750-468, (-488)

Numerical format for Siemens function blocks

For fieldbus masters with the ability to evaluate the status information within the data word, i.e. Siemens format.

The status information is contained in Bit B0 .. B2.

The digitized input is placed at the position Bit B3 .. B15.

750-468/000-200 (formerly 750-488)

Input	Value	X E O*)
voltage	Binary		Hex.	Dec.	Status
0-10V
>10	0101 0000 0000 0000	0 0 1	50 01	20481	42


10	0101 0000 0000 0000	0 0 0	50 00	20480	0

5	0011 0000 0000 0000	0 0 0	30 00	12288	0


2.5	0010 0000 0000 0000	0 0 0	20 00	8192	0

1.25	0001 1000 0000 0000	0 0 0	18 00	6144	0


0.0049	0001 0000 0000 1000	0 0 0	10 08	4104	0

0	0001 0000 0000 0000	0 0 0	10 00	4096	0

*) X : without meaning, E : short circuit or open circuit, O : overflow

Modular I/O System

ETHERNET TCP/IP

196 • I/O modules

Analog Inputs 750-469, /000-XXX

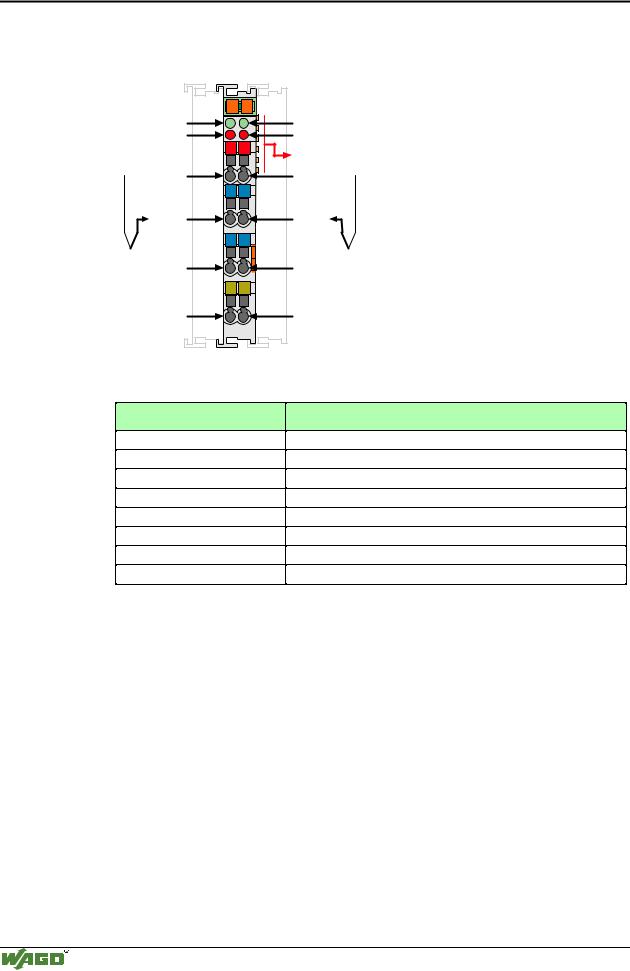

4.4.1.1.8 Input for Thermocouple Modules 750-469, /000-XXX

Function AI 1

Error AI 1

+TC 1

-TC 1

Common

(ground)

Shield (screen)

13	14
A
	C
B
	D
+TC +TC
-TC -TC
M	M
S	S
750-469

Function AI 2

Error AI 2

Data contacts

+TC 2

-TC 2

Common (ground)

Shield (screen)

I/O modules and variations

Item-No.:

750-469

750-469/000-001

750-469/000-002

750-469/000-003

750-469/000-006

750-469/000-008

750-469/000-012

750-469/000-200

Name:

2AI Thermo.(detection of broken wire) /Type K

2AI Thermo.(detection of broken wire) /Type S

2AI Thermo.(detection of broken wire) /Type T

2AI +/- 120mV, (detection of broken wire)

2AI Thermo.(detection of broken wire) /Type J

2AI Thermo.(detection of broken wire) /Type E

2AI Thermo.(detection of broken wire) /Type L

2AI Thermo.(detection of broken wire), Siem. Form.

Technical description

This description is only intended for hardware version X X X X 2 A 0 1 - - - -.

The serial number can be found on the right side of the module.

The following description is preliminary and is applicable only to the factory configuration.

The shield is connected to "S". The connection is made automatically when snapped onto the DIN rail.

These I/O modules are not provided with integrated power jumper contacts. The power supply is made by the data contacts with a DC-DC converter.

The thermocouple module can operate with all buscouplers of the WAGO-I/O-SYSTEM (except for the economy type).

Modular I/O System

ETHERNET TCP/IP
