182 • I/O modules

Analog Inputs 750-462, /000-XXX

750-462/000-006, Type J

T[°C]	Value [hex]	Value [dec]	Status byte	LED
			[hex]
<-100	<FC18	<-1000	41	on

-100.0	FC18	-1000	00	off

0.0	0000	0	00	off

100.0	03E8	1000	00	off

200.0	07D0	2000	00	off


300.0	0BB8	3000	00	off

400.0	0FA0	4000	00	off

500.0	1388	5000	00	off

1000.0	2710	10000	00	off


1200.0	2EE0	12000	00	off

>1200	>2EE0	>12000	42	on

Open circuit	Room temperature		00	off

750-462/000-007, Type B

T[°C]	Value [hex]	Value [dec]	Status byte	LED
			[hex]
<-600	<1770	<6000	41	on


600.0	1770	6000	00	off

700.0	1B58	7000	00	off

800.0	1F40	8000	00	off

900.0	2328	9000	00	off

1000.0	2710	10000	00	off

1500.0	3A98	15000	00	off


1600.0	3E80	16000	00	off

1700.0	4268	17000	00	off

1800.0	4650	18000	00	off

>1800	>4650	>18000	42	on


Open circuit	Room temperature		00	off

Modular I/O System

ETHERNET TCP/IP

I/O modules • 183

Analog Inputs 750-462, /000-XXX

750-462/000-008, Type E

T[°C]	Value [hex]	Value [dec]	Status byte [hex]	LED
<-100	<FC18	<-1000	41	on


0.0	0000	0	00	off

100.0	03E8	1000	00	off


200.0	07D0	2000	00	off

300.0	0BB8	3000	00	off

400.0	0FA0	4000	00	off

500.0	1388	5000	00	off


600.0	1770	6000	00	off

700.0	1B58	7000	00	off

800.0	1F40	8000	00	off

900.0	2328	9000	00	off


999.0	2706	9990	00	off

>999	>2706	>9990	42	on

Open circuit	Room temperature		00	off

750-462/000-011, Type U

T[°C]	Value [hex]	Value [dec]	Status byte [hex]	LED
<-25	<FF06	<-250	41	on


-25.0	FF06	-250	00	off

0.0	0000	0	00	off


50.0	01F4	500	00	off

100.0	03E8	1000	00	off

200.0	07D0	2000	00	off

300.0	0BB8	3000	00	off


400.0	0FA0	4000	00	off

500.0	1388	5000	00	off

590.0	170C	5900	00	off

>590	>170C	>5900	42	on


Open circuit	Room temperature		00	off

Modular I/O System

ETHERNET TCP/IP

184 • I/O modules

Analog Inputs 750-462, /000-XXX

750-462/000-011, Type U -25°C -600°C

T[°C]	Value [hex]	Value [dec]	Status byte	LED
			[hex]
<-25	<FF06	<-250	41	on

-25.0	FF06	-250	00	off

37.5	0177	375	00	off

100.0	03E8	1000	00	off

162.5	0659	1625	00	off


225.0	08CA	2250	00	off

287.5	0B3B	2875	00	off

350.0	0DAC	3500	00	off

412.5	101D	4125	00	off


475.0	128E	4750	00	off

537.5	14FF	5375	00	off

600.0	1770	6000	00	off

>600	1770	6000	42	on

No identification of open circuit, measuring value correspond to 0°C.

750-462/000-050, Type K without Cold junction compensation

T[°C]	Value [hex]	Value [dec]	Status byte	LED
			[hex]
<-100	<FC18	<-1000	41	on

-100.0	FC18	-1000	00	off

0,0	0000	0	00	off


200.0	07D0	2000	00	off

350.0	0DAC	3500	00	off

500.0	1388	5000	00	off

650.0	1964	6500	00	off


800.0	1F40	8000	00	off

950.0	251C	9500	00	off


1100.0	2AF8	11000	00	off

1250.0	30D4	12500	00	off

1370.0	3584	13700	00	off

>1370	>3584	>13700	42	on


Open circuit	0000	0	0	off

Modular I/O System

ETHERNET TCP/IP

I/O modules • 185

Analog Inputs 750-462, /000-XXX

750-462/000-061, Type U without Cold junction compensation

T[°C]	Value [hex]	Value [dec]	Status byte [hex]	LED
<-25	<FF06	<-250	41	on


-25.0	FF06	-250	00	off

0.0	0000	0	00	off


50.0	01F4	500	00	off

100.0	03E8	1000	00	off

150.0	05DC	1500	00	off

200.0	07D0	2000	00	off


250.0	09C4	2500	00	off

300.0	0BB8	3000	00	off

400.0	0FA0	4000	00	off

500.0	1388	5000	00	off


600.0	1770	6000	00	off

>600	1770	6000	42	on

Open circuit	0000	0	0	off

Modular I/O System

ETHERNET TCP/IP

186 • I/O modules

Analog Inputs 750-465, -466, (-486)

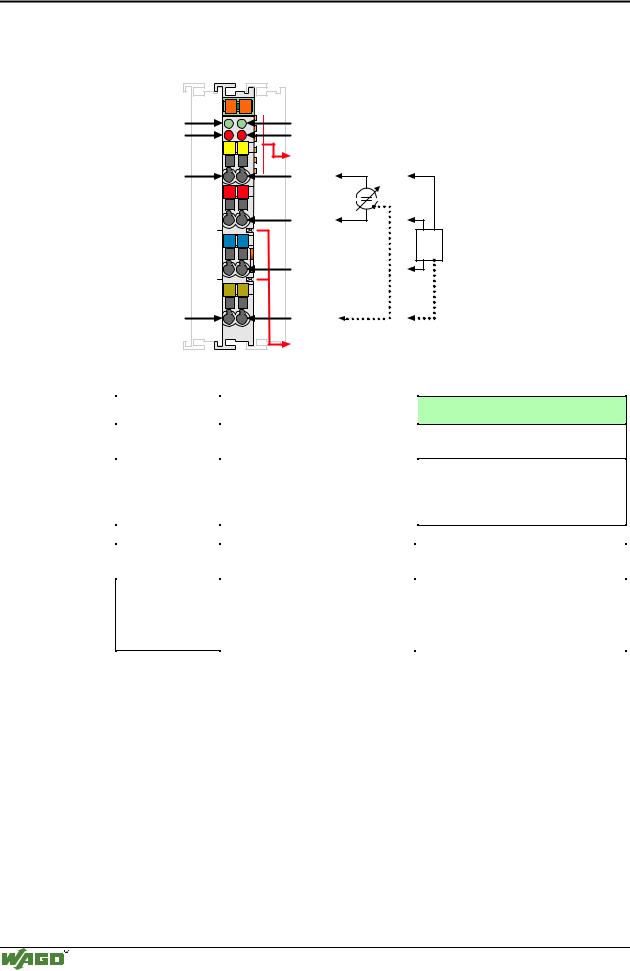

4.4.1.1.52 Channel Analog Inputs

(0-20mA / 4-20mA single-ended) 750-465, -466, (-486)

Function AI 1

Error AI 1

AI 1

Shield (screen)

13	14
A
	C
B
	D
E1	E2
+	+
0V	0V
S	S
750-465

Function AI 2

Error AI 2

Data contacts

AI 2

24V

Shield (screen)

Power jumper contacts

I/O modules and variations

Item-No.:	Description
750-465	2 Channel Analog Input
	0-20 mA; single-ended
750-465/000-200	2 Channel Analog Input
	0-20 mA; single-ended
	with status infomation within the
	data word

Name

2 AI 0-20 mA s.e.

S5-FB

750-466	2 Channel Analog Input	2 AI 4-20 mA s.e.
	4-20 mA; single-ended

750-466/000-200

(formerly 750486)

2 Channel Analog Input	2 AI 4-20 mA s.e.
4-20 mA; single-ended	S5-FB
with status infomation within the
data word

Technical description

This description is only intended for hardware version X X X X 2 A 0 1 - - - -. The serial number can be found on the right side of the module.

The input channels are single ended and they have a common ground potential.

The inputs are connected to +I. Via 24 V / 0 V terminals power can be provided directly to the sensor from the module. Power connections are made automatically from module to module when snapped onto the DIN rail.

The shield is connected to "S". The connection is made automatically when snapped onto the DIN rail.

Modular I/O System

ETHERNET TCP/IP
