Page 1606​

DICOM PS3.3 2020a - Information Object Definitions​

Attribute Name​

Tag​

Type​

Attribute Description​

Radiation Generation Mode​

(300A,067B)​

1C​

Radiation Generation Modes defining the type of radiation and​

Sequence​





characteristics of the beam generated.​







RadiationGenerationModesshallcharacterizedifferentprimary​







beam fluence.​







The number of Items included in this Sequence shall equal the​







value of Number of Radiation Generation Modes(300A,0685).​







RequiredifNumberofRadiationGenerationModes(300A,0685)​







is present.​

>Radiation Generation Mode​

(300A,0601)​

1​

Index of this Item in this Sequence.​

Index​





The value shall start at 1 and increase monotonically by 1.​







>Radiation Generation Mode​

(300A,067C)​

1​

User-definedlabelthatidentifiesthisRadiationGenerationMode.​

Label​





See Section C.36.2.2.7.1.3.​







>Radiation Generation Mode​

(300A,067D)​

2​

User-defined description of the Radiation Generation Mode.​

Description​







>Radiation Generation Mode​

(300A,067E)​

1C​

A vendor-specified machine-readable code that unambiguously​

Machine Code Sequence​





identifies this Radiation Generation Mode.​







Only a single Item shall be included in this Sequence.​







RequiredifRTRadiationPhysicalandGeometricContentDetail​







Flag (300A,0638) equals FULL. May be present otherwise.​







See Section C.36.2.2.7.1.2.​

>>Include Table 8.8-1 “Code Sequence Macro Attributes”.​

No Baseline CID is defined.​

>Radiation Type Code​

(300A,067F)​

1​

Type of radiation for this Radiation Generation Mode.​

Sequence​





Only a single Item shall be included in this Sequence.​







>>Include Table 8.8-1 “Code Sequence Macro Attributes”.​

CID is defined by invocation.​

>Energy Unit Code Sequence​

(300A,0684)​

1​

The unit of energy values specified in Nominal Energy​







(300A,0680),MinimumNominalEnergy(300A,0681),Maximum​







Nominal Energy (300A,0682).​







Only a single Item shall be included in this Sequence.​

>>Include Table 8.8-1 “Code Sequence Macro Attributes”.​

CID is defined by invocation.​

>Nominal Energy​

(300A,0680)​

1C​

The nominal beam energyin units as defined in the Energy Unit​







Code Sequence (300A,0684).​







RequiredifMinimumNominalEnergy(300A,0681)andMaximum​







Nominal Energy (300A,0682) are not present.​







See Section C.36.2.2.7.1.1.​

>Minimum Nominal Energy​

(300A,0681)​

1C​

The minimum nominal beam energyin units as defined in the​

Energy Unit Code Sequence (300A,0684).​

Required if Nominal Energy (300A,0680) is not present.​

See Section C.36.2.2.7.1.1.​

- Standard -​



DICOM PS3.3 2020a - Information Object Definitions​

Page 1607​

Attribute Name​

Tag​

Type​

Attribute Description​



>Maximum Nominal Energy​

(300A,0682)​

1C​

The maximum nominal beam energy in units as defined in the​







Energy Unit Code Sequence (300A,0684).​









Required if Nominal Energy (300A,0680) is not present.​







See Section C.36.2.2.7.1.1.​



>Radiation Fluence Modifier​

(300A,0683)​

1​

IdentifiesthetypeoffluencemodifierofthisRadiationGeneration​

Code Sequence​





Mode.​









One or more Items shall be included in this Sequence.​

>>Include Table 8.8-1 “Code Sequence Macro Attributes”.​

CID is defined by invocation.​



>Radiation Device​

(300A,065A)​

2​

Keys identifying the configuration and commissioning data used​

Configuration and​





as input for treatment planning of this Instance.​



CommissioningKeySequence​





Value Type (0040,A040) is constrained to value UIDREF.​







Zero or more Items shall be included in this Sequence.​

>>Include Table 10-2 “Content Item Macro Attributes Description”.​No Baseline CID defined.​

C.36.2.2.7.1 Radiation Generation Mode Macro Attribute Description​

C.36.2.2.7.1.1 Energy Attributes​

The Nominal Energy (300A,0680) parameter is provided for beams where a single discrete energy is annotated by that value. Energy​ modulationcanbeusedattheControlPointlevel(bothdiscreteandcontinuous),inwhichcasetheMinimalNominalEnergy(300A,0681)​ and Maximal Nominal Energy (300A,0682) are used.​

C.36.2.2.7.1.2 Radiation Generation Mode Machine Code​

When two Radiation Generation Modes differ in any value ofNominal Energy (300A,0680), Minimum Nominal Energy (300A,0681),​ Maximum Nominal Energy (300A,0682) or any code value(s) of theRadiation Type Code Sequence (300A,067F) or the Radiation​ Fluence Modifier Code Sequence(300A,0683), the Radiation Generation Modes must have different values for Radiation Generation​ Mode Machine Code. Even if all those attributes have the same values, the two modes may still have a different value for Radiation​ Generation Mode Machine Code, e.g., when other device-specific beam generation steering parameters differ.​

C.36.2.2.7.1.3 Radiation Generation Mode Label​

RadiationGenerationModeLabel(300A,067C)shoulduniquelyidentifyaspecificmodewithinatreatmentdevice.Thelabelisintended​ onlyfordisplaytohumanreaders,whiletheauthoritativedefinitionoftheRadiationGenerationModeiscontainedintheotherattributes​ of the Sequence.​

C.36.2.2.8 RT Beam Limiting Devices Definition Macro​

This Macro describes the configuration of Beam Limiting Devices which cannot vary during delivery.​

Table C.36.2.2.8-1. RT Beam Limiting Devices Definition Macro Attributes​

Attribute Name​

Tag​

Type​

Attribute Description​

NumberofRTBeamLimiting​ (300A,0641)​

1C​

Number of RT Beam Limiting Devices in the RT Beam Limiting Device​

Devices​





Definition Sequence (300A,064D).​

Required if RT Radiation Physical and Geometric Content Detail Flag​ (300A,0638) equals FULL. May be present otherwise.​

- Standard -​

Page 1608​

DICOM PS3.3 2020a - Information Object Definitions​

Attribute Name​

Tag​

Type​

Attribute Description​

RT Beam Limiting Device​

(300A,064D)​

1C​

Beam limiting device (collimator), such as jaw or leaf (element) sets.​

Definition Sequence​





The number of Items included in this Sequence shall equal the value of​













Number of RT Beam Limiting Devices (300A,0641).​







RequiredifNumberofRTBeamLimitingDevices(300A,0641)ispresent​







and has a non-zero value.​

>Device Index​

(3010,0039)​

1​

Index of the Device in this Sequence.​







The value shall start at 1 and increase monotonically by 1.​

>ReferencedDefinedDevice​ (300A,0602)​

1C​

Device Index value that links the device defined by this Sequence Item​

Index​





tothecorrespondingdeviceinanRTRadiationInstance.Thedescription​







of the two devices may or may not be the same.​







The value is the index of a device in the RT Beam Limiting Device​







Definition Sequence (300A,064D) within the single SOP Instance​







referenced by Referenced RT Instance Sequence (300A,0631).​







RequirediftheInstancereferencedinReferencedRTInstanceSequence​







(300A,0631) contains the device that corresponds to the device defined​







by this Sequence Item.​

>Include Table C.36.2.2.3-1 “RT Accessory Device​

CID is defined by invocation.​

Identification Macro Attributes”.​





>Beam Modifier Orientation​ (300A,0645)​

1​

Angle in degrees of the Beam Modifier Coordinate System with respect​

Angle​





totheBaseBeamModifierCoordinateSystem.TheangleisaContinuous​







Rotation Angle, see Section C.36.1.1.5.​







If Device Type Code Sequence (3010,002E) contains either (130331,​







DCM, "Leaf Pairs"), or (130333, DCM, "Single Leaves") the motion of the​







RT Beam Delimiters is along the x-axis of the Beam Modifier Definition​







Plane.​







See Section C.36.1.1.9.​

>RT Beam Limiting Device​

(300A,0642)​

2​

Distance in mm from the reference location as specified by RT Device​

Proximal Distance​





DistanceReferenceLocationCodeSequence(300A,0659)totheproximal​







end of beam limiting device (collimator) along the beam axis.​







See Section C.36.2.2.8.1.4.​

>RT Beam Limiting Device​

(300A,0643)​

2​

Distance in mm from the reference location as specified by RT Device​

Distal Distance​





Distance Reference Location Code Sequence (300A,0659) to the distal​







end of beam limiting device (collimator) along the beam axis.​







See Section C.36.2.2.8.1.4.​

>ParallelRTBeamDelimiter​ (300A,0647)​

1C​

Device that uses parallel beam delimiters to limit the beam.​

Device Sequence​





Required if Device Type Code Sequence (3010,002E) contains either​













(130331, DCM, "Leaf Pairs") or (130333, DCM, "Single Leaves").​







Only a single Item shall be present in the Sequence.​

>>Number of Parallel RT​

(300A,0648)​

1​

Number of beam delimiters parallel to the axis of motion. E.g., a beam​

Beam Delimiters​





limitingdevicejawpairisrepresentedas1paralleldelimiter,anMLCwith​







100 leaf pairs or with 100 single leaves is represented as 100 parallel​







delimiters.​

See Section C.36.2.2.8.1.3.​

- Standard -​



DICOM PS3.3 2020a - Information Object Definitions​

Page 1609​

Attribute Name​

Tag​

Type​

Attribute Description​



>>Parallel RT Beam​

(300A,0644)​

1​

A code used to identify the orientation of the beam limiting device.​

DelimiterDeviceOrientation​





Only a single Item shall be present in the Sequence.​



Label Code Sequence​







>>>IncludeTable8.8-1“CodeSequenceMacroAttributes”.​DCID 9547 “RT Beam Limiting Device Orientation Labels”.​









See Section C.36.2.2.8.1.1.​



>>Parallel RT Beam​

(300A,064E)​

1​

The operation mode of Parallel RT Beam Delimiters used to define a​

Delimiter Opening Mode​





treatment aperture.​









Enumerated Values:​









BINARY​ leaf positions constrained to two states: open and closed​







VARIABLE​any leaf position may be specified​



>>Parallel RT Beam​

(300A,0649)​

1​

Boundaries in mm of parallel beam delimiters. These are defined along​

Delimiter Boundaries​





the axis perpendicular to the motion of the delimiters of the RT Beam​







Limiting Device Type (300A,00B8) with respect to the Beam Modifier​







Coordinate System. The order of values shall increase monotonically.​







See Section C.36.2.2.8.1.2.​









N+1valuesshallbeprovided,whereNistheNumberofParallelRTBeam​







Delimiters (300A,0648).​



>>Parallel RT Beam​

(300A,064F)​

1C​

Specifies the mounting side identified by the direction from the tip to the​

DelimiterLeafMountingSide​





tail of the delimiter parallel to the axis specified by Device Type Code​







Sequence (3010,002E).​









Enumerated Values:​









P​Positive mounting side. The axis intercept of the leaf tip is less than​







the axis intercept of the leaf tail.​









N​Negative mounting side. The axis intercept of the leaf tip is greater​







than the axis intercept of the leaf tail.​









M​valuesshallbeprovided,whereMistheNumberofParallelRTBeam​







Delimiters(300A,0648),intheorderoftheParallelRTBeamDelimiter​







Boundaries (300A,0649).​









RequiredifDeviceTypeCodeSequence(3010,002E)contains(130333,​







DCM, "Single Leaves").​









See Section C.36.2.2.8.1.3.​



>Fixed RT Beam Delimiter​

(300A,0646)​

1C​

Device that uses a fixed aperture to limit the beam.​



Device Sequence​





RequiredifDeviceTypeCodeSequence(3010,002E)ispartofCID9545​













Fixed Beam Limiting Device Types.​









Only a single Item shall be included in this Sequence.​



>>Include Table 10.38-1 “Outline Definition Macro​

The Outline is defined on the Beam Modifier Definition Plane.​

Attributes”.​









C.36.2.2.8.1 RT Beam Limiting Device Definition Macro Attribute Description​

C.36.2.2.8.1.1 Parallel RT Beam Delimiter Device Orientation Label Code​

The value of Parallel RT Beam Delimiter Device Orientation Label Code Sequence (300A,0644) shall be choosen as follows:​

When the value of Beam Modifier Orientation Angle (300A,0645) equals zero the code shall be (130334, DCM, "X Orientation").​

When the value of Beam Modifier Orientation Angle (300A,0645) equals 90 the code shall be (130335, DCM, "Y Orientation").​

- Standard -​

Page 1610​

DICOM PS3.3 2020a - Information Object Definitions​

When the value of Beam Modifier Orientation Angle (300A,0645) is not zero or 90, the label should be chosen to best reflect the user​ perception or another code may be used.​

C.36.2.2.8.1.2 Parallel RT Beam Delimiter Boundaries​

The Parallel RT Beam Delimiter Boundaries (300A,0649) shall be the positions of the mechanical boundaries (projected on the Beam​ ModifierDefinitionPlanedefinedbytheRTBeamModifierDefinitionDistance(300A,0688))betweenbeamdelimiterelements.These​ are fixed for a given beam limiting device. Parallel RT Beam Delimiter Positions (300A,064A) are values specific to a given Control​ Point, specifying the beam limiting device element openings.​

C.36.2.2.8.1.3 Number of Parallel RT Beam Delimiters​

Y

Number of Parallel

RT Beam Delimiters

5

4

3

2

1

X

tail

tip

tail

tip

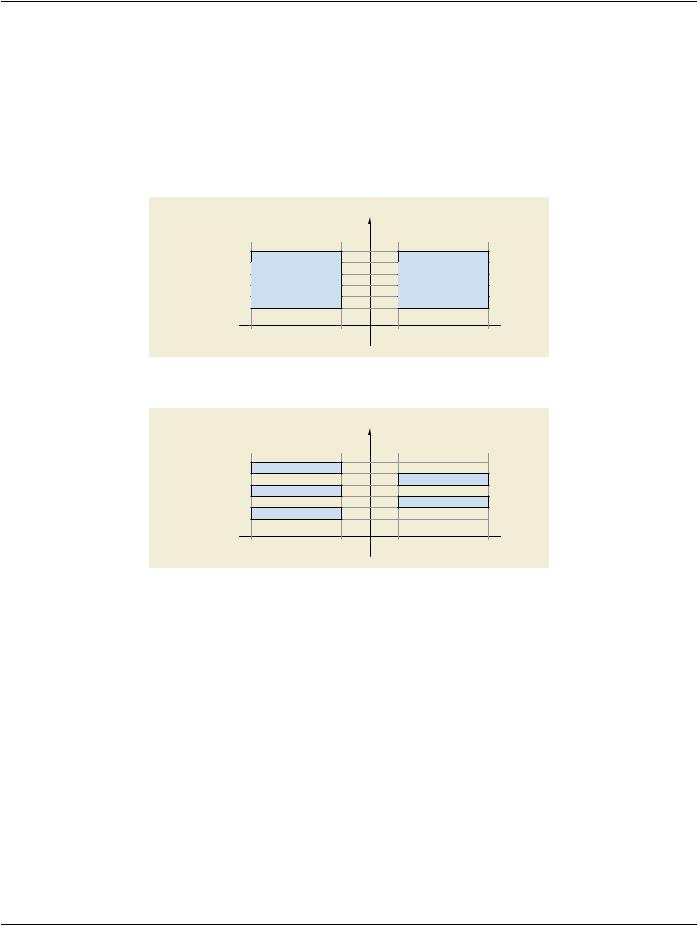

Figure C.36.2.2.8.1-1. Number of Parallel RT Beam Delimiters for X Leaf Pairs​

Y

Number of Parallel

RT Beam Delimiters

5

4

3

2

1

X

tail

tip

tail

tip

Figure C.36.2.2.8.1-2. Number of Parallel RT Beam Delimiters for X Single Leaves​

InexampleinFigureC.36.2.2.8.1-2thedelimiterslabeled1,3and5haveaParallelRTBeamDelimiterLeafMountingSide(300A,064F)​ value of N (negative direction) and the delimiters labeled 2 and 4 have a Parallel RT Beam Delimiter Leaf Mounting Side value of P​ (positive direction).​

C.36.2.2.8.1.4 RT Beam Limiting Device Proximal Distance and RT Beam Limiting Device Distal Distance​

ThefollowingfigureshowstheRTBeamLimitingDeviceProximalDistance(300A,0642)andRTBeamLimitingDeviceDistalDistance​ (300A,0643).​

In this example the reference location specifed by the RT Device Distance Reference Location Code Sequence (300A,0659) has the​ value (130358, DCM, "Nominal Radiation Source Location").​

- Standard -​

Смотрите также:

«ДОХОДЫ, РАСХОДЫ И ПРИБЫЛЬ КОММЕРЧЕСКОГО БАНКА.»
«ДОХОДЫ, РАСХОДЫ И ПРИБЫЛЬ КОММЕРЧЕСКОГО БАНКА.»
Значение, сущность и содержание социально — педагогической деятельности в организации для детей-сирот и детей, оставшихся без попечения родителей
__RGR2
__RGR2
_11_А. Франс для эл версии
_индив анализ данных
- Интерфейс 485 и оптопорт 11
:Конвергентный подход к проектированию дополнительных общеобразовательных общеразвивающих программ
