Analog Outputs 750-550, -556, (-580)

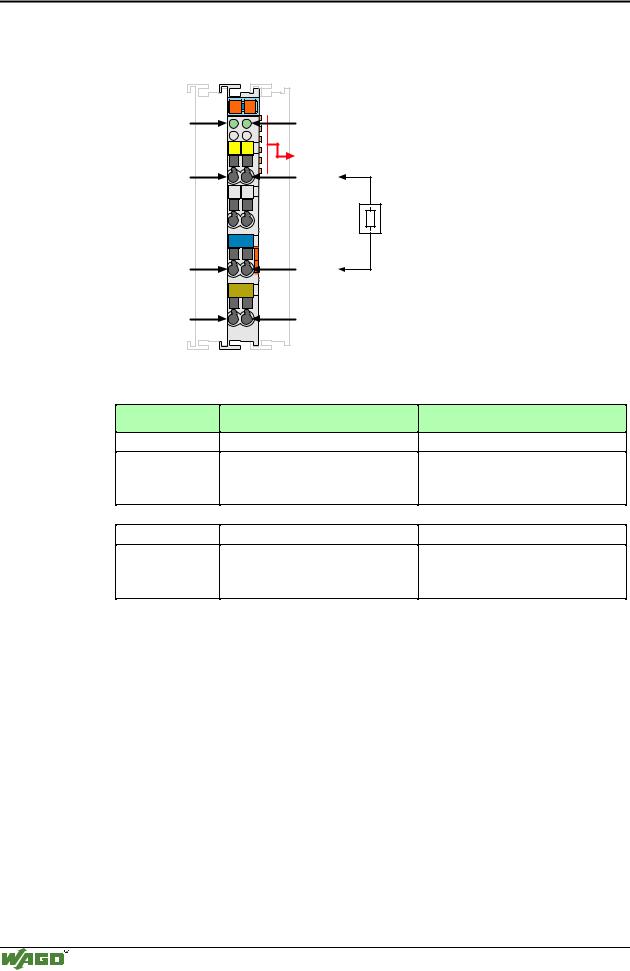

4.5.1.1.1 2 Channel Analog Outputs
(DC 0-10V / ± 10V) 750-550, -556, (-580)
|
13 |
14 |
Function AO 1 |
A |
|
|
C |
|
B |
|
|
|
D |
|
A1 |
A2 |
AO 1 |
|
|
M
M
Common (ground)
S
S
Shield (screen)
750-550
Function AO 2
Data contacts
AO 2
Common (ground)
Shield (screen)
I/O modules and variations
Item-No.: Description
750-550
750-550/000-200 formerly 750-580
750-556
750-556/000-200
2 Channel Analog Output, 0-10V
2 Channel Analog Output, 0-10V with status infomation within the data word
2 Channel Analog Output, ± 10V
2 Channel Analog Output, ± 10V with status infomation within the data word
Name
2AO 0-10V DC
2AO 0-10V DC Siemens Format
2AO ±10V DC
2AO ±10V DC Siemens Format
Technical description
This description is only intended for hardware version X X X X 2 A 0 1 - - - -. The serial number can be found on the right side of the module.
The output signal of 750-550 is a 0-10 V signal, the output signal of 750-556 is a ± 10 V signal.
Sensors should be connected to "O" and to the common ground.
The shield is connected to "S". The connection is made automatically when snapped onto the DIN rail.
These I/O modules are not provided with integrated power jumper contacts. The power supply is made by the data contacts with a DC-DC converter.
The output module can operate with all buscouplers of the
WAGO-I/O-SYSTEM (except for the economy type).
