Versatility & Innovati
Norden understands that one size does not fit all, so we offer a full complement of options, each designed to help you get the most out of your tube filling machine by boosting your production edge. Whether it’s welding options or high performance design, our machines can be optimized to best suit your needs.

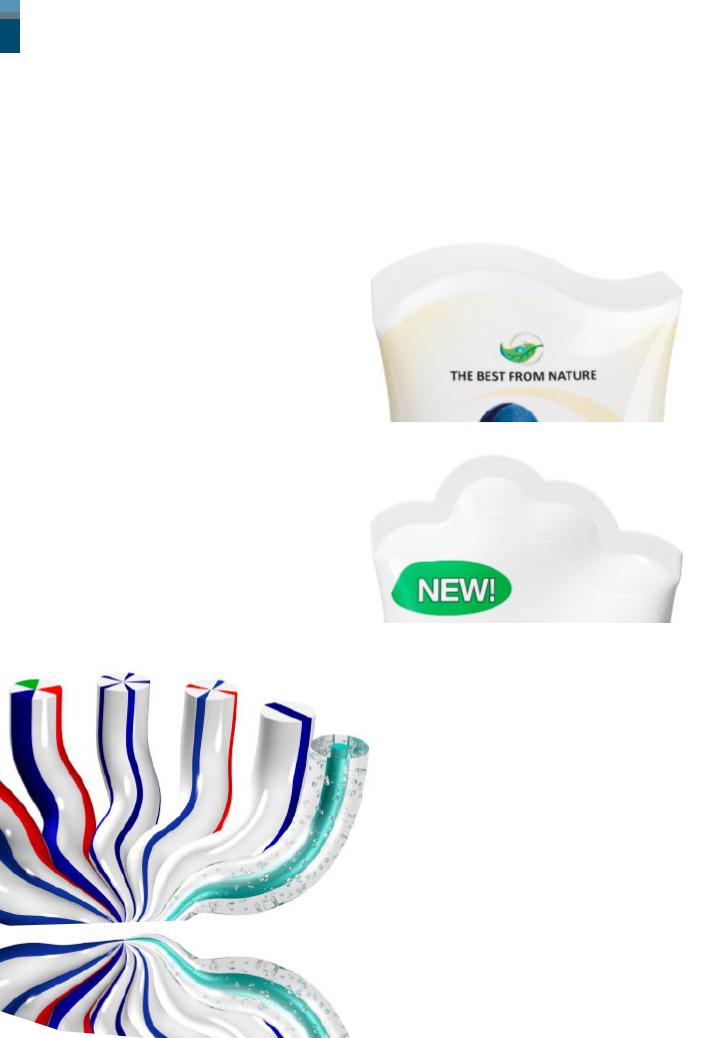

Design-A-Seal®
Design-A-Seal® makes it possible to alter the appearance of tubes without compromising production output or seal integrity. Design variations include rounded, angular, or wide shapes, which can all be considered and incorporated into the package design.
Multi-color filling
This is the filling of multiple colors at the same time into one tube, typified by 3-color striped toothpaste. The striking look is achieved by three multiple pumps pumping the different colors through one complex filling nozzle, thus creating the eye-catching striped product.
on

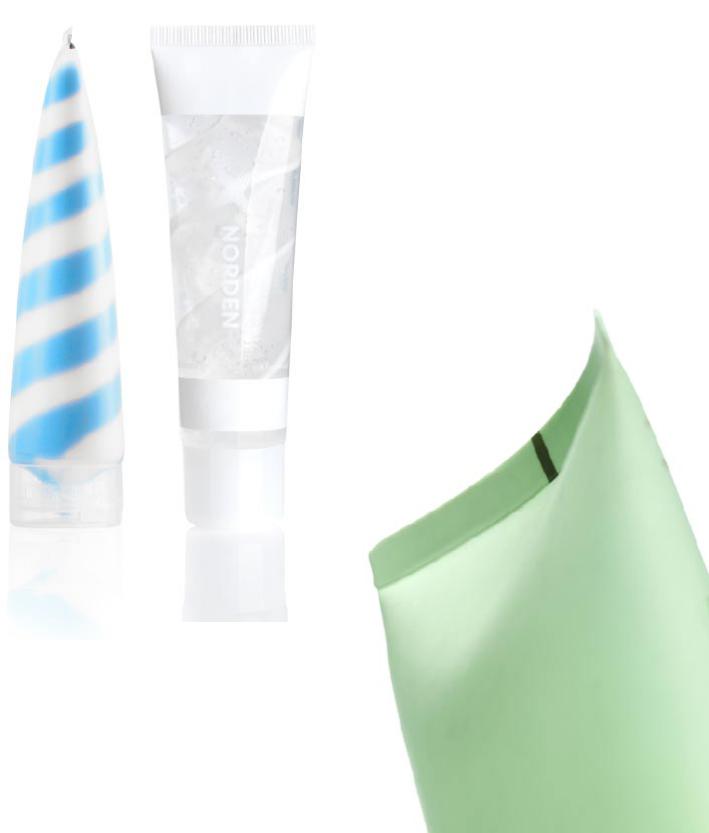

Scoop Seal®
Scoop Seal® has an ergonomic design which provides the perfect grip to squeeze all of the product from the tube. Its compact design allows more space in each tube tray and pallet, maximizing storage capacity.
Swirl Filling
Our latest innovation, Norden Swirl Filling, offers you even more possibilities to develop new, unique and exciting products. The system is extremely flexible, utilizing servo motors to control the filling operation, tube lift at filling and the rotation of
the tube, which means the filling profile can be optimized to suit the product while giving exact control for superb visual effects.
Technical information

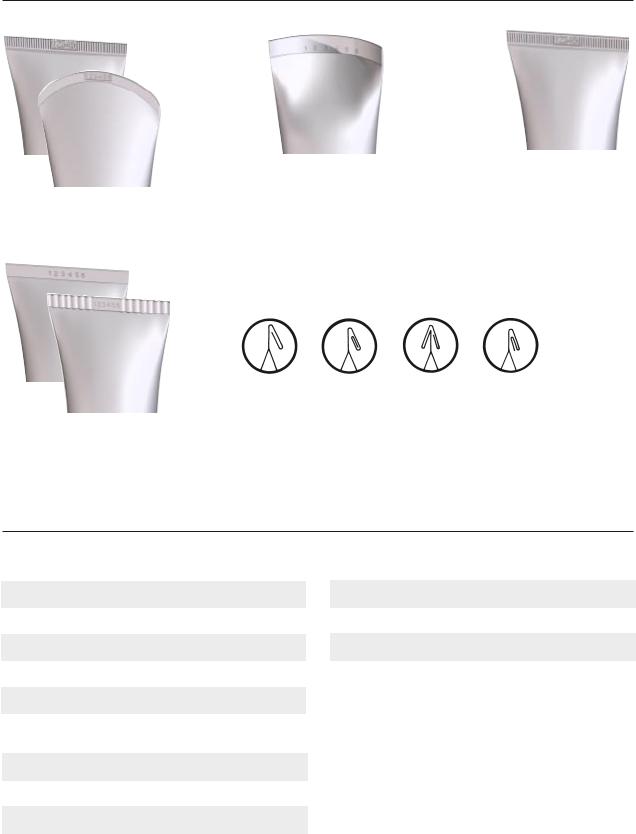

Tube sealing options
Hot Air sealing |
Scoop Seal® |
High Frequency sealing |
For plastic and laminate tubes. |
For plastic and laminate tubes. |
For aluminium-laminate tubes. |
Metal folding types
1. |
2. |
3. |
4. |
Metal folding |
|
|
|
For aluminium tubes. |
|
|
|
Specifications
|
|
|
|
Shipping specifications |
NM 702 |
Store Magazine |
|
|
|
|
|
(NSM 180) |
|||
|
|
|
|
|
|
|
|
Running capacity (max tubes/min) 1 |
|
80 |
|
|
Net weight, approx. |
2000 kg |
300 kg |
Filling volume 2 |
|
1–300 ml |
|
|
Gross weight (case), approx. |
2400 kg |
500 kg |
Dosing accuracy |
|
±0,1–0,5 % |
|
|
Volume, approx. |
11,8 m3 |
3,7 m3 |
Tube length |
|
50–250 mm |
|
|
|
|
|
Tube diameter 6 |
|
10–60 mm |
|
|
|
|
|
|
|
|
|
1 |
Depending on tube size, filling product and quality of tube and |
||
|
M |
HF |
HA |
|
filling material. |
|
|
Power consumption (max, kW) |
2 |
8 |
6 |
2 |
An optional design for filling volumes up to 600 ml is available on |
||
|
request. |
|
|
||||
|
|
|
|
3 |
Depending on tube size and material. |
|
|
Air consumption 4 (Nm3/h) |
10 |
15 |
40–70 3 |
4 |
Air pressure MPa 0,6 (6 bar). |
|
|
|
|
|
|
5 |
Water pressure – min 2 bar in to the machine and max 0,5 bar |
||
Water consumption 5 (l/min) |
– |
3 |
4 |
|
counter pressure at water outlet. |
|
|
|
|
|
|
6 |
Tube diameters >Ø50 special equipped machines are needed. |
||
8

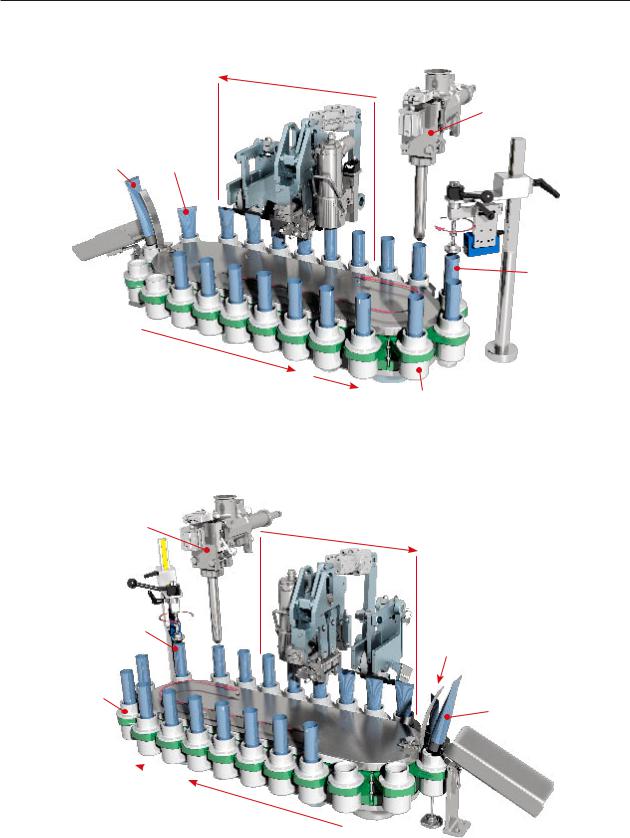

Operation Cycle
Anti-clockwise version
|
|
6. Alternative sealing equipment |
7. |
Available for |
5. Filling |
|
reject of faulty |
|
|
tubes or extra |
|
|
equipment like |
|
8. Discharge |
laser/inkjet |
|
4. Tube checking and tube print orientation
1. Alternative tube infeed equipment
2. Available for |
3. Tube cleaning and |
|
extra equipment |
||
cap tightening |
||
|
Clockwise version
5. Filling |
6. Alternative sealing equipment |
4.Tube checking and tube print orientation
7. Available for reject of faulty tubes or extra equipment like laser/inkjet
3. Tube cleaning and cap tightening
8. Discharge
2.Available for
extra equipment
1.Alternative tube infeed equipment
9

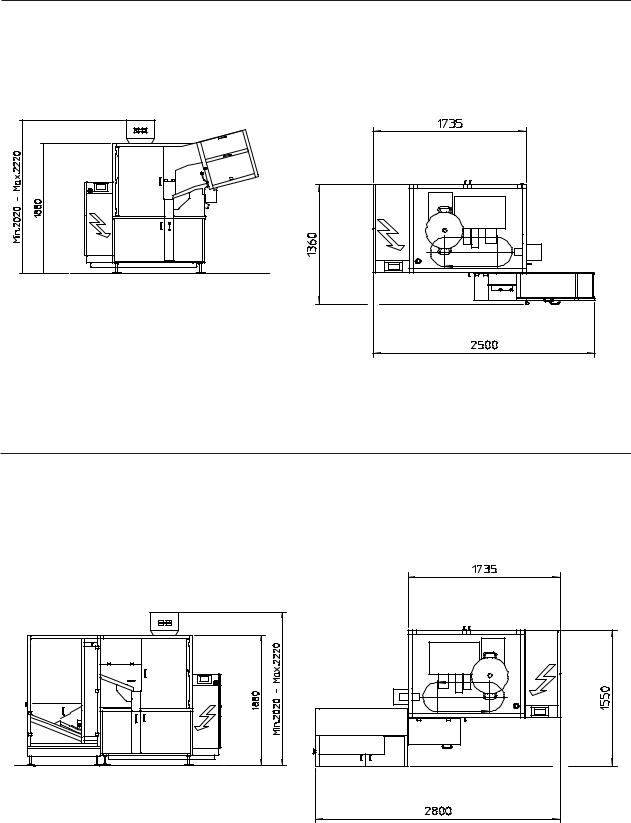

Machine layouts
Nordenmatic 702 (clockwise operation) with Cassette infeed
Nordenmatic 702 (anti-clockwise operation) with Store magazine (NSM 180)
10
