Get more
out of tubes
Nordenmatic 702
Flexibility & Reliability
Flexibility & Reliabilit

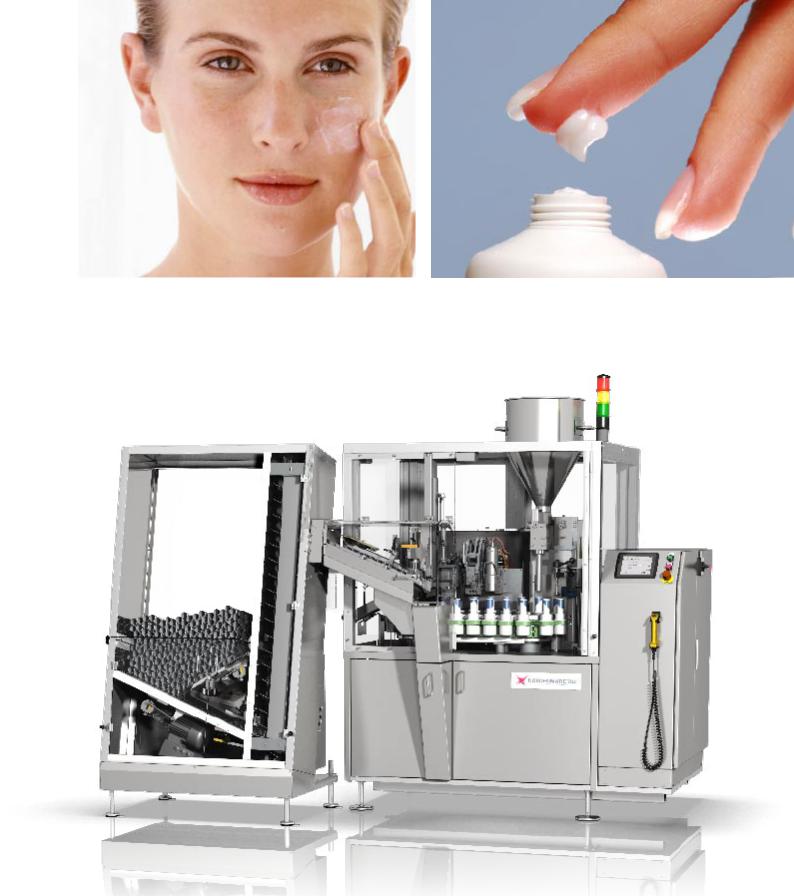

There’s a reason the Nordenmatic 702 is the top selling tube filling machine on the market: it’s designed to deliver. With production outputs of up to 80 tubes per minute you get maximum productivity with the highest possible packaging quality standards at maximum operational efficiencies. The NM 702 is able to handle a wide range of tube sizes, from 10 mm to 60 mm, whether they are plastic, laminate, or aluminium.
The machine is equipped with 22-tube holder links as standard, while our well-proven oval tube transport system, which facilitates good machine access and smooth integration of new equipment, is available in clockwise or anti-clockwise versions, allowing you to choose the most efficient line layout to best suit your factory and production needs.
Main technical features
–Norden EasyWare control system.
–Hot Air Sealing
–Design-A-Seal®
–Metal Folding or Combination Sealing
–Prepared for multi-color filling
–Clockwise or anti-clockwise operation
–Jogging device
–Servo driven functions (option)
Get in touch with a Norden sales representative to calculate the impact the NM 702 could have on your business.
y
3

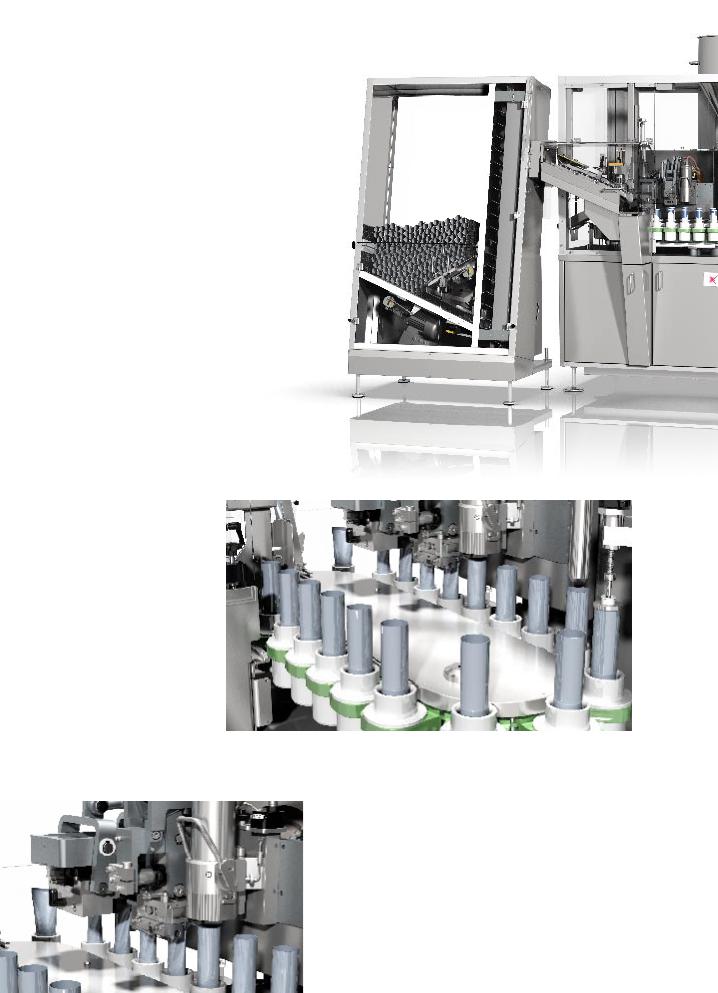

Infeed Systems
The NM 702 can be fitted with a number of infeed systems, including semi-automatic infeed with storage capacity and complete with motorized sorting device, an ergonomic system for loading complete tube transport boxes at a convenient height for machine operators, and a robot tube loader that assures the best possible line efficiency and which is suitable for both small and large tube diameters, even most oval tubes.
Operation Cycle
The NM 702 is available in both clockwise and anti-clockwise versions. While 22 tube holders are standard, extension to 28 is possible for additional equipment. The machine table is manufactured in stainless steel for long-term durability.
Hot Air sealing system
Norden’s highly efficient and patented Hot Air sealing beam can handle all your plastic and laminate tubes. It has a quick disconnect of the hot air nozzle and cooling ring block, and includes counters and scales for fast and repeatable changeovers. The system is the strongest and most attractive way of sealing tubes, and yields very little waste.
4

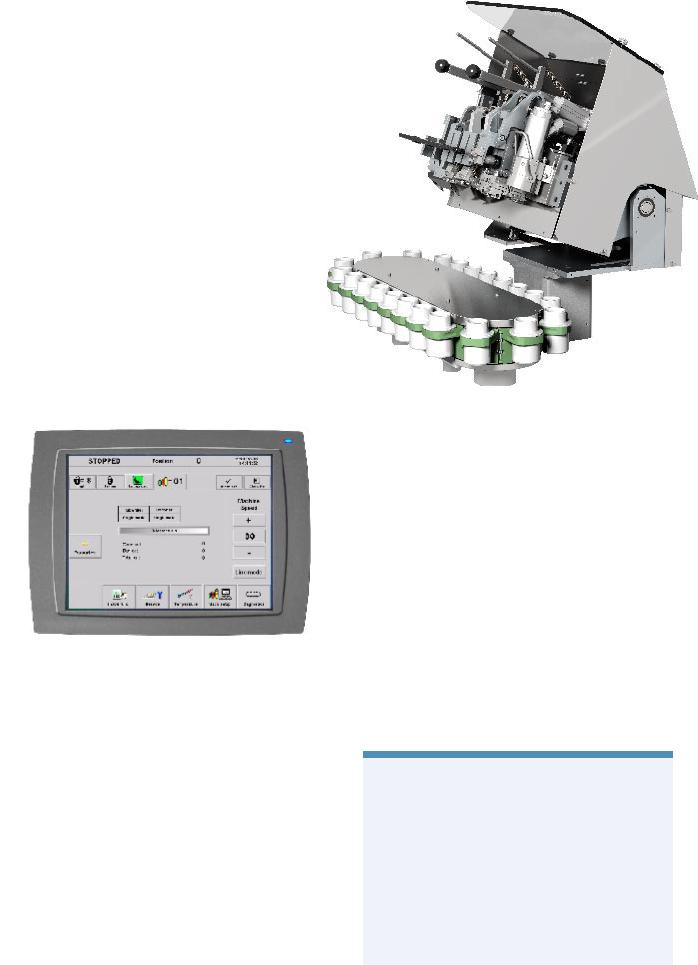

Combination Sealing Unit
The combination sealing unit allows you to switch between plastic/laminate and metal tubes on one machine. Usually, switching complete metal and hot air beams takes up several hours of your valuable production time. But with our combination beam on your Norden filling machine, you can switch from hot air to metal sealing in 15 minutes without any tools.
Access & Control
With machine technology becoming ever more complex our user-friendly Norden EasyWare interface makes controlling and monitoring the NM 702 a snap, whilst still meeting all of your performance and quality demands. The control system features a 6,5” color screen and allows up to 30 pre-pro-
grammed format tables that, together with improved access for maintenance, reduce changeover time to a minimum.
Customer Care With all the Benefits
Getting your NM 702 tube system up and running perfectly is not the end of our commitment to you. We will continue to actively support you to maintain peak performance throughout the machine’s lifecycle.
We achieve our customer care through a portfolio of aftersales services, from which you can choose those best suited to satisfy your needs during the different stages of your long-term production.
Norden customer care
–Customer training
–Performance services
–Spare parts
–Machine upgrades
–Design & documentation support
–Technical service support
