Page 966​

DICOM PS3.3 2020a - Information Object Definitions​







Labeling



























control none Bolus Cut-off

Slice by Slice Acquisition



ASL Pulse Train Duration





























time

































































(0018,9258)

[ms]























Bolus Cut-off Delaytime

































(0018,925F)

[ms]





















Frame Reference DateTime (0018,9151) (per frame)

Inversion Times (0018,9079) [ms] (per frame)

Bolus Cut-off Delay Time (0018,925F) [ms]

Inversion Times (0018,9079) [ms]

(from end of Pulse Train to Frame Reference DateTime)

ASL Pulse Train Duration (0018,9258 ) [ms]

Bolus Cut-off Technique Description (0018,925E) [text]

Frame Reference DateTime (0018,9151) (provides the absolute timing [DT])

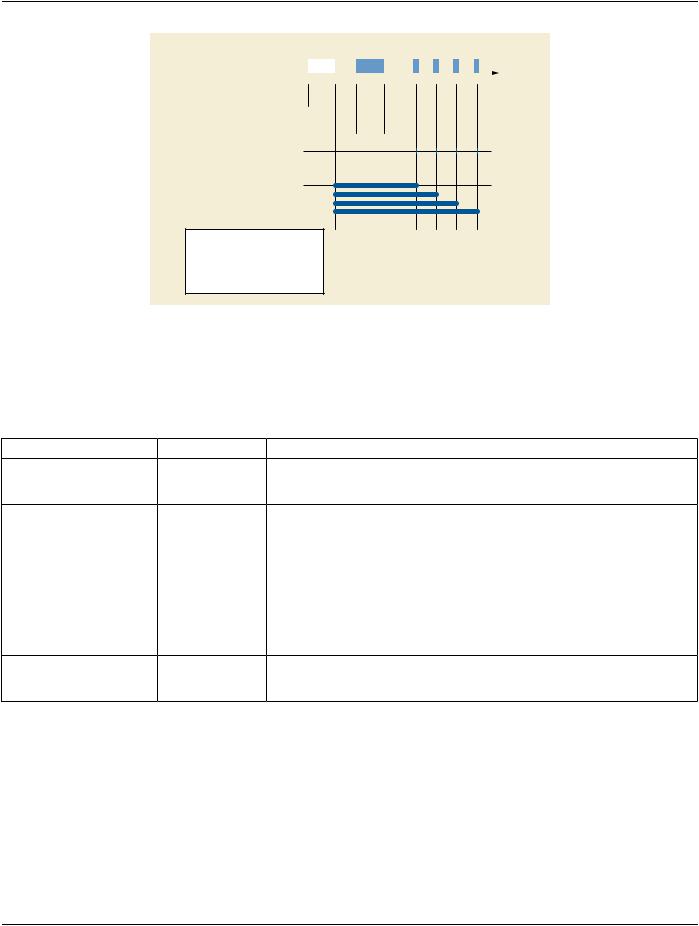

Figure C.8.13.5.14-1. Attributes for Quantitative ASL​

C.8.13.5.15 Functional MR Macro​

Table C.8-100c specifies the Attributes of the Functional MR Group Macro.​

Table C.8-100c. Functional MR Macro Attributes​

Attribute Name​

Tag​

Type​

Attribute Description​

Functional MR Sequence​

(0018,9621)​

1​

Identifies the Functional parameters of this frame.​







Only a single Item shall be included in this Sequence.​

>Settling Phase Frame​

(0018,9624)​

1C​

Identifies if the frame is part of a Functional MR settling phase. All​







frames with the same combination of Stack ID (0020,9056) and​







Temporal Position Index (0020,9128) shall have the same value.​

Enumerated Values:​

YES​

NO​

Required if Functional Settling Phase Frames Present (0018,9622) is​

YES.​

>Functional Sync Pulse​

(0018,9623)​

1​ The date and time of the Functional Sync Pulse for this frame.​

See Section C.8.13.5.15.1​

C.8.13.5.15.1 Functional Sync Pulse​

FunctionalStudiesrequiresynchronizationbetweentheAcquisitionModalityandexternaldevicestocoordinateparadigmpresentation​ by an external system with image acquisition. It is required that the Acquisition Time Synchronized (0018,1800) shall be "Y".​

The Functional Sync Pulse (0018,9623) is the date-time stamp of the pulse at the start of the acquired volume(s) in the SOP Instance.​

All frames with the same combination of Stack ID (0020,9056) and Temporal Position Index (0020,9128) share the same time stamp.​

C.8.13.6 MR Series Module​

The MR IODs use the General Series Module, specialized by the MR Series Module, to describe the DICOM Series Entity described​ in Section A.1.2.3, and to define what constitutes a Series for the context of MR device.​

- Standard -​



DICOM PS3.3 2020a - Information Object Definitions​

Page 967​

Table C.8-101 specifies the Attributes that identify and describe general information about the MR Series.​





Table C.8-101. MR Series Module Attributes​



Attribute Name​

Tag​

Type​

Attribute Description​



Modality​

(0008,0060)​

1​

Type of equipment that originally acquired the data used to​







create the images in this Series.​









Enumerated Values:​









MR​









See Section C.7.3.1.1.1 for further explanation.​



Referenced Performed​

(0008,1111)​

1C​

Uniquely identifies the Performed Procedure Step SOP​

Procedure Step Sequence​





Instance to which the Series is related.​



Only a single Item shall be included in this Sequence.​

Required if a Performed Procedure Step SOP Class was​ involved in the creation of this Series.​

>Include Table 10-11 “SOP Instance Reference Macro Attributes”​

C.8.14 MR Spectroscopy Modules​

This section describes the MR Spectroscopy Modules.​

Note​

Many Attributes have names and descriptions that include the terms "pixel" and "image". Although MR spectroscopy is not​ pixel based, some of these "pixel" and "image" Attributes encode concepts that are still relevant for this technique. Where​ such Attributes appear in the MR Spectroscopy IOD, it may be helpful to consider the term "pixel" to be equivalent to a​ spectroscopy "voxel", and the term "image" to be equivalent to "MR Spectroscopy SOP Instance".​

C.8.14.1 MR Spectroscopy Module​

Table C.8-102 specifies the Attributes of the MR Spectroscopy Module.​

Table C.8-102. MR Spectroscopy Module Attributes​

Attribute Name​

Tag​

Type​

Attribute Description​

IncludeTableC.8-83“MRImageandSpectroscopyInstance​

Macro Attributes”​







Image Type​

(0008,0008)​

1​

Spectroscopy data characteristics. See Section C.8.14.5.1.1.​

IncludeTableC.8-107“MRSpectroscopyDescriptionMacro​

Attributes”​







Transmitter Frequency​

(0018,9098)​

1C​

Precession frequency in MHz of the nucleus being addressed for each​







spectral axis.​







See Section C.8.14.1.1 for further explanation of the ordering.​







Required if Image Type (0008,0008) Value 1 is ORIGINAL. May be​







present otherwise.​

Spectral Width​

(0018,9052)​

1C​

Spectral width in Hz.​







See Section C.8.14.1.1 for further explanation of the ordering.​

Required if Image Type (0008,0008) Value 1 is ORIGINAL or MIXED.​

May be present otherwise.​

- Standard -​

Page 968​

DICOM PS3.3 2020a - Information Object Definitions​

Attribute Name​

Tag​

Type​

Attribute Description​

ChemicalShiftReference​

(0018,9053)​

1C​

The chemical shift at the transmitter frequency in ppm.​







See Section C.8.14.1.1 for further explanation of the ordering.​







Required if Image Type (0008,0008) Value 1 is ORIGINAL or MIXED.​







May be present otherwise.​

Volume Localization​

(0018,9054)​

1C​

Name of volume localization technique used. Shall be "NONE" if no​

Technique​





spatial localization was performed.​







Defined Terms:​







ILOPS​







ISIS​







PRIME​







PRESS​







SLIM​







SLOOP​







STEAM​







NONE​







Required if Image Type (0008,0008) Value 1 is ORIGINAL or MIXED.​







May be present otherwise.​

Volume Localization​

(0018,9126)​

1C​

A Sequence of Items that provide the position of RF excitations used​

Sequence​





to select a volume of tissue. The selected volume is described by the​







intersection of the Sequence Items.​







One or more Items shall be included in this Sequence.​







Required if Image Type (0008,0008) Value 1 is ORIGINAL or MIXED​







and Volume Localization Technique (0018,9054) is other than NONE.​







May be present if Volume Localization Technique (0018,9054) is other​







than NONE.​

>Slab Thickness​

(0018,9104)​

1​

Thickness of slab in mm.​

>Slab Orientation​

(0018,9105)​

1​

The direction cosines of a normal vector perpendicular to the selection​







plane with respect to the patient. See Section C.7.6.2.1.1 for further​







explanation.​

>Mid Slab Position​

(0018,9106)​

1​

The x, y, and z coordinates of the mid-point of the slab in mm. See​







Section C.7.6.2.1.1 for further explanation.​

De-coupling​

(0018,9059)​

1C​

Indicates whether de-coupling was active.​







Enumerated Values:​

YES​

NO​

Required if Image Type (0008,0008) Value 1 is ORIGINAL or MIXED.​

May be present otherwise.​

- Standard -​



DICOM PS3.3 2020a - Information Object Definitions​

Page 969​

Attribute Name​

Tag​

Type​

Attribute Description​



De-coupled Nucleus​

(0018,9060)​

1C​

Nucleus being de-coupled.​









Defined Terms:​









1H​









3HE​









7LI​









13C​









19F​









23NA​









31P​









129XE​









See Section C.8.14.1.1 for further explanation of the ordering.​







Required if De-coupling (0018,9059) equals YES.​



De-coupling Frequency​

(0018,9061)​

1C​

The center frequency (Hz) for the de-coupling.​









See Section C.8.14.1.1 for further explanation of the ordering.​







Required if De-coupling (0018,9059) equals YES.​



De-coupling Method​

(0018,9062)​

1C​

The de-coupling modulation scheme used.​









Defined Terms:​









MLEV​









WALTZ​









NARROWBAND​









Required if De-coupling (0018,9059) equals YES.​



De-coupling Chemical​

(0018,9063)​

1C​

The chemical shift in ppm at the de-coupling frequency.​



Shift Reference​





See Section C.8.14.1.1 for further explanation of the ordering.​













Required if De-coupling (0018,9059) equals YES.​



Time Domain Filtering​

(0018,9065)​

1C​

Describes time domain filtering or apodization applied. Shall be NONE​







if no filtering operations were applied to the time domain data.​

Defined Terms:​

COSINE​

COSINE_SQUARED​

EXPONENTIAL​

GAUSSIAN​

HAMMING​

HANNING​

LORENTZIAN​

LRNTZ_GSS_TRNSFM​

NONE​

See Section C.8.14.1.1 for further explanation of the ordering.​

Required if Image Type (0008,0008) Value 1 is ORIGINAL or MIXED.​

May be present otherwise.​

- Standard -​

Page 970​

DICOM PS3.3 2020a - Information Object Definitions​

Attribute Name​

Tag​

Type​

Attribute Description​

Number of Zero Fills​

(0018,9066)​

1C​

Number of zero fills added to the time domain data before FT. Shall be​







0 (zero) if no zero filling performed.​







See Section C.8.14.1.1 for further explanation of the ordering.​







See Section C.8.14.1.2 for further explanation on Zero Fills.​







Required if Image Type (0008,0008) Value 1 is ORIGINAL or MIXED.​







May be present otherwise.​

Baseline Correction​

(0018,9067)​

1C​

Describesbaselinecorrectiontechniques.ShallbeNONEifnobaseline​







correction was performed.​







Defined Terms:​







LINEAR_TILT​







LOCAL_LINEAR_FIT​







POLYNOMIAL_FIT​







SINC_DECONVOLUTN​







TIME_DOMAIN_FIT​







SPLINE​







NONE​







Required if Image Type (0008,0008) Value 1 is ORIGINAL or MIXED.​







May be present otherwise.​

Frequency Correction​

(0018,9101)​

1C​

Specifies whether operations were performed to correct resonant​







frequency of metabolite peaks due to B0 field inhomogeneities.​







Enumerated Values:​







YES​







NO​







Required if Image Type (0008,0008) Value 1 is ORIGINAL or MIXED.​







May be present otherwise.​

First Order Phase​

(0018,9198)​

1C​

Describeswhetherafirstorder(frequencydependent)phasecorrection​

Correction​





was applied to the spectral data.​







Enumerated Values:​







YES​







NO​







Required if Image Type (0008,0008) Value 1 is ORIGINAL or MIXED.​







May be present otherwise.​

Water Referenced Phase​

(0018,9199)​

1C​

Indicates if the images or spectra were created using Water Reference​

Correction​





time domain data for phase correction.​

Enumerated Values:​

YES​

NO​

Required if Image Type (0008,0008) Value 1 is ORIGINAL or MIXED.​

May be present otherwise.​

See Section C.8.14.1.3 for relation between Water Reference data and​ other Spectroscopic objects.​

- Standard -​
