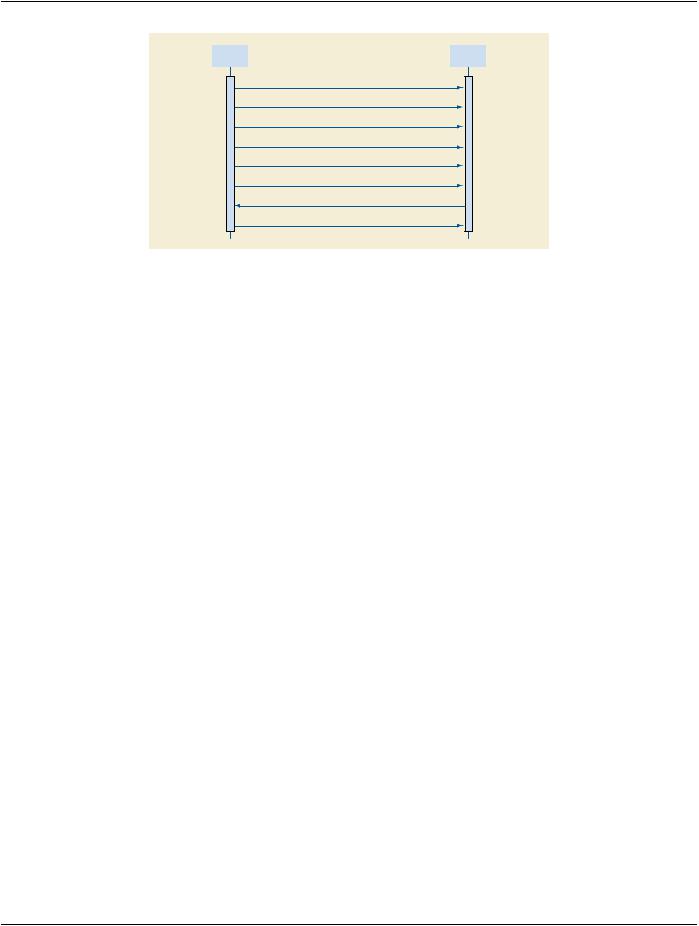

1.Open Association

2.C-STORE (RF Image)

3.C-STORE (GSPS)

4.C-STORE (RF Image)

5.C-STORE (GSPS)

6 N-ACTION (Storage Commitment Request for Images & GSPS)

7.N-EVENT-REPORT (Storage Commitment Response)

8.Close Association

Figure B.4.2-1. Sequencing of Activity - Send Images​

A possible sequence of interactions between the Storage AE and an Image Manager (e.g., a storage or archive device supporting​ the Storage and Storage Commitment SOP Classes as an SCP) is illustrated in Figure B.4.2-1:​

1.​The Storage AE opens an association with the Image Manager​

2.​An acquired RF image is transmitted to the Image Manager using a C-STORE request and the Image Manager replies with a C-​ STORE response (status success).​

3.​AGSPSinstanceistransmittedtotheImageManagerusingaC-STORErequestandtheImageManagerreplieswithaC-STORE​ response (status success).​

4.​Another acquired RF image is transmitted to the Image Manager using a C-STORE request and the Image Manager replies with​ a C-STORE response (status success).​

5.​Another GSPS instance is transmitted to the Image Manager using a C-STORE request and the Image Manager replies with a​ C-STORE response (status success).​

6.​An N-ACTION request is transmitted to the Image Manager to obtain storage commitment of previously transmitted RF images​ and GSPS instances. The Image Manager replies with a N-ACTION response indicating the request has been received and is​ being processed.​

7.​The Image Manager immediately transmits an N-EVENT-REPORT request notifying the Storage AE of the status of the Storage​ CommitmentRequest(sentinstep6usingtheN-ACTIONmessage).TheStorageAEreplieswithaN-EVENT-REPORTresponse​ confirming receipt. The Image Manager could send this message at any time or omit it entirely in favor of transmitting the N-​ EVENT-REPORT over a separate dedicated association (see note).​

8.​The Storage AE closes the association with the Image Manager.​

Note​

ManyothermessagesequencesarepossibledependingonthenumberofimagesandGSPSinstancestobestored,support​ for Storage Commitment and when the SCP sends the N-EVENT-REPORT. The N-EVENT-REPORT can also be sent over​ a separate association initiated by the Image Manager (see Section B.4.2.1.4.1 on Activity - Receive Storage Commitment​ Response).​

B.4.2.1.3.1.2 Proposed Presentation Contexts​

EXAMPLE-INTEGRATED-MODALITY is capable of proposing the Presentation Contexts shown in the following table:​

- Standard -​

Page 92​ DICOM PS3.2 2020a - Conformance​

Table B.4.2-7. Proposed Presentation Contexts for Activity Send Images​

Presentation Contexts for X-Ray Radio Fluoroscopic Image Storage or Grayscale Softcopy Presentation State Storage will only be​ proposed if the Send Job contains instances for these SOP Classes.​

A Presentation Context for the Storage Commitment Push Model will only be proposed if the Remote AE is configured as an archive​ device.​

B.4.2.1.3.1.3 SOP Specific Conformance Image & Pres State Storage SOP Classes​

All Image & Presentation State Storage SOP Classes supported by the Storage AE exhibit the same behavior, except where stated,​ and are described together in this section.​

If X-Ray Radio Fluoroscopic Image Storage SOP Instances are included in the Send Job and a corresponding Presentation Context​ is not accepted then the Association is aborted using AP-ABORT and the send job is marked as failed. The job failure is logged and​ reported to the user via the job control application.​

If Grayscale Softcopy Presentation State Storage SOP Instances are included in the Send Job and a corresponding Presentation​ Context cannot be negotiated then Grayscale Softcopy Presentation State Storage SOP Instances will not be sent and a warning is​ logged. Any remaining Image Storage SOP Instances included in the Send Job will be transmitted. Failure to negotiate a Presentation​ ContextforGrayscaleSoftcopyPresentationStateStoragedoesnotinitselfcausetheSendJobtobemarkedasfailed.Thebehavior​ of Storage AE when encountering status codes in a C-STORE response is summarized in the Table below:​

Table B.4.2-8. Storage C-STORE Response Status Handling Behavior​

- Standard -​

AssociationabortedbytheSCPornetwork​The send job is marked as failed. The reason is logged and the job failure is reported to​ layers​ the user via the job control application.​

A failed send job can be restarted by user interaction. The system can be configured to automatically resend failed jobs if a transient​ status code is received. The delay between resending failed jobs and the number of retries is also configurable.​

The contents of X-Ray Radio Fluoroscopic Image Storage SOP Instances created by EXAMPLE-INTEGRATED-MODALITY conform​ to the DICOM X-Ray Radio Fluoroscopic Image IOD definition and are described in Section B.8.1.​

The contents of Grayscale Softcopy Presentation State Storage SOP Instances created by EXAMPLE-INTEGRATED-MODALITY​ conform to the DICOM Grayscale Softcopy Presentation State IOD and are described in Section B.8.1.​

Grayscale Softcopy Presentation State Storage SOP Instances are created upon user request (e.g., explicitly via "Save" or implicitly​ via "Close Patient") in order to save the most recent visual appearance of an image (e.g., window center/width, shutters, graphic an-​ notations). When saving the visual appearance, a default Presentation Label will be supplied, which the user can change. The user​ also has the possibility to enter a detailed Presentation Description. If multiple images from the same study are being displayed the​ request to save the visual appearance will create one or more Presentation States referencing all displayed images. If images from​ multiple studies are being displayed at least a separate Presentation State will be created for each study.​

WhendisplayinganexistingimagethemostrecentlysavedGrayscaleSoftcopyPresentationStatecontainingreferencestotheimage​ will be automatically applied. The user has the option to select other Presentation States that also reference the image.​

Grayscale Softcopy Presentation State Storage SOP Instances created by EXAMPLE-INTEGRATED-MODALITY will only reference​ instances of X-Ray Radio Fluoroscopic Image Storage SOP Instances.​

GraphicalannotationsandshuttersareonlystoredinGrayscaleSoftcopyPresentationStateobjects.RemoteAEsthatdonotsupport​ the Grayscale Softcopy Presentation State Storage SOP Class will not have access to graphical annotations or shutters created by​ EXAMPLE-INTEGRATED-MODALITY.​

B.4.2.1.3.1.4 SOP Specific Conformance for Storage Commitment SOP Class​

B.4.2.1.3.1.4.1 Storage Commitment Operations (N-ACTION)​

The Storage AE will request storage commitment for instances of the X-Ray Radio Fluoroscopic Image Storage SOP Class and​ Grayscale Softcopy Presentation State Storage SOP Class if the Remote AE is configured as an archive device and a presentation​ context for the Storage Commitment Push Model has been accepted.​

The Storage AE will consider Storage Commitment failed if no N-EVENT-REPORT is received for a Transaction UID within a config-​ urable time period after receiving a successful N-ACTION response (duration of applicability for a Transaction UID).​

TheStorageAEdoesnotsendtheoptionalStorageMediaFileSetID&UIDAttributesortheReferencedStudyComponentSequence​

Attribute in the N-ACTION​

The behavior of Storage AE when encountering status codes in a N-ACTION response is summarized in the Table below:​

- Standard -​

Page 94​ DICOM PS3.2 2020a - Conformance​

Table B.4.2-10. Storage Commitment N-ACTION Response Status Handling Behavior​

AssociationabortedbytheSCPornetwork​The send job is marked as failed. The reason is logged and the job failure is reported to​ layers​ the user via the job control application.​

B.4.2.1.3.1.4.2 Storage Commitment Notifications (N-EVENT-REPORT)​

The Storage AE is capable of receiving an N-EVENT-REPORT notification if it has successfully negotiated a Presentation Context​ for the Storage Commitment Push Model (i.e., only associations established with archive devices).​

Upon receipt of a N-EVENT-REPORT the timer associated with the Transaction UID will be canceled.​

The behavior of Storage AE when receiving Event Types within the N-EVENT-REPORT is summarized in the Table below.​

Table B.4.2-12. Storage Commitment N-EVENT-REPORT Behavior​

The reasons for returning specific status codes in a N-EVENT-REPORT response are summarized in the Table below.​

Table B.4.2-13. Storage Commitment N-EVENT-REPORT Response Status Reasons​

- Standard -​

B.4.2.1.4 Association Acceptance Policy​

B.4.2.1.4.1 Activity - Receive Storage Commitment Response​

B.4.2.1.4.1.1 Description and Sequencing of Activities​

The Storage AE will accept associations in order to receive responses to a Storage Commitment Request.​

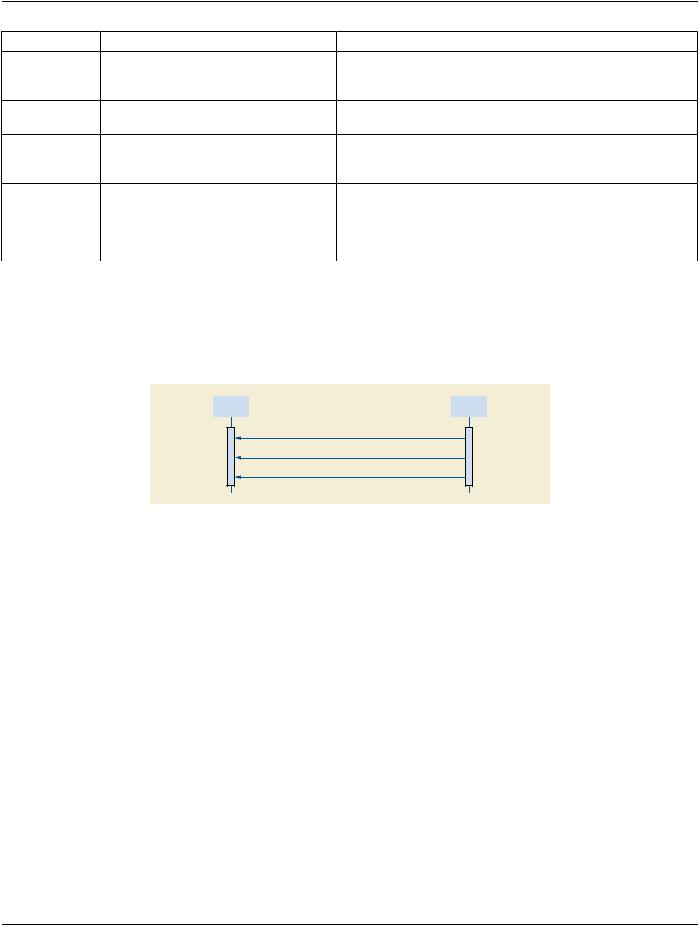

1.Open Association

2.N-EVENT-REPORT (Storage Commitment Response)

3.Close Association

Figure B.4.2-2. Sequencing of Activity - Receive Storage Commitment Response​

A possible sequence of interactions between the Storage AE and an Image Manager (e.g., a storage or archive device supporting​ Storage Commitment SOP Classes as an SCP) is illustrated in the Figure above:​

1.​The Image Manager opens a new association with the Storage AE.​

2.​TheImageManagersendsanN-EVENT-REPORTrequestnotifyingtheStorageAEofthestatusofapreviousStorageCommitment​ Request. The Storage AE replies with a N-EVENT-REPORT response confirming receipt.​

3.​The Image Manager closes the association with the Storage AE.​

TheStorageAEmayrejectassociationattemptsasshownintheTablebelow.TheResult,SourceandReason/Diagcolumnsrepresent​ the values returned in the appropriate fields of an ASSOCIATE-RJ PDU (see Section 9.3.4 in PS3.8). The contents of the Source​ column is abbreviated to save space and the meaning of the abbreviations are:​

a.​1 - DICOM UL service-user​

b.​2 - DICOM UL service-provider (ASCE related function)​

c.​3 - DICOM UL service-provider (Presentation related function)​
