I/O modules • 167

Analog Inputs 750-452, -454, (-482), (-484)

750-452, 750-454

Input current	Input current	Value
0-20mA	4-20mA	Binary	Hex.	Dec.
20	20	0111 1111 1111 1000	7F F8	32760


10	12	0100 0000 0000 0000	40 00	16384

5	8	0010 0000 0000 0000	20 00	8192

2.5	6	0001 0000 0000 0000	10 00	4096

0.156	4.125	0000 0001 0000 0000	01 00	256

0.01	4.0078	0000 0000 0001 0000	00 10	16

0.005	4.0039	0000 0000 0000 1000	00 08	8


0	4	0000 0000 0000 0111	00 07	7

0	4	0000 0000 0000 0000	0	0

Numerical format for Siemens function blocks

For fieldbus masters with the ability to evaluate the status information within the data word, i.e. Siemens format.

The status information is contained in Bit B0 .. B2.

The digitized input is placed at the position Bit B3 .. B15.

750-452/000-200, (formerly 750-482)

Input current	Value
0-20mA	Binary	X E O*)	Hex.	Dec.
>20	0100 0000 0000 0	0 0 1	4001	16385

20	0100 0000 0000 0	0 0 0	4000	16384

10	0010 0000 0000 0	0 0 0	2000	8192


5	0001 0000 0000 0	0 0 0	1000	4096

2.5	0000 1000 0000 0	0 0 0	0800	2048

1.25	0000 0100 0000 0	0 0 0	0400	1024

0.625	0000 0010 0000 0	0 0 0	0200	512


0.0976	0000 0000 0000 1	0 0 0	0008	8

0	0000 0000 0000 0	0 0 0	0000	0

*) X : without meaning, E : short circuit or open circuit, O : overflow

Modular I/O System

ETHERNET TCP/IP

168 • I/O modules

Analog Inputs 750-452, 454, (-482), (-484)

750-454/000-200, (formerly 750-484)

Input current	Value
4-20mA	Binary	X E O*)	Hex.	Dec.
>20	0101 0000 0000 0	0 0 1	50 01	20481


20	0101 0000 0000 0	0 0 0	50 00	20480

16	0100 0000 0000 0	0 0 0	40 00	16384

12	0011 0000 0000 0	0 0 0	30 00	12288

8	0010 0000 0000 0	0 0 0	20 00	8192


4.0078	0001 0000 0000 1	0 0 0	1008	4104

4	0001 0000 0000 0	0 0 0	1000	4096

4	0001 0000 0000 0	0 1 1	1003	4099

*) X : without meaning, E : short circuit or open circuit, O : overflow

Modular I/O System

ETHERNET TCP/IP

I/O modules • 169

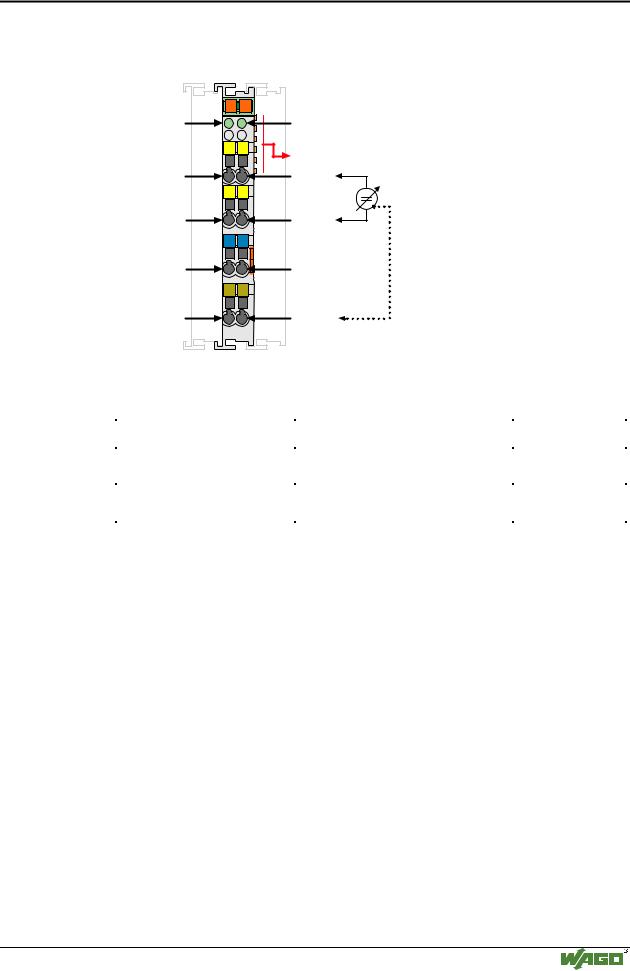

Analog Inputs 750-456

4.4.1.1.2 2 Channel Analog Inputs

(±10V Differential Inputs) 750-456

Function AI 1

+AI 1

-AI 1

Common

(ground)

Shield (screen)

13	14
A
	C
B
	D
+E1 +E2
-E1 -E2
M	M
S	S
750-456

Function AI 2

Data contacts

+AI 2

-AI 2

Common (ground)

Shield (screen)

I/O modules and variations

Item-No.:	Description:	Name:

750-456	2 Channel Analog Input DC ± 10V	2 AI ± 10V DC
	Differential Inputs
750-456/000-001	2 Channel Analog Input DC ± 10V	2 AI ± 10V DC
shortly 750-456/000-200	Differential Inputs	(Siemens)

Technical description

This description is only intended for hardware version X X X X 2 A 0 0 - - - -.

The serial number can be found on the right side of the module.

The input channels are differential inputs and they have a common ground potential.

The inputs are connected to +I and -I. The shield is connected to "S". A capacitive connection is made automatically when snapped onto the DIN rail.

These I/O modules are not provided with integrated power jumper contacts. The power supply is made by the data contacts with a DC-DC converter. The modules can work self-supporting.

The input module can operate with all buscouplers of the

WAGO-I/O-SYSTEM (except for the economy type).

Modular I/O System

ETHERNET TCP/IP

170 • I/O modules

Analog Inputs 750-456

Technical Data:

Item-No.:

Number of inputs

Nominal voltage

Input current (internal)

Overvoltage protection

Signal voltage

Resistance

Resolution

Isolation

Conversion time

Bit width per channel

Configuration

Operating temperature

Wire connection

Dimensions (mm) WxHxL

750-456,

750-456/000-001

via system voltage (DC DC converter)

65 mA

35 V max.

± 10 V

570 kΩ typ.

12 Bit

500V System/power supply

2 ms typ.

16Bit: Data; optional 8Bit: Control/Status

none, or via software with the consent of WAGO

0°C....+55°C

CAGE CLAMP ; 0.08 mm2 - 2.5 mm2, AWG 28 – 14, 8 – 9 mm Stripped length

12 x 64* x 100 (*from upper edge of carrier rail)

Attention

The value of the input signal should be in a range of 0V to 10V or no signal.

Numerical format

All analog values will be shown in a unit numerical format. The resolution is 12 Bits and the 3 LSBs are not significant.

The following table will explain the numerical format.

Modular I/O System

ETHERNET TCP/IP

I/O modules • 171

Analog Inputs 750-456

750-456

Signal voltage	Value			Status
±10V	Binary	Hex.	Dec.
> 10 V	0111 1111 1111 1111	7F FF	32767	42
10	0111 1111 1111 XXXX	7F FX	32760	0
5	0100 0000 0000 XXXX	40 0X	16384	0
2.5	0010 0000 0000 XXXX	20 0X	8192	0
1.25	0001 0000 0000 XXXX	10 0X	4096	0
0.0781	0000 0001 0000 XXXX	01 0X	256	0
0.0049	0000 0000 0001 XXXX	00 1X	16	0
0	0000 0000 0000 XXXX	00 0X	0	0
-2.5	1110 0000 0000 XXXX	E0 0X	57344	0
-5	1100 0000 0000 XXXX	C0 0X	49152	0
-7.5	1010 0000 0000 XXXX	A0 0X	40960	0
-10	1000 0000 0000 XXXX	80 0X	32768	0
< -10 V	1000 0000 0000 0000	80 00	32768	41

Numerical format for Siemens function blocks

For fieldbus masters with the ability to evaluate the status information within the data word, i.e. Siemens format.

The status information is contained in Bit B0 .. B2.

The digitized input is placed at the position Bit B3 .. B15.

750-456/ 000-001 (or /000-200)

Signal voltage	Value
±10V	Binary	X E O*)	Hex.	Dec.
>10	0111 1111 1111 1	0 0 1	7F F9	32761
10	0111 1111 1111 1	0 0 0	7F F8	32760
5	0110 0000 0000 0	0 0 0	60 00	24576
2.5	0101 0000 0000 0	0 0 0	50 00	20480
1.25	0100 1000 0000 0	0 0 0	48 00	18432
0.0049	0100 0000 0000 1	0 0 0	40 08	16392
0	0100 0000 0000 0	0 0 0	40 00	16384
-2.5	0011 0000 0000 1	0 0 0	30 08	12296
-5	0010 0000 0000 0	0 0 0	20 00	8192
-7.5	0001 0000 0000 0	0 0 0	10 00	4096
-10	0000 0000 0000 1	0 0 0	00 00	8
<-10	0000 0000 0000 0	0 0 1	00 01	1

*) X : without meaning, E : short circuit or open circuit, O : overflow

Modular I/O System

ETHERNET TCP/IP
