Federal State Budgetary Educational Institution of Higher Education "Kuban State Medical University" of the Ministry of Health of the Russian Federation

ECG for violations rhythm and conduction

Department of Internal Propedeutics

diseases

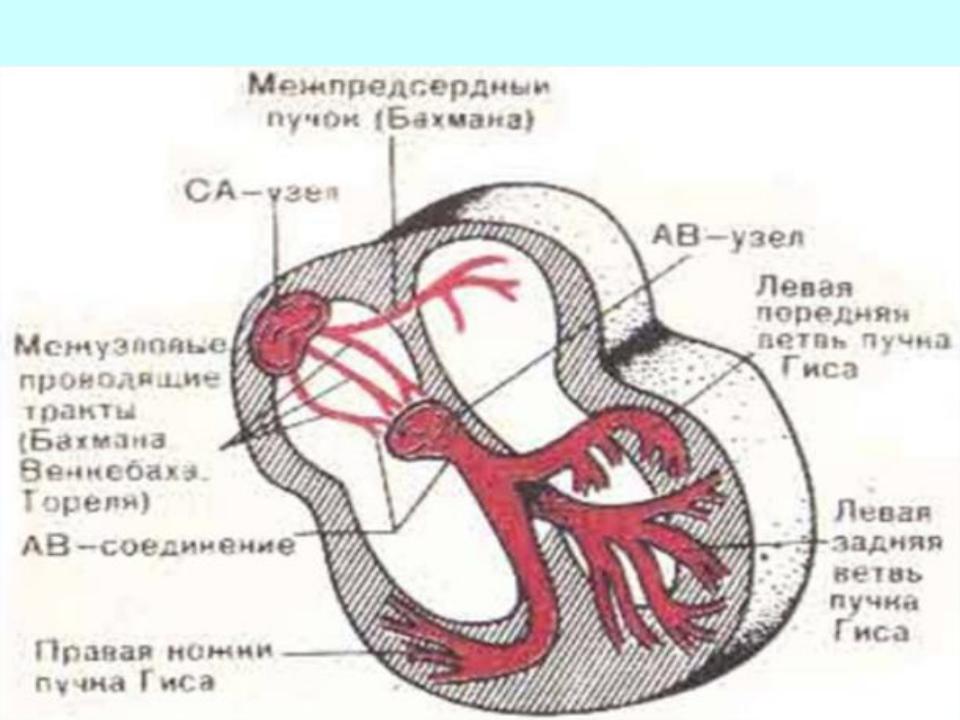

Conductive system of the heart:

Sinus tachycardia:

This is an increase in heart rate from 90-100 to 140 in 1 min while maintaining the correct sinus rhythm. The main ECG signs:

1.The P wave in all cycles precedes the QRS complex, its form is constant in each assignment.

2.The duration of the P-Q (R) interval is the same during all complexes.

3.Interval R-R (respectively intervals R-R) shortened due to shortening of diastole (interval T- R).

4.Displacement of the R (S) -T segment downward from isoelectric line (with a pronounced tachycardia).

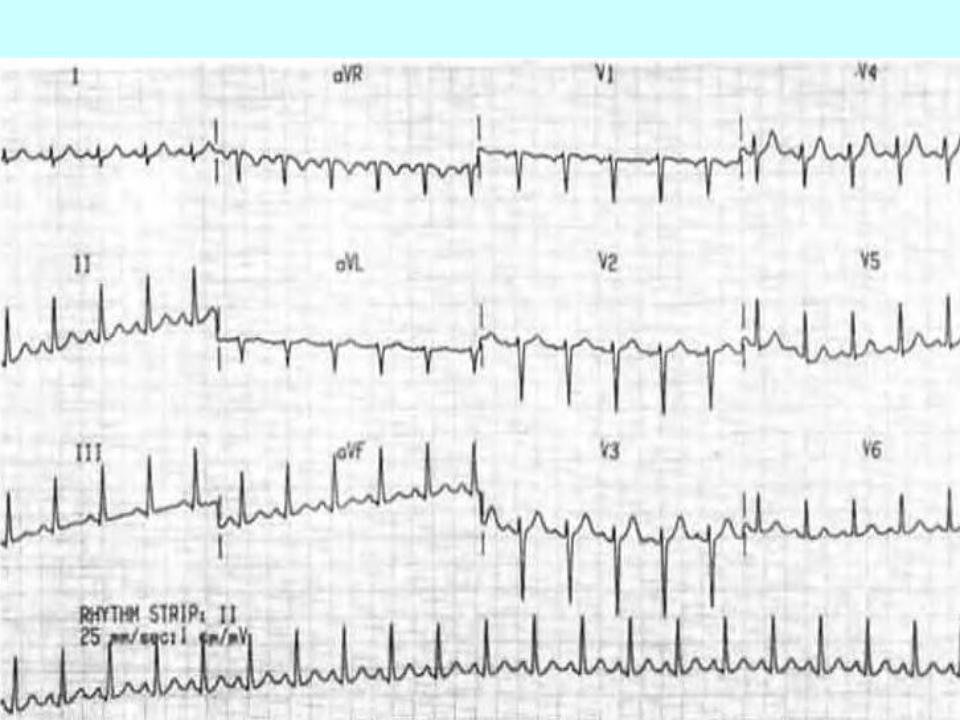

Sinus tachycardia:

Sinus bradycardia:

This is a decrease in heart rate less than 60 in 1 min. (50-40) while maintaining sinus rhythm.

The main ECG signs:

1.The P wave in all cycles precedes the QRS complex its form is constant in each assignment.

2.The duration of the P-Q (R) interval is the same during all complexes.

3.R-R intervals (correspondingly R-R intervals) lengthened due to the diastolic interval T-P.

4.Slight rise of the R (S) -T segment over

isoelectric line (with a pronounced bradycardia).
