DICOM PS3.3 2020a - Information Object Definitions​

Page 851​

Attribute Name​

Tag​

Type​

Description​



>Table Top Lateral Adjusted​

(0074,1028)​

2​

Adjusted Table Top Lateral position in the IEC TABLE TOP coordinate​

Position​





system in mm for patient setup. See Section C.8.8.29.2.​



>Patient Support Adjusted​

(0074,102A)​

2​

Adjusted Patient Support angle for patient setup, i.e., orientation of the​

Angle​





IEC PATIENT SUPPORT coordinate system with respect to the IEC​







FIXED REFERENCE coordinate system in degrees. See​









Section C.8.8.29.2.​



>Table Top Eccentric​

(0074,102B)​

2​

Adjusted Table Top (non-isocentric) angle for patient setup, i.e.,​

Adjusted Angle​





orientation of the IEC TABLE TOP ECCENTRIC coordinate system​







with respect to the IEC PATIENT SUPPORT system in degrees. See​







Section C.8.8.29.2.​



>Table Top Pitch Adjusted​

(0074,102C)​

2​

Adjusted Table Top Pitch Angle for patient setup, i.e., the rotation of​

Angle​





the IEC TABLE TOP coordinate system about the X-axis of the IEC​







TABLE TOP coordinate system in degrees. See Section C.8.8.29.2.​

>Table Top Roll Adjusted​

(0074,102D)​

2​

Adjusted Table Top Roll Angle for patient setup, i.e., the rotation of the​

Angle​





IECTABLETOPcoordinatesystemabouttheY-axisoftheIECTABLE​







TOP coordinate system in degrees. See Section C.8.8.29.2.​

>Table Top Vertical Setup​

(300A,01D2)​

2​

VerticalDisplacementintheIECTABLETOPcoordinatesysteminmm​

Displacement​





relative to initial Setup Position, i.e., vertical offset between patient​







positioning performed using setup and treatment position.​



>Table Top Longitudinal​

(300A,01D4)​

2​

Longitudinal Displacement in the IEC TABLE TOP coordinate system​

Setup Displacement​





in mm relative to initial Setup Position, i.e., longitudinal offset between​







patient positioning performed using setup and treatment position.​

>Table Top Lateral Setup​

(300A,01D6)​

2​

Lateral Displacement in the IEC TABLE TOP coordinate system in mm​

Displacement​





relative to initial Setup Position, i.e., lateral offset between patient​







positioning performed using setup and treatment position.​



>IncludeTable10-28“DeviceMotionControlMacroAttributes​



Description”​









>Delivery Verification Image​

(0074,1030)​

2C​

Beam verification images to be acquired for current beam.​



Sequence​





Required if Beam Task Type (0074,1022) is VERIFY or​

















VERIFY_AND_TREAT.​









Zero or one Item shall be included in this Sequence if Beam Task Type​







(0074,1022) is VERIFY. Zero or more Items shall be included in this​







Sequence if Beam Task Type (0074,1022) is VERIFY_AND_TREAT.​

>>Verification Image Timing​

(0074,1032)​

1​

Indicatesthetemporalrelationshipoftheverificationimagewithrespect​







to the current treatment beam delivery. Value shall be DURING_BEAM​







for Beams with a Beam Task Type (0074,1022) of VERIFY.​







Enumerated Values:​









BEFORE_BEAM​









DURING_BEAM​









AFTER_BEAM​



>>StartCumulativeMeterset​

(300C,0008)​

1C​

Cumulative Meterset Weight within current Beam at which image​

Weight​





acquisition will start. Required if Verification Image Timing (0074,1032)​







is DURING_BEAM.​



- Standard -​

Page 852​

DICOM PS3.3 2020a - Information Object Definitions​

Attribute Name​

Tag​

Type​

Description​

>>Meterset Exposure​

(3002,0032)​

2C​

Treatment machine Meterset duration over which image is to be​







acquired, specified in Monitor units (MU) or minutes as defined by​







Primary Dosimeter Unit (300A,00B3) specified in the Referenced RT​







Plan Sequence (300C,0002).​







Required if Verification Image Timing (0074,1032) is BEFORE_BEAM​







or AFTER_BEAM.​







See Section C.8.8.29.3.​

>>End Cumulative Meterset​

(300C,0009)​

2C​

Cumulative Meterset Weight within current Beam at which image​

Weight​





acquisition will end.​







Required if Verification Image Timing (0074,1032) is DURING_BEAM.​

>>Double Exposure Flag​

(0074,1034)​

1​

Indicates whether the current verification image is a single or double​







exposure.​







Enumerated Values:​







SINGLE​single exposure​







DOUBLE​double exposure​

>>DoubleExposureOrdering​

(0074,1036)​

1C​

Indicates the ordering of the open (double exposure) field with respect​







to the primary (collimated) field in a double exposure.​







Defined Terms:​







OPEN_FIRST​ Open field first​







OPEN_SECOND​Open field second​







Required if Double Exposure Flag (0074,1034) is DOUBLE.​

>>DoubleExposureMeterset​

(0074,1338)​

2C​

Ifthisfieldispresent,anadditionalexposurewiththeindicatedMeterset​







is requested.​







Required if Double Exposure Flag (0074,1034) is DOUBLE.​

>>Double Exposure Field​

(0074,133A)​

2C​

Offsets of field-defining edges in mm for the double exposure in the​

Delta​





IEC BEAM LIMITING DEVICE coordinate system in the IEC order X1,​







X2, Y1, Y2. Negative values for X1 and Y1 indicate an enlarged field,​







negative values for X2 and Y2 indicate a reduced field.​







Required if Double Exposure Flag (0074,1034) is DOUBLE.​







See Section C.8.8.29.4.​

>>X-Ray Image Receptor​

(3002,000D)​

2​

Position in (x,y,z) coordinates in mm of origin of the IEC X-RAY IMAGE​

Translation​





RECEPTOR System in the IEC GANTRY coordinate system.​

>>Related Reference RT​

(0074,1040)​

3​

Uniquely identifies Reference Images to which planned verification​

Image Sequence​





image is related. All Items in this Sequence shall be RT Image SOP​







Instances.​







One or more Items are permitted in this Sequence.​

>>>Include Table 10-11 “SOP Instance Reference Macro​



Attributes”​







Omitted Beam Task​

(300C,0111)​

3​

Beams not to be delivered and/or verified.​

Sequence​





One or more Items are permitted in this Sequence.​







- Standard -​



DICOM PS3.3 2020a - Information Object Definitions​

Page 853​

Attribute Name​

Tag​

Type​

Description​



>Referenced Beam Number​

(300C,0006)​

1​

Uniquely identifies the Beam that is specified by Beam Number​







(300A,00C0)withinBeamSequence(300A,00B0)inRTBeamsModule​







of referenced RT Plan or within Ion Beam Sequence (300A,03A2) in​







RT Ion Beams Module of the referenced RT Ion Plan.​



>Reason for Omission​

(300C,0112)​

1​

Reason why the referenced beam is not to be delivered and/or verified:​







Defined Terms:​









ALREADY_TREATED​Thebeamhasbeenalreadytreatedinanearlier​







treatment session​



>Reason for Omission​

(300C,0113)​

3​

Description of reason for omission.​



Description​









C.8.8.29.1 Current Fraction Number​

For beams with a Treatment Delivery Type (300A,00CE) of CONTINUATION, the Current Fraction Number (3008,0022) is that of the​ original fraction to be completed by the current beam.​

C.8.8.29.2 Adjusted Table Positions and Angles​

AdjustedTablepositionsandanglesserveasafacilitytocommunicateashift(oftensystematic)thathasbeendetectedfromprevious​ treatments. They define a new initial patient position, which is near and aligned to the actual patient position during beam delivery.​ These Attributes do not affect the original relationship between the beams and the planning image patient anatomy.​

C.8.8.29.3 Meterset Exposure​

Meterset Exposure (3002,0032) can be interpreted as the 'maximum' Meterset duration in cases where an automatic exposure is​ taken.​

C.8.8.29.4 Double Exposure Field Delta​

The following diagram illustrates the case where the second X aperture in a double exposure is larger than the initial aperture. In this​ case ΔX1 is negative and ΔX2 is positive. If a field edge is defined by a multileaf collimator, then the field delta is to be applied to the​ most open leaf, such that all leaves can be moved to that position.​

-40

-20

0



30



60









































































Delta X

= -20

Delta X

= 30

1



2



Figure C.8.8.29-1. Double Exposure Field Delta​

C.8.8.29.5 Beam Order Index​

If the Beam Order Index (0074,1324) is present for any Item in the Beam Task Sequence (0074,1020), it shall be provided for all​ Items in that Sequence.​

- Standard -​

Page 854​

DICOM PS3.3 2020a - Information Object Definitions​

C.8.8.29.6 Autosequence Flag​

Autosequence Flag (0074,1025) shall not be present when the Beam Order Index (0074,1324) is not present. The first treatment​ Beam(BeamTask Type (0074,1022) is notVERIFY)asspecifiedbytheBeamOrderIndex(0074,1324),shallhaveanAutosequence​ Flag (0074,1025) value of NO.​

C.8.8.30 RT Brachy Application Setup Delivery Instruction Module​

TheRTBrachyApplicationSetupDeliveryInstructionModulecontainsadditionalinformationrequiredbyaTreatmentDeliverySystem​ (TDS) when specifying delivery of a brachytherapy treatment.​

This Module references the RT Plan to be delivered and specifies the treatment tasks to be performed for the Application Setups of​ the RT Plan.​

Delivery Instruction

1



1

references





contains









1













1-n































































Plan





Task





























1







1





contains





references









1-n







1























































Application Setup

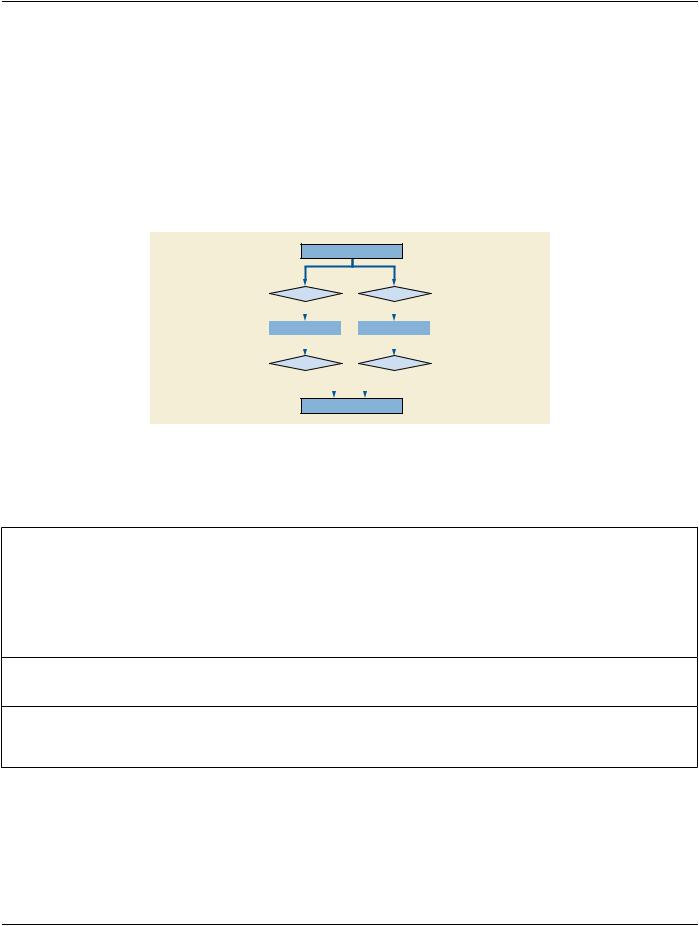

Figure C.8.8.30-1. Relationship of brachytherapy treatment plan and delivery instruction​

The RT Brachy Application Setup Delivery Instruction Module consists of a Sequence of one or more tasks.​

Table C.8.8.30-1. RT Brachy Application Setup Delivery Instruction Module Attributes​

Attribute Name​

Tag​

Type​

Description​

Referenced RT Plan Sequence​

(300C,0002)​

1​

Reference to a single RT Plan SOP Instance containing all the​







brachy application setups and the fraction group referenced in this​







SOP Instance.​







Only a single Item shall be included in this Sequence.​

>Include Table C.17-3 “Hierarchical SOP Instance Reference​



Macro Attributes”​







Referenced Fraction Group​

(300C,0022)​

1​

Indicates which fraction group of the referenced RT Plan in the​

Number​





Referenced RT Plan Sequence (300C,0002) is to be treated in the​







treatment session.​

Current Fraction Number​

(3008,0022)​

1​

The index of the fraction that is to be delivered or completed in this​







treatment session.​

See Section C.8.8.30.3.​

- Standard -​



DICOM PS3.3 2020a - Information Object Definitions​

Page 855​

Attribute Name​

Tag​

Type​

Description​



Continuation Pulse Number​

(0074,1404)​

1C​

The index of the pulse that is to be delivered or completed in this​







treatment session.​









Required if Brachy Treatment Type (300A,0202) of the referenced​







RT Plan in the Referenced RT Plan Sequence (300C,0002) is PDR​







and if Treatment Delivery Type (300A,00CE) is CONTINUATION​







in any of the Items in the Brachy Task Sequence (0074,1401).​







See Section C.8.8.30.4.​



Brachy Task Sequence​

(0074,1401)​

1​

Specification of Brachy Application Setups to be delivered.​







One or more Items shall be included in this Sequence.​









See Section C.8.8.30.1.​



>Treatment Delivery Type​

(300A,00CE)​

1​

Delivery Type of treatment.​









Enumerated Values:​









TREATMENT​ normal patient treatment​









CONTINUATION​continuation of interrupted treatment​







See Section C.8.8.30.2.​



>Continuation Start Total​

(0074,1402)​

1C​

Total Reference Air Kermawithin the Application Setup referenced​

Reference Air Kerma​





by Referenced Brachy Application Setup Number (300C,000C) at​







which treatment delivery starts.​









Required if Delivery Type (300A,00CE) is CONTINUATION.​

>Continuation End Total​

(0074,1403)​

1C​

Total Reference Air Kermawithin the Application Setup referenced​

Reference Air Kerma​





by Referenced Brachy Application Setup Number (300C,000C) at​







which treatment delivery ends.​









Required if Delivery Type (300A,00CE) is CONTINUATION.​

>ReferencedBrachyApplication​

(300C,000C)​

1​

Brachy Application Setup Number (300A,0234) within Brachy​

Setup Number​





Application Setup Sequence (300A,0230) in the referenced RT​







Plan.​









One or more Items shall be included in this Sequence.​



>Channel Delivery Order​

(0074,1405)​

3​

The order in which the channels are to be delivered.​



Sequence​





One or more Items are permitted in this Sequence.​











>>ReferencedChannelNumber​

(0074,1406)​

1​

The channel to be delivered, specified by the value of Channel​







Number (300A,0282) in referenced RT Plan.​



>>ChannelDeliveryOrderIndex​

(0074,140C)​

1​

The order of delivery of this channel, monotonically increasing by​







1, starting from 1, where number 1 is the first channel to be​







delivered.​



>Channel Delivery Continuation​

(0074,140D)​

1C​

Thetreatmenttimeweightsforchannelstobedeliveredtocomplete​

Sequence​





a previously interrupted fraction.​









Required if Delivery Type (300A,00CE) is CONTINUATION.​







One or more Items shall be included in this Sequence.​



>>ReferencedChannelNumber​

(0074,1406)​

1​

The channel to be delivered, specified by the value of Channel​







Number (300A,0282) in referenced RT Plan.​



- Standard -​
