Page 146​

DICOM PS3.2 2020a - Conformance​



Description/Module​



Tag​

Remark​

>Requested Contrast Agent​



(0032,1070)​



Requested Procedure​







Reason for the Requested Procedure​



(0040,1002)​



Requested Procedure Comments​



(0040,1400)​



Imaging Service Request​







Reason for the Imaging Service Request​



(0040,2001)​



Imaging Service Request Comments​



(0040,2400)​



Requesting Service​



(0032,1033)​



Issuing Date of Imaging Service Request​



(0040,2004)​



Issuing Time of Imaging Service Request​



(0040,2005)​



Placer Order Number / Imaging Service Request​

(0040,2016)​



Filler Order Number / Imaging Service Request​

(0040,2017)​



Order entered by​



(0040,2008)​



Order Enterer's Location​



(0040,2009)​



Visit Status​







Patient's Institution Residence​



(0038,0400)​



Visit Admission​







Referring Physician's​



(0008,0090)​



Referring Physician's Address​



(0008,0092)​



Referring Physician's Phone Numbers​



(0008,0094)​



Admitting Diagnosis Description​



(0008,1080)​



Admitting Date​



(0038,0020)​



Admitting Time​



(0038,0021)​



Patient Identification​







Issuer of Patient ID​



(0010,0021)​



Patient Demographic​







Occupation​



(0010,2180)​



Patient's Address​



(0010,1040)​



Country of Residence​



(0010,2150)​



Patient's Telephone Numbers​



(0010,2154)​



Ethnic Group​



(0010,2160)​



Patient's Religious Preference​



(0010,21F0)​



Patient Comments​



(0010,4000)​



Patient Medical​







Smoking Status​



(0010,21A0)​



Last Menstrual Date​



(0010,21D0)​



DICOMSRV returns C-FIND response statuses as specified below.​

- Standard -​





DICOM PS3.2 2020a - Conformance​

Page 147​



Table C.4.2-8. MWL C-FIND Response Status Reasons​

Service​

Further Meaning​

Error Code​

Reasons​

Status​









Success​

Matching is complete​

0000​

The response status code and meaning are logged in the job log file.​

Failure​

Out of resources​

A700​

Ifthenumberofmatchesexceedsaconfigurablemaximumthiserror​







code is returned. An error comment describing the error is also​

returned. The response status code and meaning are logged in the​ job log file.​

Identifier does not match SOP​ A900​ class​

ThisstatusisreturnediftheC-FINDrequestspecifiesqueryorReturn​ keysthatarenotspecifiedaspartoftheModalityWorklistInformation​ Model - FIND SOP Class. The response status code and meaning​ are logged in the job log file.​

Unable to process​

C001​

This status is returned due to internal errors within DICOMSRV such​





as a processing failure response on a query of the DICOMRis​





database. The response status code and meaning are logged in the​





job log file.​

Canceled​ Matchingterminatedduetocancel​FE00​

request​

Pending​ Matching is continuing​

FF00​

Matching is continuing - Current​FF01​ matchissuppliedandanyoptional​ keys were supported in the same​ matter as required keys​

This status is returned if a Cancel Request is received from the SCU​ during the processing of a Modality Worklist request. The response​ status code and meaning are logged in the job log file.​

The status is returned with each matching response. A message is​ logged for each pending response.​

The status is returned with each matching response if one or more​ optional matching or return keys are not supported for existence. A​ message is logged for each pending response.​

C.4.2.1.4.2 Activity - Configured AE Makes Procedure Step Request​

When a configured remote AE sends a conformant association request including one of the Modality Performed Procedure Step​ Presentation Contexts in the table below then DICOMSRV will accept the Association.​

C.4.2.1.4.2.1 Description and Sequencing of Activities​

As mentioned above, DICOMSRV is started at system boot time and is thus ready to process MPPS messages at any time thereafter.​ The sequencing diagram below specifies a common flow of messages related to this activity. Prior to this sequence of messages it​ is necessary that orders have been received from the HIS interface or created via DICOMRis Ordering and Scheduling application.​ Attributes from the orders and created procedures, usually queried using MWL, will be included in the MPPS messages the Modality​ sendstoDICOMSRV.KeyattributesintheMPPSN-CREATEandN-SET,specifiedbelow,areextractedandmatchedagainstvalues​ in the DICOMRis database. A match allows full update of all applicable DICOMRis database tables.​

Modality



DICOMSRV







1.Open Association

2.MPPS N-CREATE Request

3.Perform all/part of Request Procedure(s)

4.Perform matching. Update MPPS and other applicable tables

5.MPPS N-SET Request setting status to COMPLETED

6.Update MPPS and other applicable tables

7. Close Association

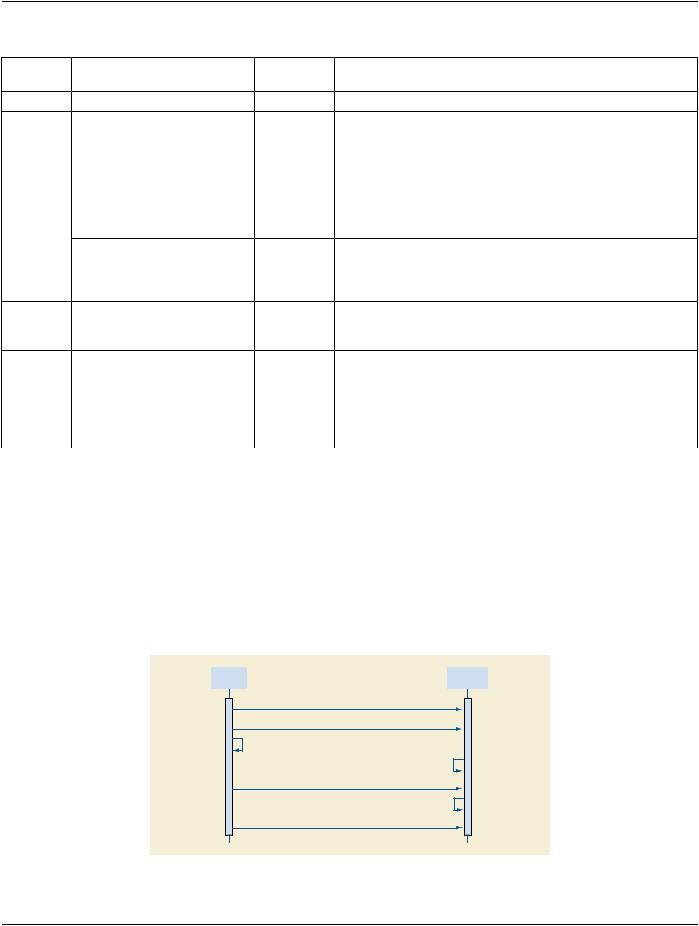

Figure C.4.2-2. Sequencing Diagram for Activity: Configured AE Makes Procedure Step Request​

- Standard -​

Page 148​

DICOM PS3.2 2020a - Conformance​

The figure above is a possible sequence of messages and events for the Configured AE Makes Procedure Step Request activity.​

1.​The Modality opens an Association to update DICOMSRV using MPPS​

2.​The Modality sends an N-CREATE Request to indicate that it is performing one or more Requested Procedures​

3.​The Modality performs all or part of the procedure(s)​

4.​DICOMSRV stores the MPPS and executes the matching algorithm described in the conformance section below. If a successful​ match is found, then updates to various tables per the N-CREATE are performed. See Table C.4.2-10 for additional detail. In the​ matching case, the procedure state of the procedure(s) referenced in the MPPS is updated if so configured​

5.​The Modality sends an N-SET setting the status of the MPPS to COMPLETED​

6.​DICOMSRV stores the MPPS. If the N-CREATE for this step matched then updates are performed as specified in step 4​

7.​The Modality closes the Association​

DICOMSRV also supports the 5 IHE Unidentified Patient Use Cases. Cases 1, 2 and 4 are transparent to the MPPS SCU and follow​ the normal flow. In case 3, the patient upon whom a given procedure must be immediately performed has been registered on the HIS​ and has a valid Patient ID but has no order specifying the applicable procedure. DICOMSRV recognizes this case when an MPPS​ N-CREATE is received with a matching Patient ID, zero-length Accession Number (0008,0050) and Requested Procedure ID​ (0040,1001). If the MPPS SCU is configured for support of IHE Trauma cases, DICOMSRV will order a procedure corresponding to​ the code contained in the Procedure Code Sequence (0008,1032), if this code is recognized, or will order a default procedure based​ on configuration. If the default procedure is ordered then a user may modify the procedure using DICOMRis Ordering and Scheduling​ application.​

In case 5, there is no existing registration or order for a patient on whom a procedure must be immediately performed. Values are​ enteredontheModalityidentifyingthepatientandprocedure.DICOMSRVrecognizesthiscasewhenanMPPSN-CREATEisreceived​ containing a Patient ID within a configured range. This range will never contain Patient IDs created in the normal flow. If the MPPS​ SCU is configured for support of IHE Trauma cases, DICOMSRV will register the patient with the Patient ID provided and will order​ a procedure as described above.​

C.4.2.1.4.2.2 Accepted Presentation Contexts​

TableC.4.2-9.AcceptablePresentationContextsforAEDICOMSRVandReal-WorldActivity"Configured​

AE Makes Procedure Step Request"​





Presentation Context Table​





Abstract Syntax​

Transfer Syntax​

Role​

Extended​

Name​

UID​

Name List​

UID List​



Negotiation​





Modality Performed​ 1.2.840.10008.3.1.2.3.3​Implicit VR Little Endian​

1.2.840.10008.1.2.1​

SCP​

None​

Procedure Step SOP​



Explicit VR Little Endian​

1.2.840.10008.1.2.1​





Class​

















DICOMSRV's preferred Transfer Syntax is Explicit VR Little Endian and this will be selected if offered.​

C.4.2.1.4.2.3 SOP Specific Conformance for MPPS SOP Class​

The table below lists all Modality Performed Procedure Step attributes, whether they may be created by N-CREATE and updated by​ N-SET and what parts of the DICOMRis database they are used to update. All MPPS messages and thus their attributes are stored​ for the configurable Purge Period described below. The 'Database Updates' column considers updates separate from the storage of​ MPPS messages. If no value is present this indicates that there are is no update to the database associated with the given element.​

Table C.4.2-10. Supported N-SET/N-CREATE Attributes for MPPS​

Attribute Name​

Tag​

N-Create​

N-Set​ Database Updates​

SOP Common Module​







Specific Character Set​

(0008,0005)​

Y​

N​

- Standard -​



DICOM PS3.2 2020a - Conformance​



Page 149​

Attribute Name​

Tag​

N-Create​

N-Set​

Database Updates​

Performed Procedure Step Relationship Module​







Scheduled Step Attribute Sequence​

(0040,0270)​

Y​

N​

Y​

>Study Instance UID​

(0020,000D)​

Y​

N​

Overwrite existing​









value if different from​









received value​

>Referenced Study Sequence​

(0008,1110)​

Y​

N​



>>Referenced SOP Class UID​

(0008,1150)​

Y​

N​



>>Referenced SOP Instance UID​

(0008,1155)​

Y​

N​



>Accession Number​

(0008,0050)​

Y​

N​



>Placer Order Number/Imaging Service​

(0040,2006)​

Y​

N​



Request​









>Filler Order Number/Imaging Service​

(0040,2007)​

Y​

N​



Request​









>Requested Procedure ID​

(0040,1001)​

Y​

N​



>Requested Procedure Description​

(0032,1060)​

Y​

N​



>Scheduled Procedure Step ID​

(0040,0009)​

Y​

N​



>Scheduled Procedure Step Description​

(0040,0007)​

Y​

N​



>Scheduled Protocol Code Sequence​

(0040,0008)​

Y​

N​



>>Code Value​

(0008,0100)​

Y​

N​



>>Coding Scheme designator​

(0008,0102)​

Y​

N​



>>Code Meaning​

(0008,0104)​

Y​

N​



Patient Name​

(0010,0010)​

Y​

N​



Patient ID​

(0010,0020)​

Y​

N​



Patient's Birth Date​

(0010,0030)​

Y​

N​



Patient's Sex​

(0010,0040)​

Y​

N​



Referenced Patient Sequence​

(0008,1120)​

Y​

N​



>Referenced SOP Class UID​

(0008,1150)​

Y​

N​



>Referenced SOP Instance UID​

(0008,1155)​

Y​

N​



Performed Procedure Step Information​









Performed Procedure Step ID​

(0040,0253)​

Y​

N​



Performed Station AE Title​

(0040,0241)​

Y​

N​



Performed Station Name​

(0040,0242)​

Y​

N​



Performed Location​

(0040,0243)​

Y​

N​



Performed Procedure Step Start Date​

(0040,0244)​

Y​

N​



Performed Procedure Step Start Time​

(0040,0245)​

Y​

N​



Performed Procedure Step Status​

(0040,0252)​

Y​

Y​



Performed Procedure Step Description​

(0040,0254)​

Y​

Y​



Performed Procedure Type Description​

(0040,0255)​

Y​

Y​



Procedure Code Sequence​

(0008,1032)​

Y​

Y​



>Code Value​

(0008,0100)​

Y​

Y​



>Coding Scheme Designator​

(0008,0102)​

Y​

Y​



>Code Meaning​

(0008,0104)​

Y​

Y​



Performed Procedure Step End Date​

(0040,0250)​

Y​

Y​



- Standard -​

Page 150​

DICOM PS3.2 2020a - Conformance​





Attribute Name​



Tag​

N-Create​

N-Set​

Database Updates​

Performed Procedure Step End Time​



(0040,0251)​

Y​

Y​



CommentsonthePerformedProcedureStep​

(0040,0280)​

Y​

Y​



Image Acquisition Results​











Modality​



(0008,0060)​

Y​

N​



Study ID​



(0020,0010)​

Y​

N​



Performed Protocol Code Sequence​



(0040,0260)​

Y​

Y​

If valued, stored with​

>Code Value​



(0008,0100)​

Y​

Y​

current and historical​



procedure records​

>Coding Scheme Designator​



(0008,0102)​

Y​

Y​





>Code Meaning​



(0008,0104)​

Y​

Y​



Performed Series Sequence​



(0040,0340)​

Y​

Y​

Y​

>Performing Physician's Name​



(0008,1050)​

Y​

Y​

Y​

>Protocol Name​



(0018,1030)​

Y​

Y​

Stored with current​











and historical tables​

>Operator's Name​



(0008,1070)​

Y​

Y​

If automatic setting of​











procedure states is​











enabled, stored in​











current and historical​











procedure tables to​











indicatewhomodified​











the state of the​











procedure​

>Series Instance UID​



(0020,000E)​

Y​

Y​



>Series Description​



(0008,103E)​

Y​

Y​



>Retrieve AE Title​



(0008,0054)​

Y​

Y​



Referenced Image Sequence​



(0008,1140)​

Y​

Y​



>>Referenced SOP Class UID​



(0008,1150)​

Y​

Y​



>>Referenced SOP Instance UID​



(0008,1155)​

Y​

Y​



>Referenced Standalone SOP Instance​



(0040,0220)​

Y​

Y​



Sequence​











>>Referenced SOP Class UID​



(0008,1150)​

Y​

Y​



>>Referenced SOP Instance UID​



(0008,1155)​

Y​

Y​



Billing and Material Management Code​











Billing Procedure Step Sequence​











>Code Value​



(0008,0100)​

Y​

Y​



>Coding Scheme Designator​



(0008,0102)​

Y​

Y​



>Code Meaning​



(0008,0104)​

Y​

Y​



Film Consumption Sequence​



(0040,0321)​

Y​

Y​



> Number of Films​



(2100,0170)​

Y​

Y​

Updates Supply and​

> Medium Type​



(2000,0030)​

Y​

Y​

Film-Procedure​



Tables​

> Film Size ID​



(2010,0050)​

Y​

Y​





Billing Supplies and Devices Sequence​



(0040,0384)​

Y​

Y​



>Billing Item Sequence​



(0040,0296)​

Y​

Y​



- Standard -​
