Library Expert Through hole Families
Warning, check with your PCB manufacturer to verify if they can meet the dimensional requirements.
Bottom only termination packages – BGA, LGA, CGA, QFN, PQFN, SON, PSON and DFN

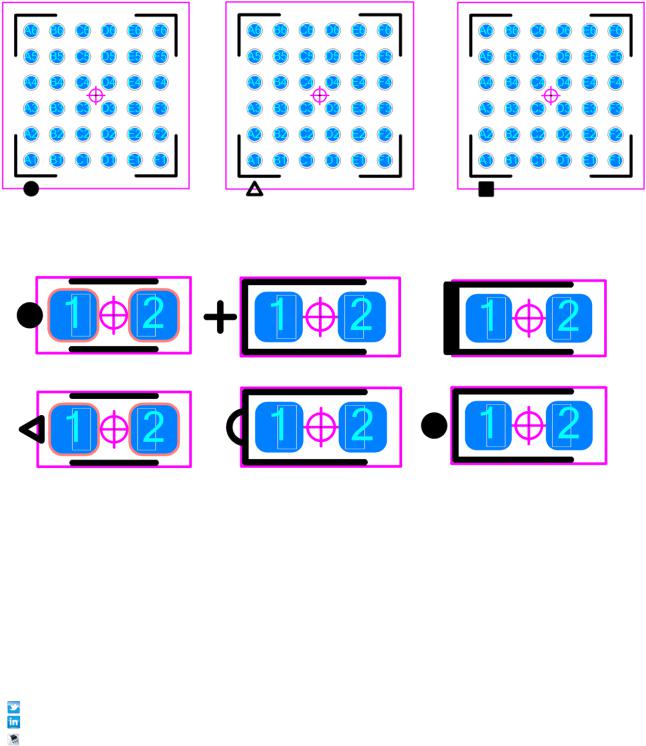

The polarity marking size should match the Terminal Width. The gap between the body legend and the polarity marker should range from 0.15 mm – 0.25 mm
Polarized chip capacitors packages.
