DISCRETE SEMICONDUCTORS

BGD802

Hybrid CATV amplifier module

Product speciﬁcation

1996 Jul 15

Supersedes data of 1996 Apr 25

File under Discrete Semiconductors, SC16

Philips Semiconductors			Product speciﬁcation


	Hybrid CATV ampliﬁer module		BGD802


FEATURES		PINNING - SOT115J2
∙	Excellent linearity
∙	Excellent linearity	PIN	DESCRIPTION
∙	Extremely low noise
∙	Extremely low noise	1	input
		1	input
∙	Excellent return loss properties	2	common
∙	Silicon nitride passivation	3	common
∙	Rugged construction	5	+VB
∙	Gold metallization ensures excellent reliability.	7	common
		8	common
APPLICATIONS		9	output

∙CATV systems operating in the 40 to 860 MHz frequency range.

handbook, halfpage

DESCRIPTION

Hybrid amplifier module in a SOT115J2 package operating with a voltage supply of 24 V (DC).

1 2 3

7 8 9

Side view

MSA319 - 1

Fig.1 Simplified outline.

QUICK REFERENCE DATA

SYMBOL

PARAMETER

CONDITIONS

MIN.

MAX.

UNIT

power gain

f = 50 MHz

f = 860 MHz

18.5

−

Itot

total current consumption (DC)

VB = 24 V

−

410

LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 134).

SYMBOL	PARAMETER	MIN.	MAX.	UNIT

VB	supply voltage	−	25	V
Vi	RF input voltage	−	65	dBmV
Tstg	storage temperature	−40	+100	°C
Tmb	operating mounting base temperature	−20	+100	°C

1996 Jul 15

Philips Semiconductors				Product speciﬁcation

Hybrid CATV ampliﬁer module				BGD802

CHARACTERISTICS
Bandwidth 40 to 860 MHz; VB = 24 V; Tcase = 35 °C; ZS = ZL = 75 Ω.

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.	UNIT

Gp	power gain	f = 50 MHz	18	19	dB
		f = 860 MHz	18.5	−	dB

SL	slope cable equivalent	f = 40 to 860 MHz	0.2	2	dB

FL	ﬂatness of frequency response	f = 40 to 860 MHz	−	±0.5	dB

S11	input return losses	f = 40 to 80 MHz	20	−	dB
		f = 80 to 160 MHz	18.5	−	dB

		f = 160 to 320 MHz	17	−	dB

		f = 320 to 640 MHz	15.5	−	dB

		f = 640 to 860 MHz	14	−	dB

S22	output return losses	f = 40 to 80 MHz	20	−	dB
		f = 80 to 160 MHz	18.5	−	dB

		f = 160 to 320 MHz	17	−	dB

		f = 320 to 640 MHz	15.5	−	dB

		f = 640 to 860 MHz	14	−	dB

S21	phase response	f = 50 MHz	−45	+45	deg
CTB	composite triple beat	49 channels ﬂat;	−	−61	dB
		Vo = 47 dBmV;
		measured at 859.25 MHz

Xmod	cross modulation	49 channels ﬂat;	−	−61	dB
		Vo = 47 dBmV;
		measured at 55.25 MHz

CSO	composite second order distortion	49 channels ﬂat;	−	−60	dB
		Vo = 47 dBmV;
		measured at 860.5 MHz

d2	second order distortion	note 1	−	−69	dB
Vo	output voltage	dim = −60 dB; note 2	61.5	−	dBmV
F	noise ﬁgure	f = 50 MHz	−	5.5	dB

		f = 860 MHz	−	9	dB

Itot	total current consumption (DC)	note 3	−	410	mA

Notes

1.fp = 55.25 MHz; Vp = 44 dBmV; fq = 805.25 MHz; Vq = 44 dBmV; measured at fp + fq = 860.5 MHz.

2.Measured according to DIN45004B:

fp = 851.25 MHz; Vp = Vo;

fq = 858.25 MHz; Vq = Vo −6 dB; fr = 860.25 MHz; Vr = Vo −6 dB;

measured at fp + fq − fr = 849.25 MHz.

3.The module normally operates at VB = 24 V, but is able to withstand supply transients up to 30 V.

1996 Jul 15

Philips Semiconductors				Product speciﬁcation

Hybrid CATV ampliﬁer module				BGD802

CHARACTERISTICS
Bandwidth 40 to 860 MHz; VB = 24 V; Tcase = 35 °C; ZS = ZL = 75 Ω.

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.	UNIT

Gp	power gain	f = 50 MHz	18	19	dB
		f = 860 MHz	18.5	−	dB

SL	slope cable equivalent	f = 40 to 860 MHz	0.2	2	dB

FL	ﬂatness of frequency response	f = 40 to 860 MHz	−	±0.5	dB

S11	input return losses	f = 40 to 80 MHz	20	−	dB
		f = 80 to 160 MHz	18.5	−	dB

		f = 160 to 320 MHz	17	−	dB

		f = 320 to 640 MHz	15.5	−	dB

		f = 640 to 860 MHz	14	−	dB

S22	output return losses	f = 40 to 80 MHz	20	−	dB
		f = 80 to 160 MHz	18.5	−	dB

		f = 160 to 320 MHz	17	−	dB

		f = 320 to 640 MHz	15.5	−	dB

		f = 640 to 860 MHz	14	−	dB

S21	phase response	f = 50 MHz	−45	+45	deg
CTB	composite triple beat	129 channels ﬂat;	−	−54	dB
		Vo = 44 dBmV;
		measured at 859.25 MHz

Xmod	cross modulation	129 channels ﬂat;	−	−59	dB
		Vo = 44 dBmV;
		measured at 55.25 MHz

CSO	composite second order distortion	129 channels ﬂat;	−	−56	dB
		Vo = 44 dBmV;
		measured at 860.5 MHz

d2	second order distortion	note 1	−	−69	dB
Vo	output voltage	dim = −60 dB; note 2	61.5	−	dBmV
F	noise ﬁgure	f = 50 MHz	−	5.5	dB

		f = 860 MHz	−	9	dB

Itot	total current consumption (DC)	note 3	−	410	mA

Notes

1.fp = 55.25 MHz; Vp = 44 dBmV; fq = 805.25 MHz; Vq = 44 dBmV; measured at fp + fq = 860.5 MHz.

2.Measured according to DIN45004B:

fp = 851.25 MHz; Vp = Vo;

fq = 858.25 MHz; Vq = Vo −6 dB; fr = 860.25 MHz; Vr = Vo −6 dB;

measured at fp + fq − fr = 849.25 MHz.

3.The module normally operates at VB = 24 V, but is able to withstand supply transients up to 30 V.

1996 Jul 15

Philips Semiconductors	Product speciﬁcation

Hybrid CATV ampliﬁer module	BGD802

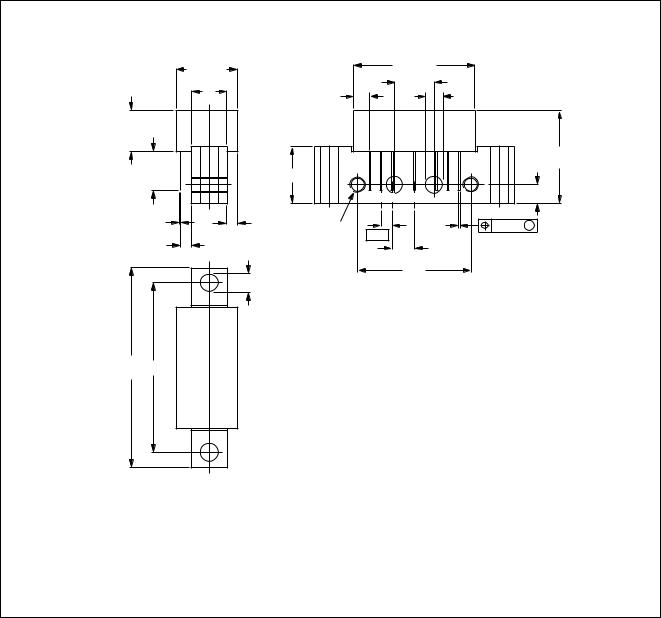

PACKAGE OUTLINE

andbook, full pagewidth	13.8 max			27.2 max
	13.8 max
	8	3.8		10.2		4.15
	8	3.8				4.15
		max				3.85
	9.2
	max
							20.8
	8.8						max
	8.8
	min	12.7
		1	2 3	5	7 8	9	4.2
		1	2 3	5	7 8	9

0.25	UNC 6-32	(1)	0.51(2)	0.25 M
2.4 max	UNC 6-32	(1)	0.38	0.25 M
2.54		2.54
2.54		(5.08)
		(5.08)
	4.15	25.4		MSA318 - 1
	4.15
	3.85

44.8 max 38.1

Dimensions in mm.

(1)Screw 6-32 UNC-2A available on request.

(2)Leads gold plated.

Fig.2 SOT115J2.

1996 Jul 15
